• Model NO.：BK-ST134
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Name：Leakage Tester
• Brand：Biobase
• Vacumn Degree Range：-90~0kpa
• Size：400*620*600
• Vacumn Precision：0.1kpa
• Color：White
• Gross Weight：21kg
• Packing：Wooden Case
• Power Supply：AC220,110V 10%
• Resolution：0.1kpa
• Transport Package：Carton
• Specification：400*620*600mm
• Trademark：BIOBASE
• Origin：China
• Production Capacity：200,Month

Model

BK-ST134

Vacuum Degree Range

-90~0kPa

Vacuum Precision

0.1kPa

Resolution

0.1kPa

Indication ofChanges

≤1%

VacuumChamberSize

Φ270mm×210 mm( standard)

Note: customization is available for other sizes

OriginalAirPressure

0.7MPa(Owned)

OriginalAirConnection

Φ6Polyurethane pipes

ControlMethod

Microcomputer control, automatic test procedure

Display

LCD display

Dimensions

Sealedvacuumchamber:Φ300*350 mm

Operation Host (W*D*H): 320*420*120mm

EnvironmentalConditions

RT(20±10)ºC,

Relative humidity<85%

PowerSupply

AC110 /220V±10%,50/60Hz

Optional Accessories

Vacuum Chamber:Φ360 mm x 585 mm (H)

Vacuum Chamber:Φ460 mm x 330 mm (H)

JW-032B Air Compressor

Package Size(W*D*H)

400*620*600mm

Net Weight/ Gross Weight

16kg/21kg

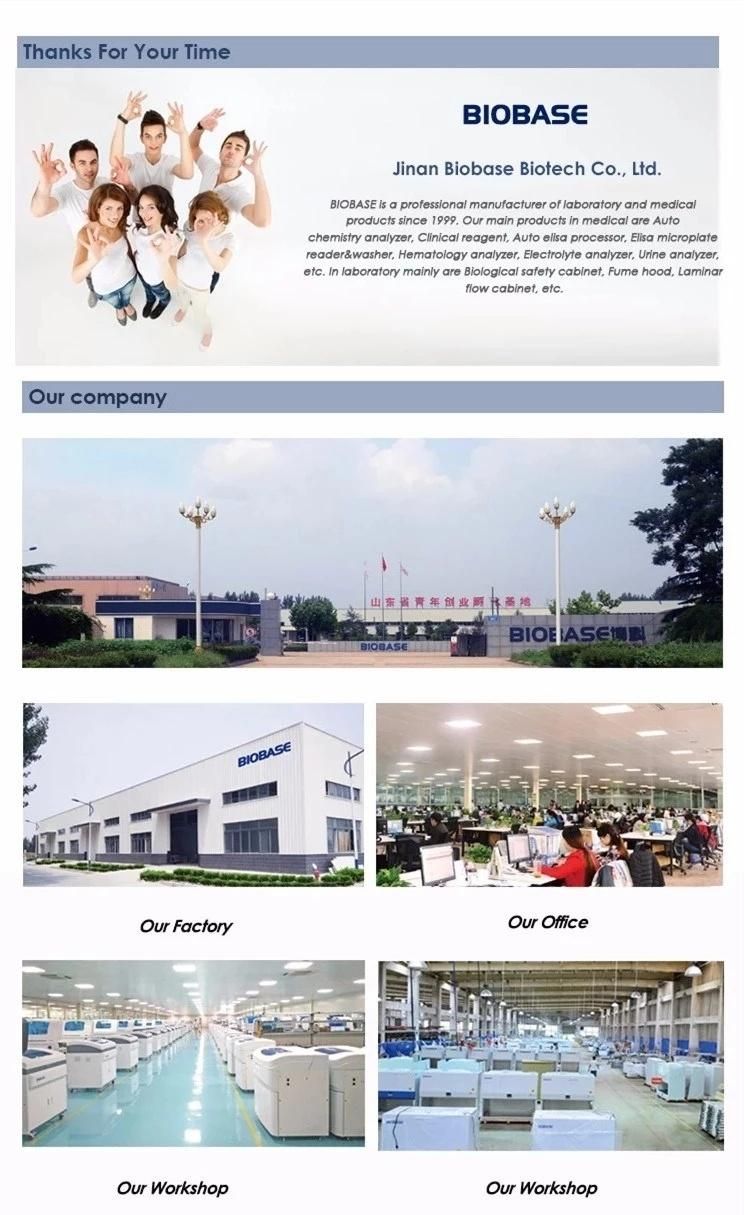

Our  company
