• Model NO.：STYE-2000C, STYE-3000C
• Control：Computer Control
• Weight：1000-2000Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Display Way：PC Software
• Add Pressure Way：Electric Hydraulic
• Test Specimen：Concrete, Cement, Stone and So on
• Operating：Motor Drive Screw Post
• Transport Package：Standard Wooden Packing
• Specification：1120*620*2000mm
• Trademark：YF
• Origin：China
• HS Code：9031809090
• Production Capacity：50000piece,Year

Basic Info.

Model NO. STYE-2000C, STYE-3000C Control Computer Control Weight 1000-2000Kg Power Source AC220V Oil Cylinder Position Under Display Way PC Software Add Pressure Way Electric Hydraulic Test Specimen Concrete, Cement, Stone and So on Operating Motor Drive Screw Post Transport Package Standard Wooden Packing Specification 1120*620*2000mm Trademark YF Origin China HS Code 9031809090 Production Capacity 50000piece/Year

Product Description

Products description
Use

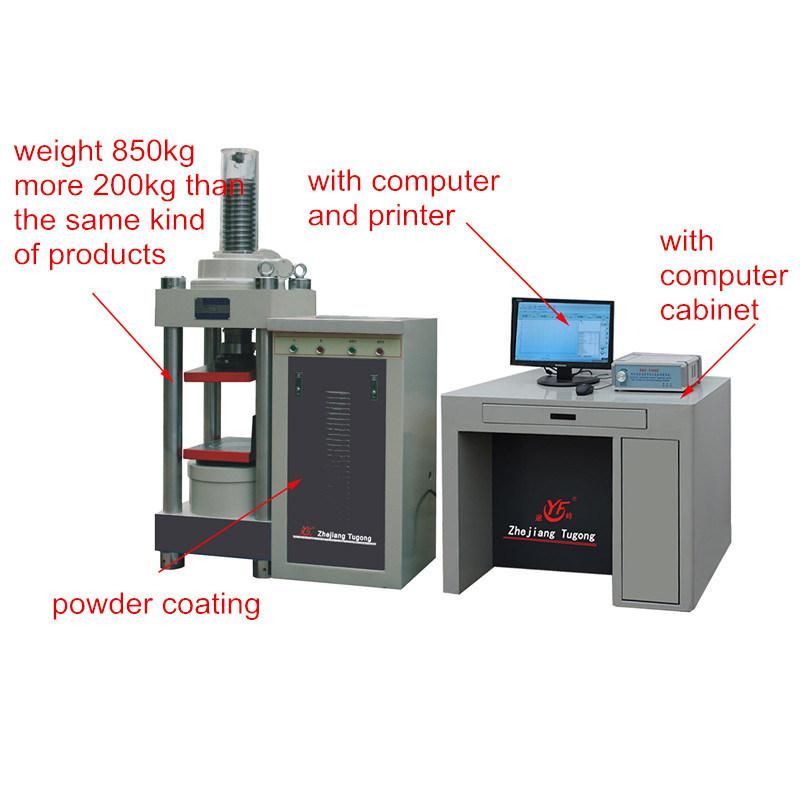

Computer controlled hydraulic servo compression testing machine is mainly used  to test compression strength of cement, concrete, rocks, brick. they also can perform shear test, anti-break test and elastic modules test of concrete with special compression fixtures and measurement assembly.
Feature
Space adjusting, & test processes could be controlled by the software and the test result could be transferred to the software in the computer for further analysis. It is the most advanced series in hydraulic compression testing machines. It is widely used in different steel works, engineering areas, quality control department, Universities and institutes as well as other areas and works.
Fully computer controlled testing process. Stable and reliable high intensity structure load frame. Real time display software will provide accurate track of testing process. Powerful multifunctional control software will provide more testing methods and standards.Overload protection will secure operators.Safe and reliable software interface and control. It is very easy to prevent mistake operation during the test stage which will cause damage to the testing machine. Easy and fast to edit customized test reports in EXCEL format.


STYE-2000C
Specification:
Max. testing power: 2000KN
Measuring range: 0-2000KN
Relative indication error: ±1%
Max. distance between the up and down
bearing plates: 310mm
Max. piston stroke: 90mm
Diameter of the piston: Φ250mm
Rated pressure of the hydraulic pump: 40Mpa
Power: AC220V±5% 50Hz
Outside size: 950×400×1560mm
Max. piston lift speed: 50mm/min.
Piston free back speed: 20mm/min.
Net weight: about 850KGS
Noise: ≤80Db
STYE-3000C
Specification:
Max. testing power: 3000KN
Measuring range: 0-3000KN
Relative indication error: ±1%
Max. distance between the up and down
bearing plates: 380mm
Max. piston stroke: 90mm
Diameter of the piston: Φ310mm
Rated pressure of the hydraulic pump: 40Mpa
Power: AC220V±5% 50Hz
Outside size: 1120X620X2000mm
Max. piston lift speed: 50mm/min.
Piston free back speed: 20mm/min.
Net weight: about 1650KGS
Noise: ≤80Db Why choose us:

a.Company information:

1.Established in 1981,has great-leap-forward development in the past thirty years.Company cover an area of 26,680 square meters, have 14 modernized standard workshops

2. We have 32 kinds of products won the Licence for manufacturing measuring instrument; 48 kinds of products won National Industrial Product Manufacture Licence;39 kinds of product won National Patent.

3.We export products to more than 80 countries in the world such as Europe, America, Australia etc. We are authorized as "AAA Credit Business" by Agricultural Bank of China.

4.We won ISO9001:2008 quality management system certification, ISO14001:2004 environment management system certification, France BV International quality certification, European Union CE certification.

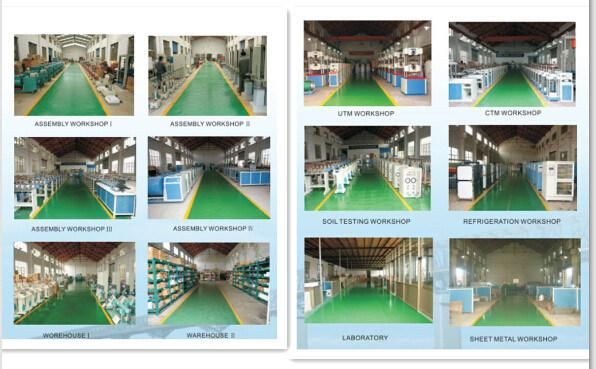

b.Neat and clean workshop

c. Good quality control

d.Competitive price, save your money.
e.Full range products, offer you one-stop purchase, save your time, save your delivery cost.


Packing & shipping

Packing Material: Plywood Case meeting export long transport requirement.

Packing Method: Horizontal Packing to saving more shipping cost.

Shipping : within 5-10 days after receive 100% payment .

Shipping way: shipped by sea or Air is available.

FAQ

What's the  delivery time?

10-20 working days after receiving full payment.Large machine need 20working days,small machine need 5-10 working days.

What's your payment terms?

T/T in advance,L/C,Western Union.

What's your trade terms?

We accept FOB,CIF,EXW,CNF and LC ect.

What's your services(warranty)?

We will send the user manual together with products,and warranty is 12 months.
