• Model NO.：STYE-2000, STYE-1000
• Control：Manual Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Display Way：Digital Display
• Specimen：for Concrete, Cement, Brick
• Loading Style：Manual Delivery Oil Valve and Back Oil Valve
• Certificate：ISO9001:2000
• Electric Safety：Ce Certificate
• Standard：ASTM E4
• Result：Data Window
• Special：Can Add Safety Cover
• Transport Package：Standard Wooden Packing
• Specification：950*400*1160mm
• Trademark：YF
• Origin：China
• HS Code：9031809090
• Production Capacity：50000piece,Year

Basic Info.

Model NO. STYE-2000, STYE-1000 Control Manual Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Under Display Way Digital Display Specimen for Concrete, Cement, Brick Loading Style Manual Delivery Oil Valve and Back Oil Valve Certificate ISO9001:2000 Electric Safety Ce Certificate Standard ASTM E4 Result Data Window Special Can Add Safety Cover Transport Package Standard Wooden Packing Specification 950*400*1160mm Trademark YF Origin China HS Code 9031809090 Production Capacity 50000piece/Year

Product Description

Products description
Use:

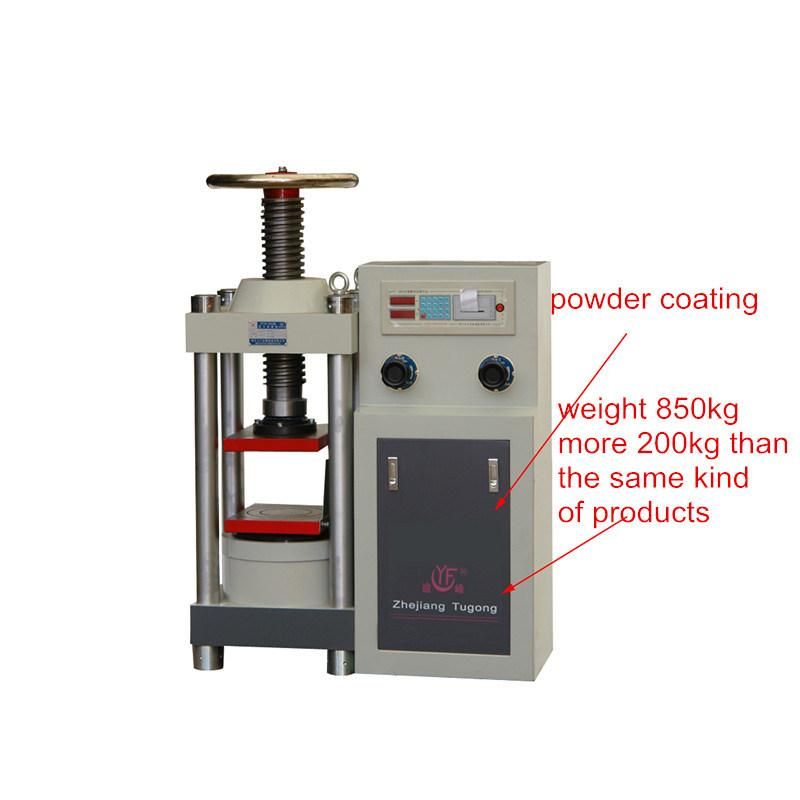

    STYE-2000 Digital Display Hydraulic Compression Testing Machine is designed to conduct compression and crushing strength tests on Containers, Concrete cubes &cylinders, hollow blocks and various other materials in accordance with International standard. The machine is
electro-hydraulically operated. The Control Panel comprises of Hydraulic Power Pack, Digital Readout System, Operating Switches, Load Control Valves, Output Print-out of Test Data.
Feature:
Efficient hydraulic power packsEconomic machines ideal for site use
Designed to meet the need for a simple, economic and reliable means of testing concrete.The dimensions of the frame allow the testing of cylinders up to 320 mm long x 160 mm diameter, and cubes200mm,150mm or 100 mm square, 50 mm/2 in. square mortar cubes, 40 x 40 x 160 mm mortar and any arbitrary size.Digital readout is a microprocessor controlled instrument which is fitted as standard to all digital machines inthe range. Calibrated accuracy and repeatability is better than 1% over the upper 90% of the working range.


STYE-1000
Max. testing power: 1000KN
Measuring range: 0-1000KN
Relative indication error: ±1%
Testing power Precision:grade1,grade0.5
Size of the bearing plate: 300×250mm
Max. distance between the up and down bearing
plates: 310mm
Max. piston stroke: 90mm
Rated pressure of the hydraulic pump: 40Mpa
Power: AC220V±5% 50Hz
Outside size: 900×400×1090mm
Max. piston lift speed: 50mm/min.
Piston free back speed: 20mm/min.
Net weight: about 650KGS
Noise: ≤80Db

STYE-2000
Max. testing power: 2000KN
Measuring range: 0-2000KN
Relative indication error: ±1%
Testing power Precision:grade1
Size of the bearing plate: 320×260mm
Max. distance between the up and down bearing
plates: 310mm
Max. piston stroke: 90mm
Rated pressure of the hydraulic pump: 40Mpa
Power: AC220V±5% 50Hz
Outside size: 950×400×1160mm
Max. piston lift speed: 50mm/min.
Piston free back speed: 20mm/min.
Net weight: about 850KGS
Noise: ≤80Db
Why choose us:

a.Company information:

1.Established in 1981,has great-leap-forward development in the past thirty years.Company cover an area of 26,680 square meters, have 14 modernized standard workshops

2. We have 32 kinds of products won the Licence for manufacturing measuring instrument; 48 kinds of products won National Industrial Product Manufacture Licence;39 kinds of product won National Patent.

3.We export products to more than 80 countries in the world such as Europe, America, Australia etc. We are authorized as "AAA Credit Business" by Agricultural Bank of China.

4.We won ISO9001:2008 quality management system certification, ISO14001:2004 environment management system certification, France BV International quality certification, European Union CE certification.

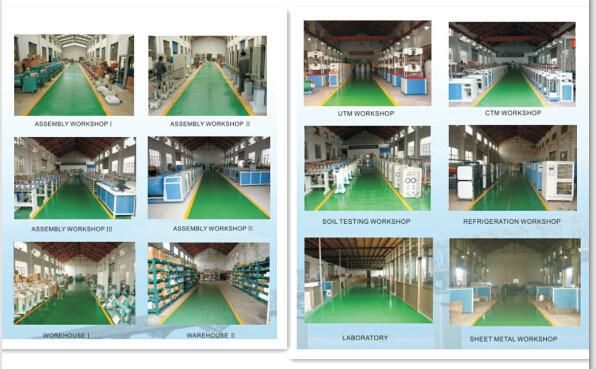

b.Neat and clean workshop

c. Good quality control

d.Competitive price, save your money.
e.Full range products, offer you one-stop purchase, save your time, save your delivery cost.


Packing & shipping

Packing Material: Plywood Case meeting export long transport requirement.

Packing Method: Horizontal Packing to saving more shipping cost.

Shipping : within 5-10 days after receive 100% payment .

Shipping way: shipped by sea or Air is available.

FAQ

What's the  delivery time?

10-20 working days after receiving full payment.Large machine need 20working days,small machine need 5-10 working days.

What's your payment terms?

T/T in advance,L/C,Western Union.

What's your trade terms?

We accept FOB,CIF,EXW,CNF and LC ect.

What's your services(warranty)?

We will send the user manual together with products,and warranty is 12 months.
