Triaxial Test Set (10KN Light-duty, 30KN midium Pressure, 80KN High Pressure)

Zhejiang Tugong Instrument Co., Ltd.
  • Type：Triaxial Test
  • Maxcapacity：10kn
  • Display：Needle
  • Control：Manual Control
  • Power Source：AC220V
  • Test Specimen：Soil

Base Info

  • Model NO.：STSZ-1Q, STSZ-2, STSZ-8
  • Standard：BS 1377:7, 8 , ASTM D2850, D4767, NF P94 070, P94
  • Certificate：ISO9001; ISO14001
  • Electric Safety：Ce Certificate
  • Transport Package：Standard Wooden Packing
  • Trademark：YF
  • Origin：China
  • HS Code：9031809090
  • Production Capacity：5000piece,Year

Description

Basic Info.

Model NO. STSZ-1Q, STSZ-2, STSZ-8 Standard BS 1377:7, 8 / ASTM D2850, D4767, NF P94 070, P94 Certificate ISO9001; ISO14001 Electric Safety Ce Certificate Transport Package Standard Wooden Packing Trademark YF Origin China HS Code 9031809090 Production Capacity 5000piece/Year

Product Description

Products description

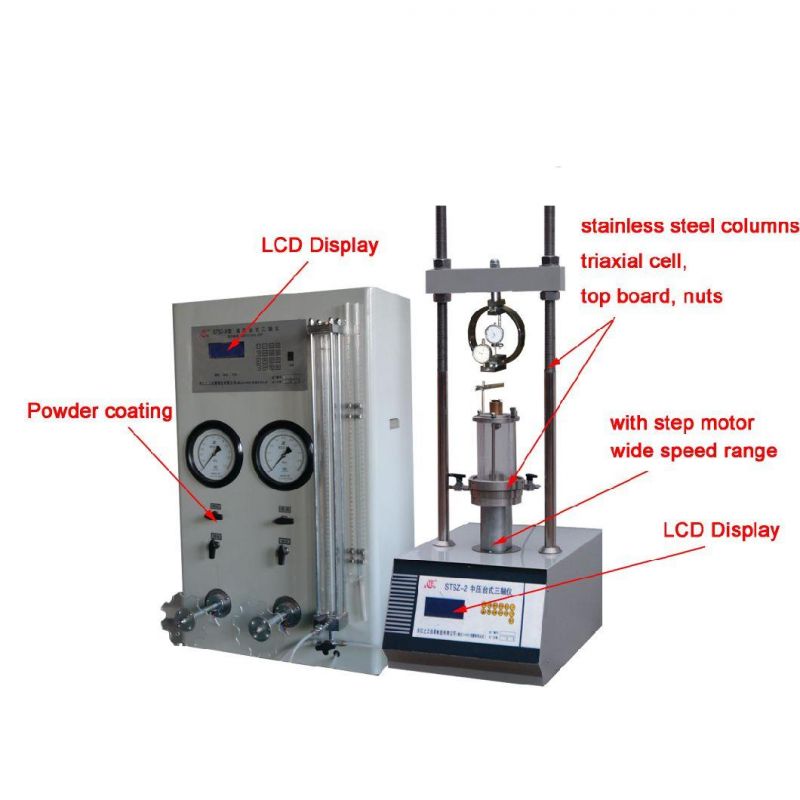

STSZ-1Q 10KN Light-duty Triaxial Test Set
Triaxial Test Set (10KN Light-duty, 30KN midium Pressure, 80KN High Pressure)
Application: to measure soil shearing strength, thus analysizing soil stability and providing data for construction projects. Perform UU, CU and CD triaxial tests.
Technical parameters:
1. Specimen size: 39.1(Dia)×80mm
2. Max. axial load: 10KN
3. Lift speed range(mm/min): 0.003,0.006,0.008,0.012,0.020,0.030,0.040,0.050,0.060,0.070, 0.080,0.090,0.100,0.200,0.300,0.400,0.500, 0.600,0.700,0.800,0.900,1.000,3.000;
4. Max. stroke: 35mm
5. Max. confining pressure: 1Mpa
6. Max. back pressure: 0.6Mpa
7. Pore water pressure:0-1Mpa
8. Volume change range:0-50ml, min. division 0.1ml
9. Axial displacement range: 0-30mm

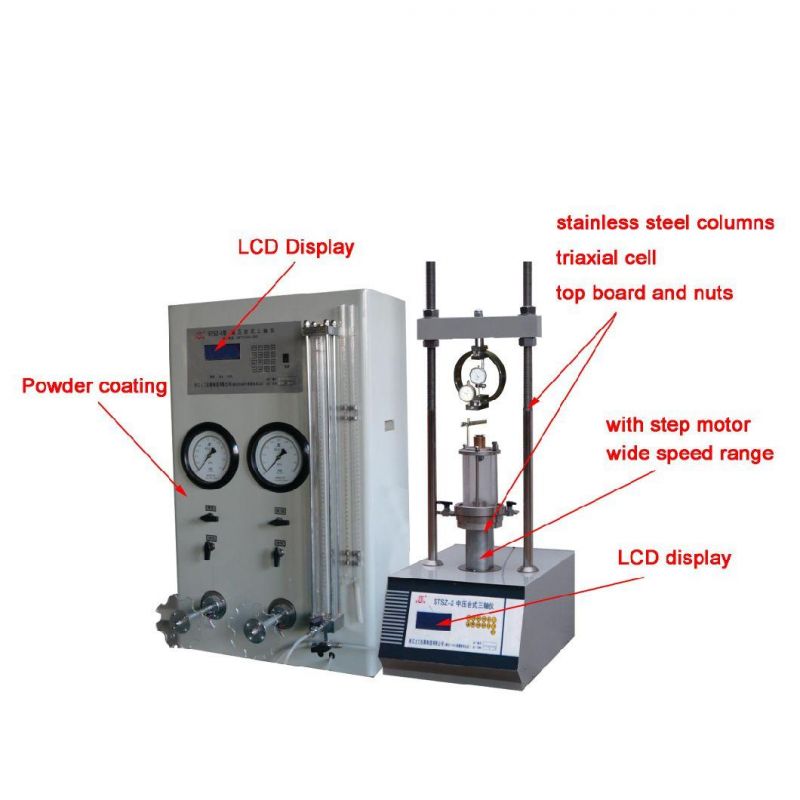

STSZ-2 30KN midium Pressure Triaxial Test Set
Triaxial Test Set (10KN Light-duty, 30KN midium Pressure, 80KN High Pressure)Application: Applied to measure the strength and deformation characteristics of the soil specimen.
Perform unconsolidated undrained shear test(UU), consolidated unstrained shear test(CU) and consolidated drained shear test(CD).
Technical parameters:
1. Specimen size:Φ39.1×80mm,Φ61.8×125mm
2. Axial load:30kN
3. Lift speed range(mm/min): 0.003~4.800
4. Max. Stroke: 50mm
5. Max. confining pressure: 2.5MPa
6. Max. back pressure: 1MPa
7. Pore water pressure: 0-2MPa
8. Volume change range: 0-50ml
9. Min. division: 0.1ml
10. Axial displacement range: 0-30mm
11. Displacement rate: 0.001-5mm/min
STSZ-8 80KN High Pressure Triaxial Test Set
Triaxial Test Set (10KN Light-duty, 30KN midium Pressure, 80KN High Pressure)
Application: determine the strength and deformation characteristics of the soil specimen. Perform unconsolidated-undrained shear test(UU), consolidated-unstrained shear test(CU) and
consolidated-drained shear test(CD).
Technical parameters:
1. Specimen size: Φ61.8×125,Φ101×220mm
2. Axial load:80KN
3. Lift speed range(mm/min): 003~4.800
4. Max. Stroke: 50mm
5. Max. confining pressure: 2.5MPa
6. Max. back pressure: 1MPa
7. Pore water pressure: 0-2MPa
8. Volume change range: 0-50ml
9. Min. division: 0.1ml
10. Axial displacement range: 0-30mm
 Why choose us:

a.Company information:

1.Established in 1981,has great-leap-forward development in the past thirty years.Company cover an area of 26,680 square meters, have 14 modernized standard workshops

2. We have 32 kinds of products won the Licence for manufacturing measuring instrument; 48 kinds of products won National Industrial Product Manufacture Licence;39 kinds of product won National Patent.

3.We export products to more than 80 countries in the world such as Europe, America, Australia etc. We are authorized as "AAA Credit Business" by Agricultural Bank of China.

4.We won ISO9001:2008 quality management system certification, ISO14001:2004 environment management system certification, France BV International quality certification, European Union CE certification.



b.Neat and clean workshop
Triaxial Test Set (10KN Light-duty, 30KN midium Pressure, 80KN High Pressure)
c. Good quality control
Triaxial Test Set (10KN Light-duty, 30KN midium Pressure, 80KN High Pressure)
d.Competitive price, save your money.
e.Full range products, offer you one-stop purchase, save your time, save your delivery cost.
  Triaxial Test Set (10KN Light-duty, 30KN midium Pressure, 80KN High Pressure)

Packing & shipping

Packing Material: Plywood Case meeting export long transport requirement.

Packing Method: Horizontal Packing to saving more shipping cost.

Shipping : within 5-10 days after receive 100% payment .

Shipping way: shipped by sea or Air is available.


FAQ

What's the  delivery time?

10-20 working days after receiving full payment.Large machine need 20working days,small machine need 5-10 working days.

What's your payment terms?

T/T in advance,L/C,Western Union.

What's your trade terms?

We accept FOB,CIF,EXW,CNF and LC ect.

What's your services(warranty)?

We will send the user manual together with products,and warranty is 12 months.
