• Model NO.：XB-OTS-800P
• Power：Electronic
• Material：SUS 304 Stainless Steel
• Transport Package：Standard Strong Wood Case
• Specification：W*H*D800*800*800mm(Customized)
• Trademark：OTS
• Origin：Guangdong, China (Mainland)
• HS Code：9031200000
• Production Capacity：268 Set,Month

ModelXB-OTS-800PXB-OTS-1000PInternal Dim.W×H×D(mm)800×800×8001000×1000×1000External Dim.W×H×D(mm)1250×1800×11001750×1850×1300Water Temp.NormalNormalSpray TypeTotal Water
 Flow
(L/min)R11.8IP×1With in 1~1.5mm/min(In drip box)R23.2IP×2With in 3~3.5mm/min(In drip box)S124.5IP×3angle±600,R:400mm,1.1L/minS239.2IP×4angle±1800,R:400mm,1.8L/minPressure of
spray nozzle
(kgf/cm*2)R10.11.Flow rate of the water=0.07L/min2.1P×3,Radius:400mm,16Number or openholes=16,total water flow:1:1L/min.R20.33.1P×4,Radius:400mm,25Number or openS11holes=25,total water flow:1:8L/min.S23*Radius:200mm,R400mm.(For 1P×3,1P×4 only)(RPM)Test Specimen Frame17RMP1RPMSpray Nozzle Rotation Speed23RPMPromote the pipe on both sides of the vertical line of 30 °
each time back and forth about four seconds to promoteSwing 60 ° from vertical for 4 seconds at one timePromote the pipe on both sides of the vertical line of 180 °
for about 12 seconds to promote one roundSwing 180 ° from vertical for 12 seconds at one time  MaterialInteriorSUS#304ExteriorOther ComponentsChamber lamp.WiperChamber lamp.Wiper,casters with Adjusterscasters with AdjustersPower Source(K.W.)AC 1Ψ 220V 60/50Hz 4KW

Use:
    Waterproof test system is according to IEC60529, IEC60598, IEC60335 and IEC 60034-5:2000. The IP-X includes the following test grades: IPX1, IPX2, IPX3, IPX4, IPX5, IPX6, IPX7 and IPX8 (Refer to page 51 of IEC60529). It is widely used in the authentication test organization for the products such as electrical & electronic products such as LED luminaires as well as in the relevant quality control department for the waterproof detection of the enclosures protection grades.

Certificate:

Global safety design, use our chambers safely and with peace of mind for many years to come.

We deliver chambers that conform to international safety standards.

Our chambers conform to ISO risk assessment as well as global safety design electrical safety standards such as CE marking and EMC directive.

Packing & Shipping

Packaging Details:Strong wooden case

Delivery Detail: 20 days after getting the payment

Our Services:

We are here to help you. Services available:

Replacement manuals

• Consumables and replacement parts
• On-site maintenance and repair
• Warranty support
• Over-the-phone service support and advice

If you have an OTS chamber  , we will do our best to help you in whatever way we can.

 Manuals: PDF files of manuals for current models are available free. Please contact us to request a copy. Older and printed copies at additional charge.

• Service repair:  We prefer you contact us direct at the factory with any problems you may be experiencing.  We help diagnose the problem, arrange for any needed parts, and schedule a technician to do the repairs.  Rarely can a local contractor get all that done for you as quickly as we can.  We also guarantee the work .

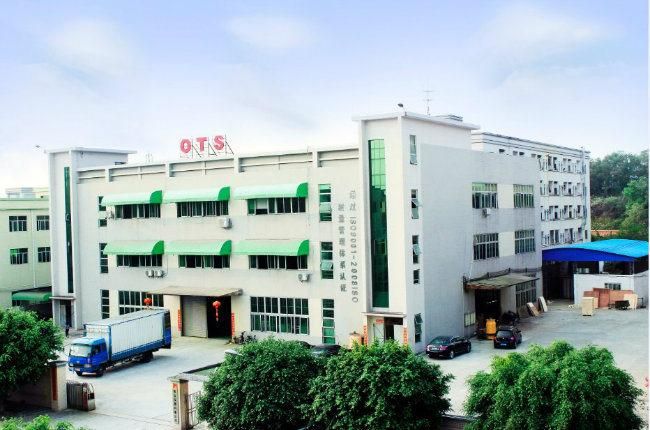

Our Company

OTS (Overall Testing System)

     Was established in 1978, with 35 years' history

     With 30,000 square meter salable production base and 120 employees

      Is one of the leading companies solely dedicated to manufacture of

     Environmental Simulation Test Chambers ,Physical Testing Equipment .

 (such as  constant temperature and humidity chambers, environmental chambers, climatic test chambers, rain and dust test chambers,thermal shock test chambers,fast change rate chambers, salt spray chamber,UV test chambers,walk in test chambers and other special customized test chambers  ; tensile testing machine, vibration test machine ,carton compression testing machines, bursting strength testing machine etc.) ..

     OTS has the equipment and expertise, with own R&D and consultant team, to meet and exceed your testing requirement. with offices in unrivaled quality advantage, dynamic management team with superb manufacturing process,also the quality with the world norms: ISO , ASTM, DIN, EN, GB, BS, JIS, ANSI, UL,CE, TAPPI, AATCC, IEC, VDE...

FAQ:

Q1 :  Can you customize the product?

   A:   Yes, we can customize any products according to requirements.

Q2 :  How to choose the most suitable products?

   A:   Our professional team will give you the best suggestion,just be  patiently to tell us the information about the parameters your required.

 Q3 :  Can you arrange installations and commissioning in our lab?

   A:   Firstly, for standard chamber we had 3-5 days commissioning before shipping , you just need link power in your lab, then can start to operate

     Secondly; we had detailed operation manual with chamber , any problems you can find and solve in it
      Thirdly, some of customized chambers we should to install and teach your team to operate .

If you want to know more information...

Please leave a message below and click " SEND "

Thanks for your time and attention~Thank you!
