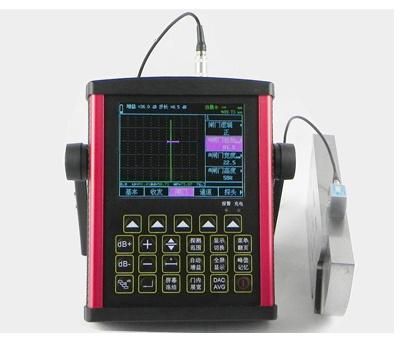

Hst-650 Digital Ultrasonic Flaw Detector
Jinan Kason Testing Equipment Co., Ltd.- After-sales Service：24 Hours Technical Supply
- Warranty：12 Months
- Vertical Linear Error：≤ 2.5%
- Channels：100 Channels
- Range：(0 ~ 9999) mm
- Bandwidth：(0.2 ~ 20) MHz
Base Info
- Model NO.：HST-650
- Material Velocity：(300 ~ 15000) M , S
- Dynamic Range：≥ 36dB
- Noise Level：≤ 8%
- Resolution：> 40dB (5p14)
- Horizontal Linear Error：≤ 0.1%
- Transport Package：Standard Export Wooden Case
- Specification：Wood carton
- Trademark：HST, Customers
- Origin：Jinan
Description
Detection range
0-9999mm
Working frequency
0.2mhz ~ 15MHz
Sound speed range
1000m / S ~ 9999m / S
Gain range
0dB ~ 110dB
Sampling frequency
100MHz
Display delay
- 20 μ s to + 3400 μ s
Probe bias
0 μ s ~ 99.99 μ s
Electric noise level
≤ 10%
Sensitivity margin
> 62db
Resolution
> 40dB (5p14)
Linear inhibition
0-80% (Digital inhibition)
Vertical linear error
≤ 3%
Horizontal linear error
≤ 0.1%
Dynamic range
≥ 32dB
Battery
6 × 3.7V (lithium battery)
Power supply
8.4v
Ambient temperature
- 20 ºC ~ 50 ºC
Ambient humidity
20% - 90% RH
Size
23cm × 17cm × 5.5cm
Weight
1.56kg (including leather cover)
