• Model NO.：PHQ-5F
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Length：1100 mm
• Width：950 mm
• Height：1350 mm
• Gross Weight：450 Kg
• Certificate：CE, ISO, SGS, BV.
• Package：Fumigated Wooden Case
• Delivery：25 Days on Water
• Transport Package：Fumigated Wood Box
• Specification：ISO 9001: 2008 CE SGS
• Trademark：JP
• Origin：Shanghai China
• HS Code：9031110009
• Production Capacity：1000 Set,Sets Per Month Negotiation

Basic Info.

Model NO. PHQ-5F Accuracy Grade 1 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Under Length 1100 mm Width 950 mm Height 1350 mm Gross Weight 450 Kg Certificate CE, ISO, SGS, BV. Package Fumigated Wooden Case Delivery 25 Days on Water Transport Package Fumigated Wood Box Specification ISO 9001: 2008 CE SGS Trademark JP Origin Shanghai China HS Code 9031110009 Production Capacity 1000 Set/Sets Per Month Negotiation

Product Description

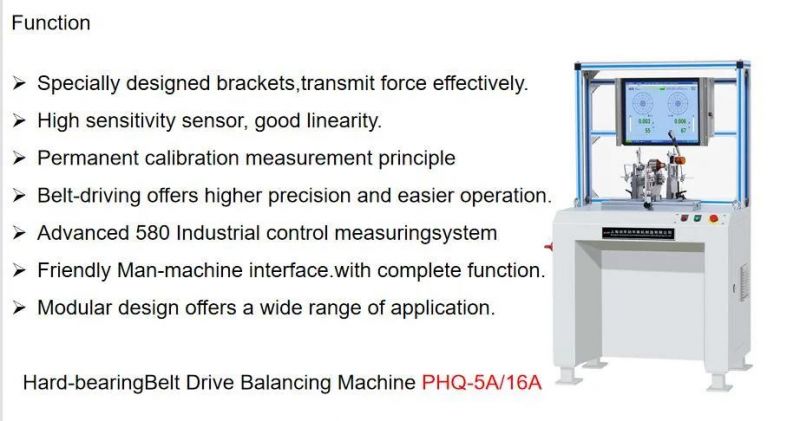

Production Description:

Specially designed brackets transmit mechanical force with low vibration damping
Durable and reliable sensor possesses good linearity
Permanent calibration brings high accuracy with a permission of large initial unbalance amount
Belt-driving offers higher precision and easier operation
Advanced electrical measuring system and friendly man-machine interface
Modular design offers a wide range of application

Range of Application:

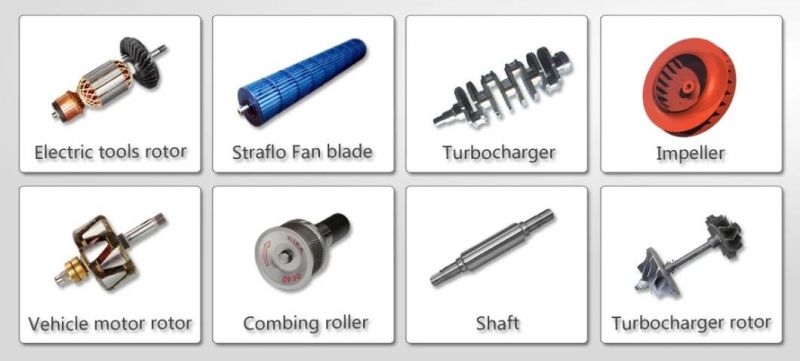

This balancing machine is widely used in balancing rotatable bodies, such as kinds of small-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool, textile machinery, tool, spindle, etc...Driven by Nylon belt, equipped with Variable speed motor to drive. Which ensures high quality balancing and precision. Quick booting, easy operation. And high efficiency.

Special Features:

The measuring unit employs JP-580B Electrical Measuring unit is a system of top function and precisionIt can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer mainboard which equiped with 15-inch LCD screen and 1G Memory, Electric board 4G, Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.

Production Parameters:

Technical data at a glance	PHQ-5A
Max Mass of Workpiece (kg)	5
Max Diameter of Workpiece (mm)	300
Distance between Two Support Bearings (mm)	60-400
Journal Diameter Scope of Workpiece (mm)	5~40
Diameter Scope of Driving Belt (mm)	15~150
Rotation Speed when the Diameter of Driving Belt is 100mm (r/min)	~1470
Motor Power (kw)	0.23DC Stepless speed regulation
Min Achievable Residual Unbalance Amount (emar)	≤ 0.3g. mm/kg

After Sale Service:
Professional engineer and application specialists respond to your requests efficiently
Online via SKYPE MSN; Also through mail, voice phone message and fax if network is not accessible for customer
Follow up the case, record the entire process. Solution will be provide with 24 hours
Meanwhile, the problem complaint will be reported to QC department
QC will find defect from which department, who is in charge to identify responsibility
Collecting and record customer respond, suggestion, requirement

Warranty period:
Life-time warranty. Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment. After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.

About Us:

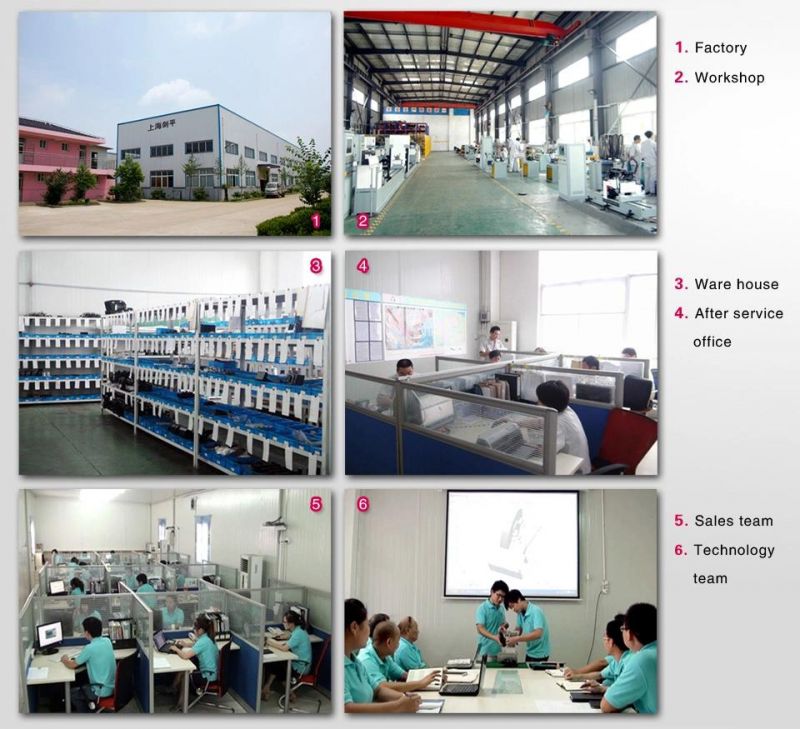

Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd. Is a professional manufacturer of dynamic balancing machine, which is high-tech technology enterprises of Optical-electro-mechanical Integration,

There are ten series and more than 40 models of balancing machines, including belt drive balancing machine, universal joint drive balancing machine, vertical balancing machine, cross flow fan blade balancing machine, drive shaft balancing machine, self-drive balancing machine and auto-positioning balancing machine, two-plane axial flow balancing machine, smart balancer, automatic balancing machine, soft bearing balancing machine, manual milling machine etc.
