• Model NO.：HD-E703
• Power Source：AC220V
• Certificate：ISO9001: 2008,SGS,Ce
• Controller：LCD Touch Screen
• Box Material：Stainless Steel
• Warranty Period：One Year
• Delivery：20 Days After Receive The Deposit
• Model：HD-50tst
• Interal Dimension：(W* H* D) 36*35* 40cm
• Outside Dimension：151* 182* 142cm
• Damper Device：Forced Air Drived Damper
• Cooling Method：Air or Water
• Transport Package：Strong Wooden Case
• Specification：ISO9001: 2008
• Trademark：Haida
• Origin：Dongguan, China
• Production Capacity：150 Sets,Month

Basic Info.

Model NO. HD-E703 Power Source AC220V Certificate ISO9001: 2008,SGS,Ce Controller LCD Touch Screen Box Material Stainless Steel Warranty Period One Year Delivery 20 Days After Receive The Deposit Model HD-50tst Interal Dimension (W* H* D) 36*35* 40cm Outside Dimension 151* 182* 142cm Damper Device Forced Air Drived Damper Cooling Method Air or Water Transport Package Strong Wooden Case Specification ISO9001: 2008 Trademark Haida Origin Dongguan, China Production Capacity 150 Sets/Month

Product Description

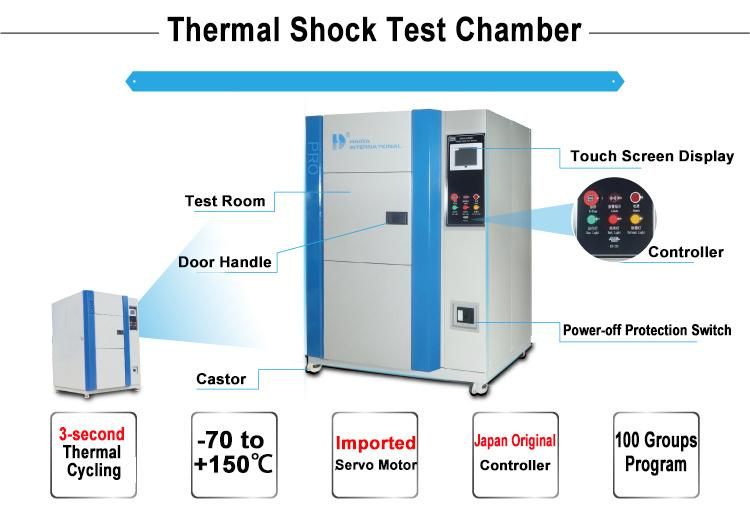

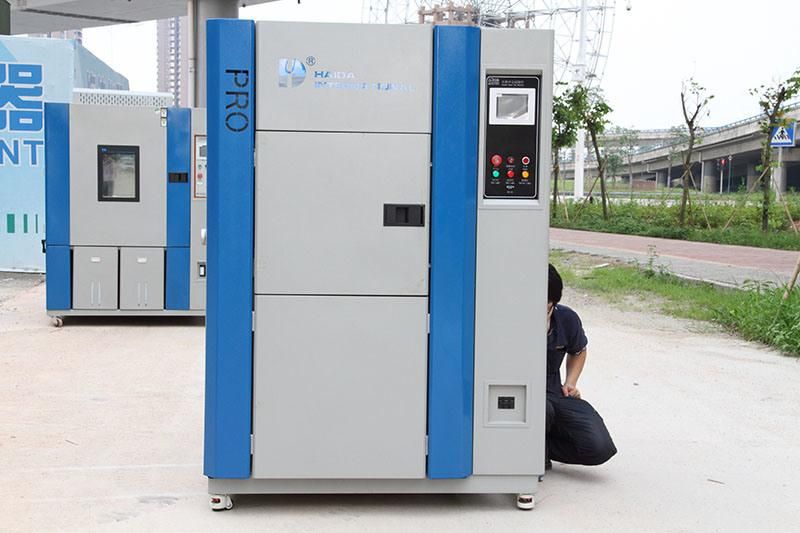

                                 Laboratory Temperature Test Cold Hot Shock Testing Equipment

Temperature Shock Tester is used to test most commercial products to see how they withstand drastic temperature changes. A thermal shock chamber will subject a product to the most extreme temperature conditions, instantly.

The purpose of testing a product under these circumstances by the thermal shock test chamber is to observe changes in the products characteristics and check for failure occurrence of different materials and thermal expansion coefficients.


Model	HD-E703
Interal Dimension	(W× H× D) 36× 35× 40cm
Outside dimension	151× 182× 142cm
Structure	Three chambers design (the hot chamber, the cold chamber and the testing chamber)
Damper device	Forced air drived damper
Interior material	SUS#304 Stainless steel plate
Exterior material	SUS#304 Stainless steel plate
Basket material	SUS#304 Stainless steel plate
Refrigeration	Cascade refrigeration system
Cooling method	Air or Water
Ambient temperature	0  ºCto 30  ºC
Preheating temperature	+60.ºC to +200.ºC
Precooling temperature	-10.ºC  to -70.ºC
H. T. Shocking	+60.ºC to +150.ºC
L. T. Shocking	-10.ºCto -65.ºC
Temperature uniformity	± 2.ºC
Simulated load ic	5.0kg
HT IN-Zone	-65.ºC to +150.ºC/5min
LT IN-Zone	+150 ºC to -65.ºC
Preheating time	30MIN
Precooling time	60MIN
Senor	T× 4
Controller	OYO-8226
Setting range	Temperature: -100.ºC to +200.ºC  TIME: OHIM to 999H/CYCLE: 0 to 9999
Resolution	Temperature: 0.1 ºC
Output mode	PID+SSR (control method)
Power(K. W)	AC380V 50HZ 18KW

Features:

1. Perfect appearance and easy to operate.
2. Japan LCD English microcomputer temperature controller, with high memory capacity, can save 100 programs, max 9999 cycles, each cycle max time 999hrs.
3. Three chamber structures, high temperature chamber, low temperature chamber and test chamber, control automatically, stay and switch time adjustable.
4. Perfect protection alarm functions: short-circuits, Leakage, over temperature of work chamber; compressor over pressure, over load, short water…
5. Control interface will display alarm reason and provide check methods, machine has emergency stop button.
6. Cold and hot shock temperature recover within 5 minutes, which complies with MTL, IEC, JIS, GJB and other international standards.
7. With RS-232C communication port for connecting PC to control, record and save test report.
