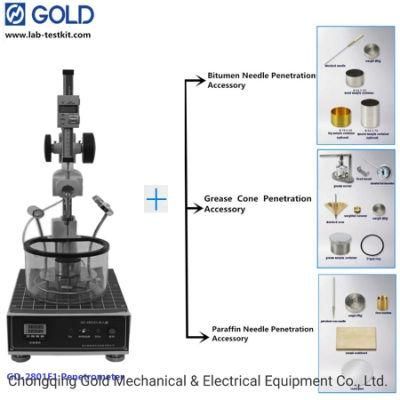

Standard Penetration Test Equipment for Bitumen and Wax

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Warranty：1 Year
  • Type：Muti-Function
  • Product Name：ASTM D5 Penetrometer for Bitumen and Wax
  • Usage：Penetrometer for Wax
  • Max. Penetration：600mm
  • Resolution：0.1mm

Base Info

  • Model NO.：GD-2801G
  • Timing Control：5, 60s
  • Temp.Control：Automatic(25±0.1)ºC
  • Features：with Wax Standard Needle
  • Transport Package：Wooden Case for Gd-2801g Oil Penetration
  • Trademark：GOLD
  • Origin：Chongqing, China
  • HS Code：9031809090
  • Production Capacity：100 Sets, Month

Description

Timing selection5, 8, 10, 12, 30 or 60 sTiming errorless than ±0.1 sPenetration accuracy±0.1 penetrationMaximum penetration600 penetrationsConstant temperature bathmade of harden glassMold25×32×3mm, a brass cylinderBrass board65×40×6.5mmHeating power220 W


Related products:

ModelGD-2801E1GD-2801FGD-2801IMax.Penetration600600600Resolution0.1mm0.1mm0.1mmTiming Control5,8,10,12,30,50,60s50,60s0~60sTemp. ControlAutomaticAutomaticAutomaticTest SamplesAsphalt,oil, WaxAsphaltAsphaltTypeCommonSpecialFull FunctionWith Water BathYesYes, low temp.Yes, low temp.


Company  Information:

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.

We mainly design and manufacture the petroleum testing instrument
After several years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of petroleum testing instrument .

Standard Penetration Test Equipment for Bitumen and Wax
Standard Penetration Test Equipment for Bitumen and Wax
