• Model NO.：CXJU-22M
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Without
• Name：Cxju-22m Izod Impact Testing Machine
• Speed：3.5m,S
• Impact Energy：Charpy Test: 1j 2.75j 5.5j 11j 22j
• Angle of Pendulum：150 Degree
• Trademark：CHENJI or OEM
• Origin：China Jinan or Others
• Production Capacity：100 PCS , Month

Basic Info.

Model NO. CXJU-22M Loading Method Static Load Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Without Name Cxju-22m Izod Impact Testing Machine Speed 3.5m/S Impact Energy Charpy Test: 1j 2.75j 5.5j 11j 22j Angle of Pendulum 150 Degree Trademark CHENJI or OEM Origin China Jinan or Others Production Capacity 100 PCS / Month

Product Description

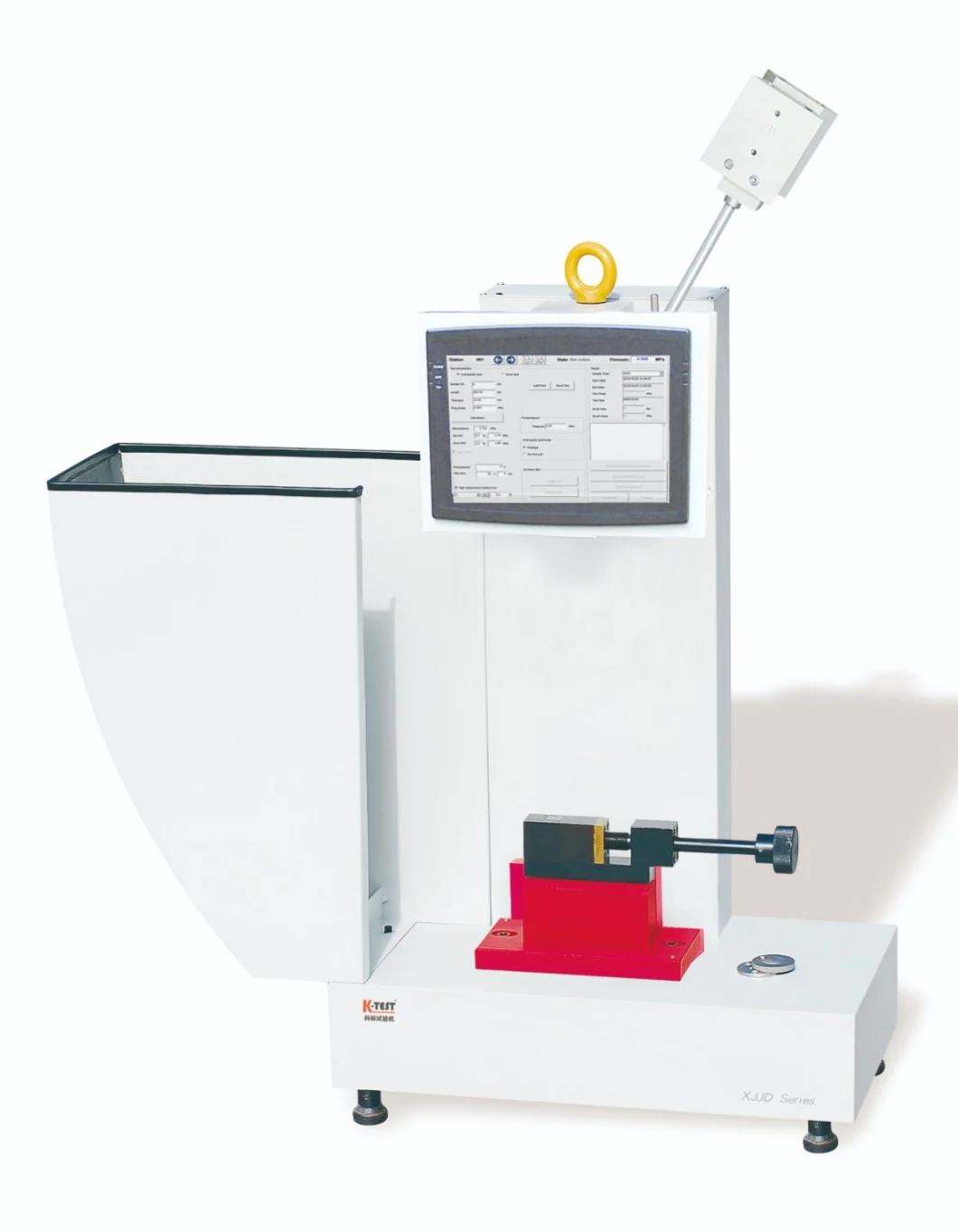

CXJU-22M Izod Impact Testing Machine with Touch Screen Controlling

1.Detailed Product Description1.Touch screen display2.Impact speed: Charpy Test : 3.5m/s3.Easy to operate
4.High quality and precision
5.Good after service

2.Characteristics
Digital type adopts the radial grating goniometry technology. With the characteristics of the precision high, stability good and measuring range big. Touch Screen setting parameters and shows the test result. The impact power, impact intension, angle in advanced, rising angle, calculate the sample's average value, energy lost self-correcting. The machine is equipped with USB output, an be directly exported data through the U disk, with the U disk and PC software provided by our company, the data can be imported into PC to editing and printing the experimental report
Functions
The instrument is mainly used for the determination of impact toughness of the nonmetal materials including rigid plastic, reinforced nylon, glass steel, ceramics, cast stone, electric insulating materials and so on. It is the ideal testing devices for the departments including the chemical industry, research institutes, universities, quality inspection and so on.
standards-compliant
Accord with the ISO180, GB/T1843,GB/T2611,JB/T 8761 standards' demands.

3. Technological Parameter

item	parameter
Model	CXJJ-22M
Controlled manner	Touch screen
Impact energy	Charpy test:  1J,2.75J,5.5J,11J,22J (choose one)
Speed of impact	Charpy test:3.5m/s
Pre-elevation angle of pendulum	150 degree
