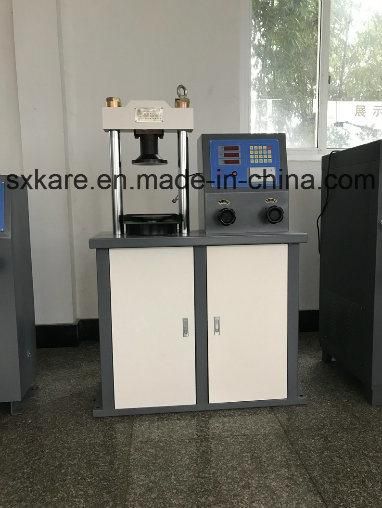

Lab Equipment of Cement Compression with Cement Flexture Testing Equipment (YES-300)
SHAOXING KARE INSTRUMENT EQUIPMENT CO., LTD.- Type：Compression Testing Machine
- Maxcapacity：300kn
- Accuracy Grade：1
- Display：Digital
- Control：Manual Control
- Weight：420kg
Base Info
- Model NO.：YES-300
- Power Source：AC380V
- Oil Cylinder Position：Under
- Driving：Hydraulic
- Transport Package：Wooden Case
- Origin：Zhejiang
- HS Code：9024800000
- Production Capacity：50 Sets,Month
Description
Basic Info.
Model NO. YES-300 Power Source AC380V Oil Cylinder Position Under Driving Hydraulic Transport Package Wooden Case Origin Zhejiang HS Code 9024800000 Production Capacity 50 Sets/MonthProduct Description
YES-300 Lab Equipment of Cement Compression with Cement Flexture Testing Equipment1. Function
"YES-300 digital display compression testing machine, CTM, pressure testing machine" is used for testing the compression strength detection bending-proof, thunderbolt strength experiments for concrete, stone and other building materials.
2. Application
"YES-300 digital display compression testing machine, CTM, pressure testing machine" is mainly used in the project construction such as the railroad, road, bridge, port, high-rise etc. It is applicable for the tensile strength resistant test to the concrete, construction parts, building materials etc. It can also be used for the strength test to the metal other non-metallic material, construction parts.
3. Security protection
Test force safeguard; The piston max movable span safeguard; Over-temperature protect, and so on.
4. Ergometer
The tester adopts JL-02 force value indicator as the ergometer. The ergometer consist of sensor, amplify board, A/D transmission board and min printer.
5. Data saving
This apparatus has the capacity of data memory. It store test data in a memory chip. After switching off, the data will be stored and it can adjust to take the original storage data after switching on, then searching or printing. If you use software it also can be linked with PC, store data in PC or deliver to the superintendence center, realize data net share and superintendence center centralized management. The maximum storage inside this apparatus is 151 units, (NO. 000~NO. 150), each test unit includes 3 or 6 test data and intensity mean. When you store the test data of NO. 150, the first test data (000# data) will be extruded.
| Max. test force | 300KN |
| Force range | 10~300KN |
| Testing space | Φ160×(175~375)mm |
| Max. piston stroke | 80mm |
| Readout accuracy | ≤±1% |
| Motor power | 1.1kW (0.75kW) |
| Dimension | 940×400×1460mm |
| Net weight | 420Kg |
