• Model NO.：GD-0610
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Transport Package：Wooden Case
• Specification：620mm*460mm*355mm
• Trademark：GOLD
• Origin：China
• Production Capacity：200units,Month

1. Power supply: AC(220±10%)V, 50Hz 2. Heating power:   2.4kW  3. Working temperature:  163ºC 4. Temperature control precision:    ±0.5ºC5. Rotating speed of turn plate:(15±0.2) r /min6. Air flow rate:   (4000±200)mL /min7. Timing unit:    Alert at 85 min8. Ambient temperature:    (5~50)ºC9. Relative humidity:    ≤85%10. Maximum power consumption:   2.6k







I. Main technical specifications

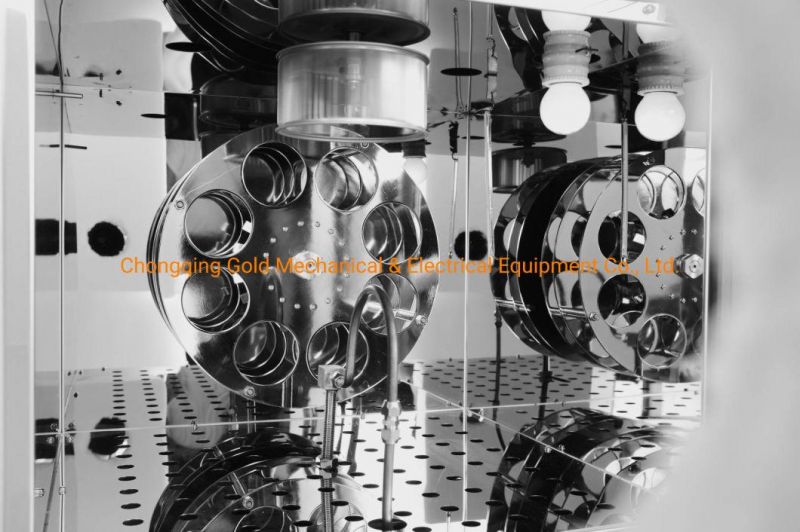

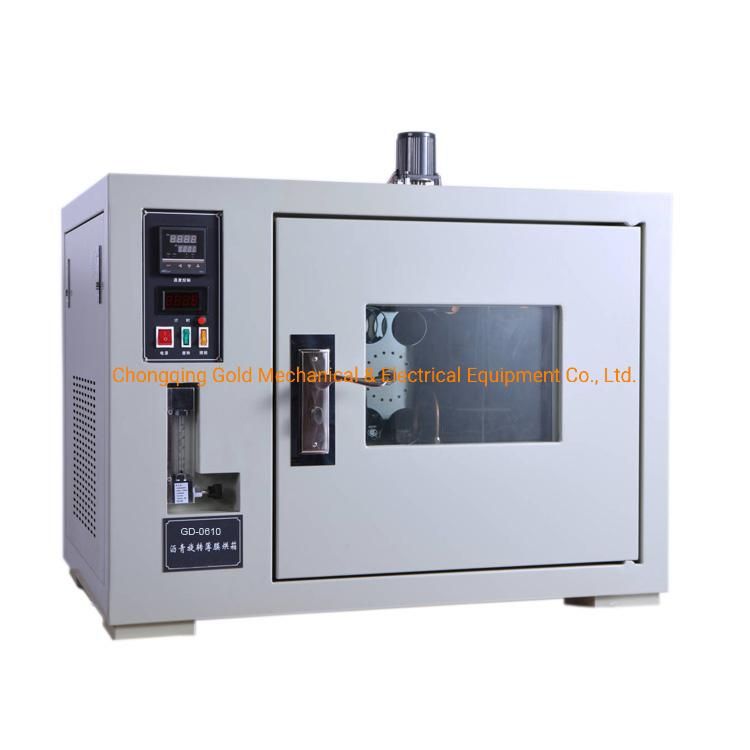

1. This Oven is composed of electric control component, working oven and mechanical drive. An illuminating

light is equipped in the oven for convenient observation.



2. There is an air compressor in the oven to supply the air needed for the test. The air can be controlled by

a flowmeter on the panel.

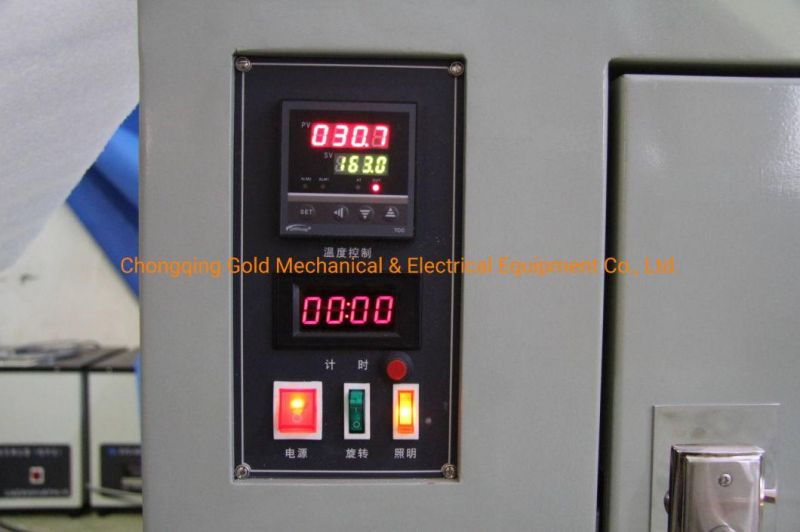

3. It adopts high precise temperature controller which can meet test requirements.



Bitumen Rolling Thin Film Oven Selection List



 ParameterGD-0609 TFO Thin Film Oven 82typeGD-0610 RTFO Rolling Thin Film Oven 85typePicture   Standard ASTM D1754 ASTM D2872 Timing Unit 5 hoursAlert at 85 min

 Test sample

quantity

 4 pieces 8 pieces Power Power: 2.5KW Heating power:   2.4kW Rotating speed of turn plate:  (5.5r±1r)/min (15±0.2) r /min Working temperature 163ºC 163ºC

Chongqing Gold Mechanical&Electrical Equipment Co., Ltd is a professional manufacturer of Petroleum Products test kits and

electrical testing equipment in China. Our products are sold to most countries in the world and they are highly popular because of our good

quality and after-sale service.

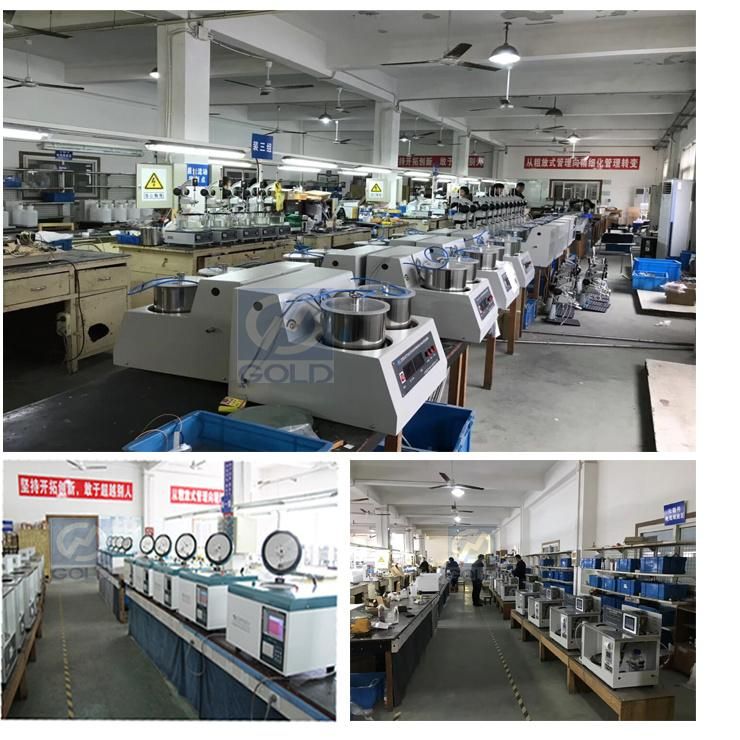

At present, there are more than 150 employees, of whom more than 70% are technical personnel with a college

degree or above. With strong technical force and strong development, new products have been launched continuously.


Exhibition



We have developed sales channels in many countries such as the UAE, Saudi Arabia, Iran, Malaysia, Thailand, Pakistan,

India, Germany, Belgium, the USA, Mexico, Kenya, Nigeria, South Africa, and other countries worldwide. And we have

gained a strong advantage and high reputation in the international market.

After several years' development, our products have become highly intelligent and wide coverage.
And our company has become one of the leading manufacturers of petroleum testing instrument and electrical testing

instrument.

Packing

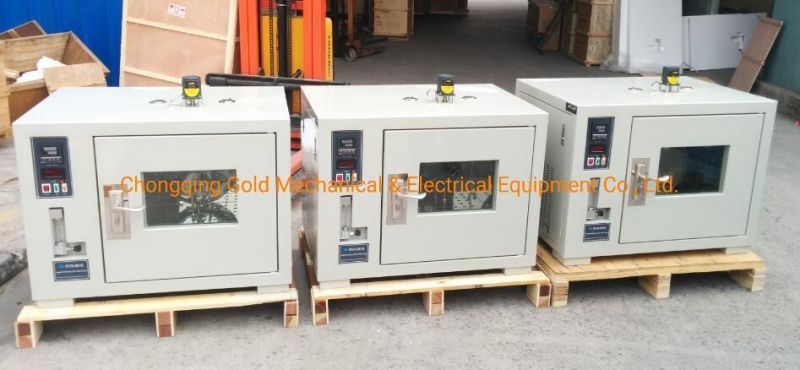

Goods are packed in veneer case, which is firm and safe for overseas shipment.
