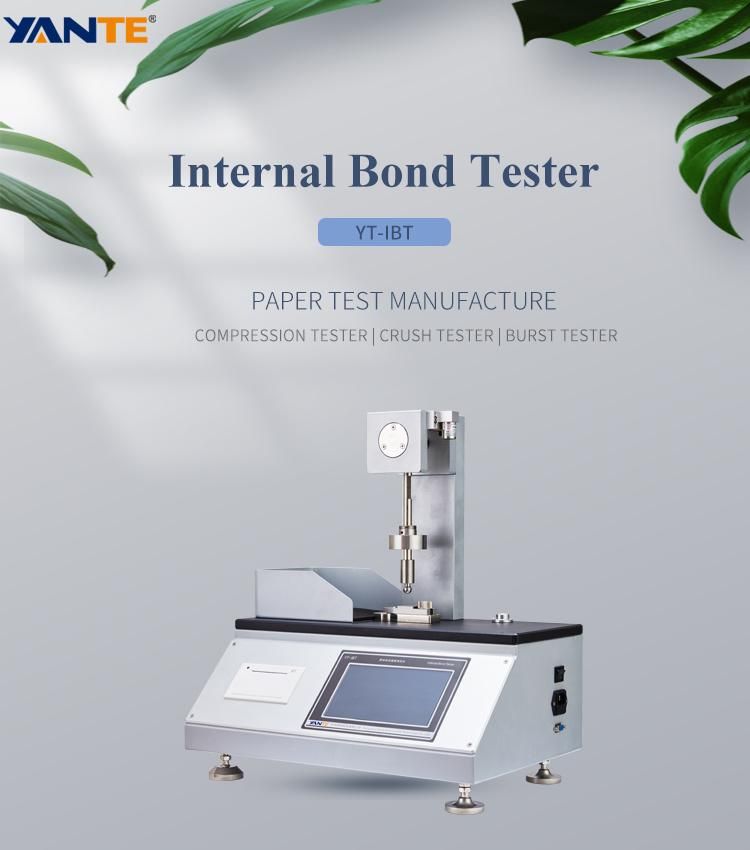

• Model NO.：YT-IBT
• Trademark：YANTE
• Origin：China
• HS Code：9024800000

Basic Info.

Model NO. YT-IBT Trademark YANTE Origin China HS Code 9024800000

Product Description

The interlayer bonding strength refers to the ability of the cardboard to resist the separation between layers, and is a reflection of the internal bonding ability of the paper, which is very important for the processing of multi-layer paper and cardboard. Low internal bonding value or uneven distribution may cause problems when paper and cardboard are laid flat in offset printing presses using viscous ink; too high bonding strength value will cause difficulty in processing and increase production costs.



Application Range

Box board, white board, gray board, white cardboard

Product Features

The non-damped encoder reduces the friction of the bearing and improves the measurement accuracy.
ARM processor, 7-inch color touch screen, Chinese menu, simple and convenient operation.
It can store 16000 sets of batch data, which is convenient for users to check historical measurement data.
The sample preparation and test are separated, and the sample preparation adopts pneumatic pressure. Compared with ordinary hydraulic paper samplers, no maintenance such as oil injection is required.
Communication with computer software (purchase separately)

Executive Standard

GB/T26203-2010



Supporting Accessories And Consumable


No.	Accessory name	Model	Picture	Standard	Optional
1	Sample Preparation Machine	YT-IBS		√
2	Internal Bond Sample Cutter	YT-Q25			√
3	Internal Bond Sample Cutter	YT-CQ25			√



Technical Parameters


No.	Parameter item	Technical index
1	Power Supply	AC(100~240)V,(50/60)Hz 50W
2	Working Environment	Temperature(10~35)ºC, Humidity≤ 85%
3	Display	7 inch color touch screen
4	Specimen size	25.4mm*25.4mm
5	Specimen holding force	0~60kg/cm²(Adjustable)
6	Impact angle	90°
7	Resolution	0.1J/m²
8	Measuring range	A:(20~500)J/ m² B:(500~1000)J/ m²
9	Indication error	A:±1J/ m²    B:±2J/ m²
10	Unit	J/m²
11	Data storage	Can store 16000 batch data; up to 20 test data under each batch
12	Print	Built-in thermal printer
13	Communication Interface	RS232(Default) (USB, WIFI optional)
14	Dimension	460×310×515 mm
15	Net Weight	25kg around
