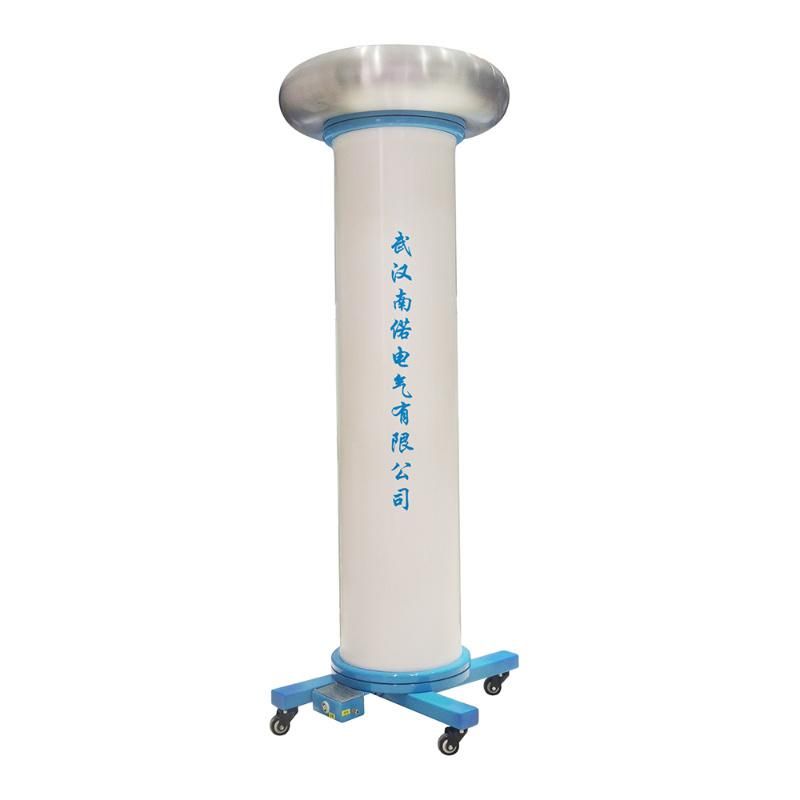

0.1% High Precision AC Voltage Divider 200kv Standard Capacitive Voltage Divider

Wuhan NANR Electric Co., Ltd.
  • After-sales Service：Yes
  • Warranty：1 Year Warranty
  • Max Diameter of Workpiece：<500mm
  • Mass Scope of Workpiece：<900kg
  • Type：Universal Testing Machine
  • Accuracy Grade：0.1%

Base Info

  • Model NO.：NRPA-200kV
  • Control：Manual Control
  • Weight：100-500Kg
  • Power Source：AC220V
  • Rated Voltage：200kv
  • Accuracy：AC: 0.1%
  • Voltage Ratio：1000:1
  • Dimension (mm)：700*700*1700
  • Weight (Kg)：Aroudn 195kg
  • Transport Package：Plywood Case
  • Trademark：NANR
  • Origin：Wuhan China
  • HS Code：9030331000
  • Production Capacity：12 Sets Per Year

Description

Basic Info.

Model NO. NRPA-200kV Control Manual Control Weight 100-500Kg Power Source AC220V Rated Voltage 200kv Accuracy AC: 0.1% Voltage Ratio 1000:1 Dimension (mm) 700*700*1700 Weight (Kg) Aroudn 195kg Transport Package Plywood Case Trademark NANR Origin Wuhan China HS Code 9030331000 Production Capacity 12 Sets Per Year

Product Description

1. Product Introduction

NRPA Series AC Precision Voltage Divider is developed as a standard for calibrating AC voltage divider (digital high voltage meter) in high voltage measurement and testing institute or high voltage measurement company. It is used to test the digital high voltage divider with accuracy 0.2%, 0.5%, 1%, 1.5% or lower accuracy of the electrostatic voltage meter, etc.
0.1% High Precision AC Voltage Divider 200kv Standard Capacitive Voltage Divider
2. Technical parameters
Voltage:AC: 200KV
Withstand voltage:1.2 times of the rated voltage
Accuracy:0.1%
 Voltage ratio:1000 : 1
Capacitancearound 50pF
Insulation medium:SF6 gas
Vessel pressure:about 0.4MPa
Frequency:50Hz
Cable type:SYV-75-5-2
Cable lengtharound 10m
Operation temperature:10 ~ 45ºC
Measuring temperature:20 ~ 25ºC
Relative humidity:  < 80%RH

Remarks:Voltage: higher voltage can be customized.

3. Product characteristics
(1) With interface to connect with high precision multimeter such as Agilent and Fluke etc, do not need to consider the input impedance;
(2) Light weight, good stability.
(3) High measurement accuracy up to 0.1%.

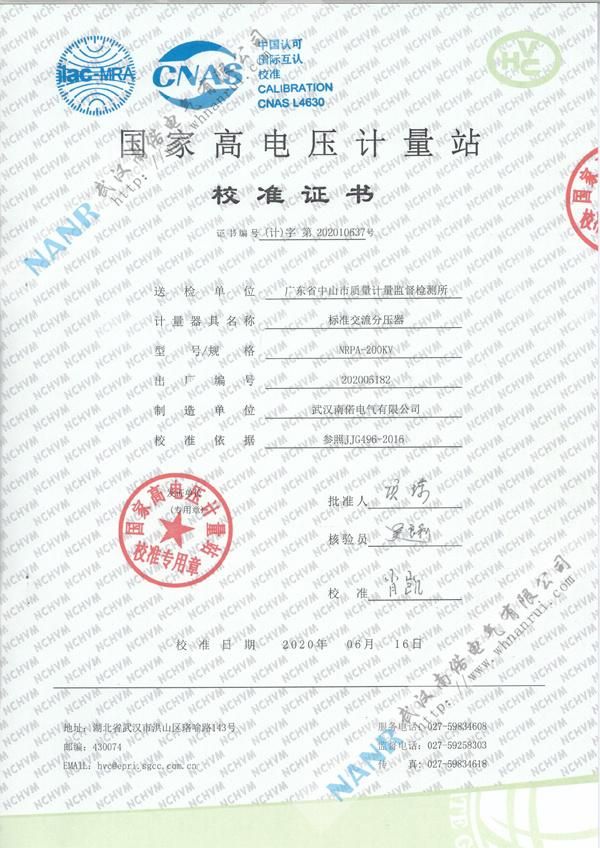

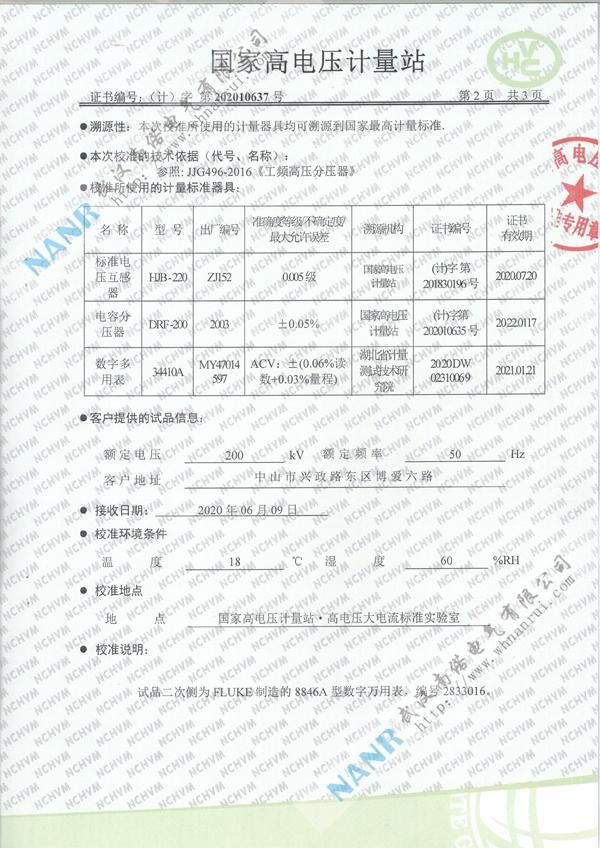

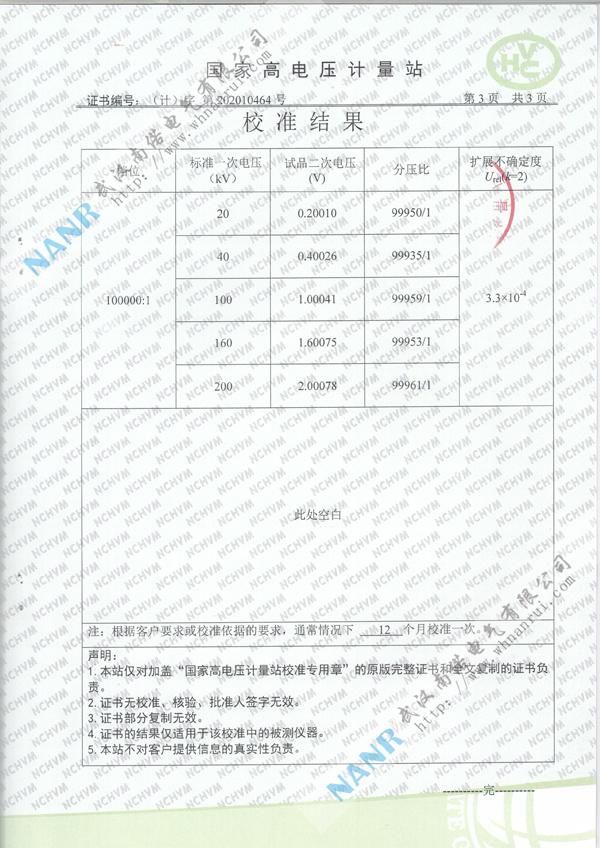

4. Calibration certificate



Our company produced NRPA-200kV high precision AC voltage divider had passed the test in National Center for High Voltage Measurement on July 2020 and get the calibration certificate.


0.1% High Precision AC Voltage Divider 200kv Standard Capacitive Voltage Divider
0.1% High Precision AC Voltage Divider 200kv Standard Capacitive Voltage Divider
0.1% High Precision AC Voltage Divider 200kv Standard Capacitive Voltage Divider
5. About our company
