• Model NO.：U-H1000D
• Accuracy Grade：1%
• Load Way：Hydraulic
• Loading Method：Dynamic Load
• Display：Digital
• Control：Manual Control
• Weight：3500kgs
• Power Source：AC220V,AC380V
• Oil Cylinder Position：Under
• Result：Direct Reading
• Precision：Classs One
• Capacity：1000kn
• Standard：BS, ASTM
• Working Principle：Hydraulic Loading Manual Delivery Oil Valve Speed
• Key Words：Universal Testing Machine Rebar Tensile
• Certification：ISO 9001
• Transport Package：15mm Plywood Package
• Specification：Steel production body
• Trademark：CIVITTEST
• Origin：China
• HS Code：9031809090
• Production Capacity：300sets,Year

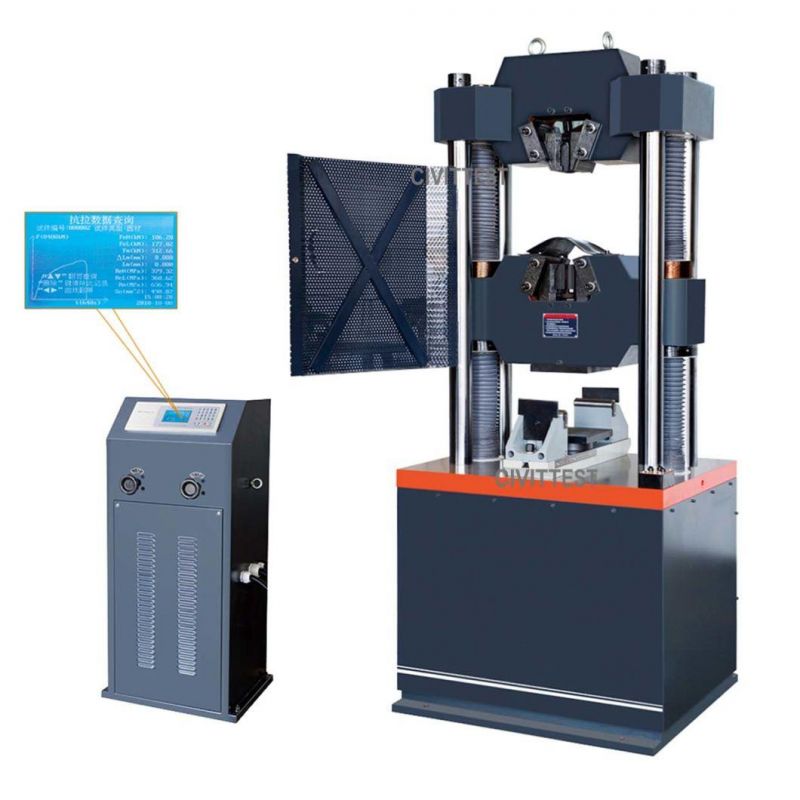

Overview Product Description

I. Use

It used to test the tensile strength, bending degree and maximum strength of metal materials ,etc

II. Standard

ASTM D1559

Product Parameters



            Capacity

1000KN

            Precision

class one

Load measuring range

2%-100%FS

Loading accuracy

1%

Loading resolution

0.01KN

Displacement accuracy

1%

Piston moving speed

0-70mm/min

Piston stroke

200/250mm

Beam moving speed

0-270mm/min

Effective tensile span

0-550/600/700mm

Effective compression span

0-450/470/500min



Round specimen clamp

0-32/13-40/20-60mm

Flat specimen clamp

0-15/30/40mm

Clamp width of flat specimen

75mm

Size of compression plate

205mm x 205mm

Bending stick distance

350/500mm

Bending stick width

120mm

Bending degree allowance

150mm

Oil pump power

1.5Kw

Beam moving motor

0.5Kw

Displacement testing device

Staff

Overload protection

2-5%

Weight

2000/2800/3000Kgs

Detailed Photos

Certifications

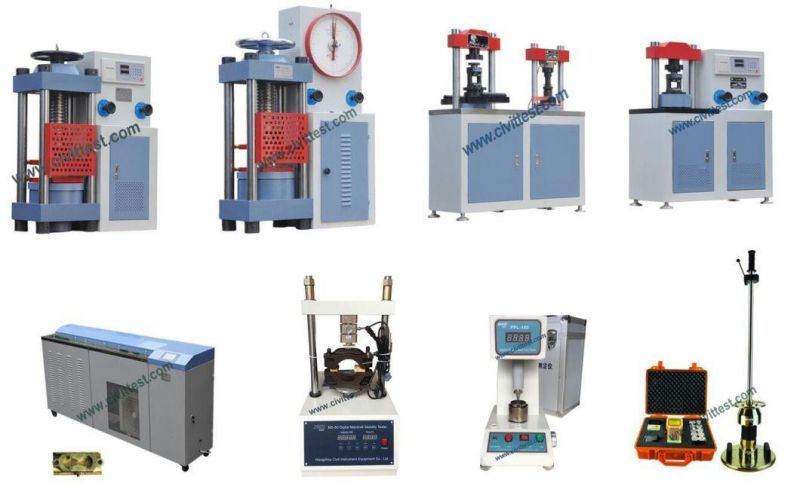

IV. Company Product
1. Drying, weighing and Grading Equipment and tools.
2. Soil, Rock Testing Equipment.
3. Aggregate Testing Equipment.
4. Concrete Testing equipment.
5. Cement and Mortar Testing Equipment.
6. Asphalt Bitumen Testing Equipment.
7. Steel Testing Equipment.
8. Survey Instrument and Detector.
9. General Lab Equipment and Tools.
10. Scientific Lab Equipment and Tools.



V. Our services

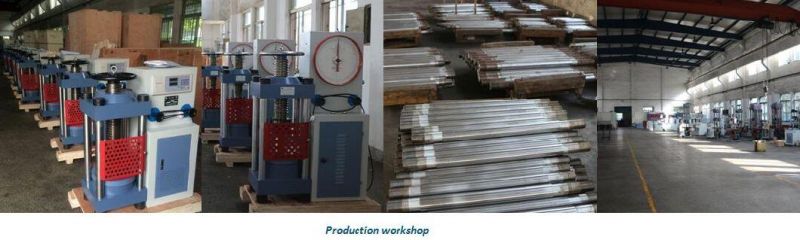

1. Production:
Our factory choose high quality material include steel, stainless steel, circuit board, motor, etc. By strict and efficient production and inspection, products are in high quality and possible low cost.


2. Shipment:
We use 9mm and 15mm thick plywood as packing, heavy machine will be packed in high strength to keep it intact during shipment. We ship goods out from company in shortest time and book fast ship to make sure customer can get goods quickly.



3. After sales:
After shipment, we will delivery shipping documents to customer correctly and quickly. Supply one year warranty for all machines, after one year, we will still supply quick and effective after sales solution.
