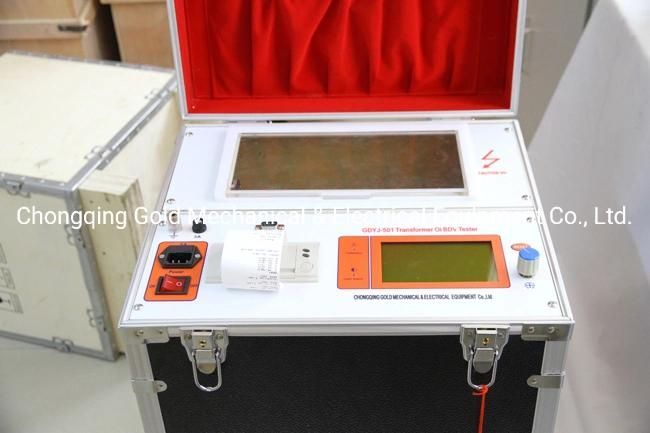

IEC 60156 Insulating Oil Dielectric Strength and Dielectric Breakdown Voltage Bdv Tester 80kv or 100kv

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Warranty：1 Year
  • Apparatus：Digital Transformer Oil Dielectric Strength Tester
  • Application：Oil Dielectric Strength Breakdown Voltage Tester
  • Function：Dielectric Oil Breakdown Voltage Tester
  • Device：Insulating Oil Breakdown Voltage Tester
  • Output Voltage：AC 0~80kv,100kv

Base Info

  • Model NO.：GDYJ-501
  • Rate of Voltage Rise：2kv,S±10%
  • Measuring Precision：3%Rdg+0.3%Fs
  • Test Times Setting：1-9
  • Display：256*128 LCD
  • Transport Package：Wooden Case
  • Specification：ISO Certificate
  • Trademark：GOLD
  • Origin：Chongqing of China
  • HS Code：9031809090
  • Production Capacity：2000PCS,Month

Description

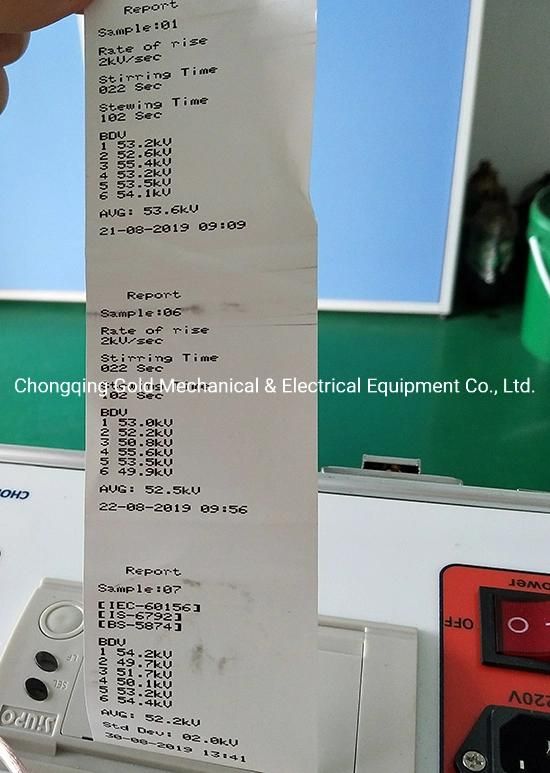

1   Breakdown test of user-defined2   Proof test3   Calibration interface for customers4   Unloading data to PC and making word report automatically.5   Result print
Specifications:1Output voltageAC 0~80KV/AC 0~100KV2Rate of voltage rise2KV/s±10%3Measuring precision3%RDG+0.3%FS4Test times setting 1~95Mixing time setting 0~99 second6Waiting time setting0-9 minute 59second7Maximum storage capacity100 groups of test data8Test standardsIEC601569Display256*128 LCD10Rated power supplyAC 220V±10% 50Hz/60Hz11Environment temperatures 0-50°C   12Relative humidity≤80%RH13Size   420×380×410mm314Weight28kg
GDYJ Series IEC 60156 Insulating Oil Dielectric Strength and Dielectric Breakdown Voltage BDV Tester 80kv or 100kv

ModelGDYJ-501GDYJ-502GDYJ-503
Output VoltageAC 0~80KV/0~100KVAC 0~100KVAC 0~80KV
Rate of Voltage Rise2KV/s±10%0.5/2/3/5 KV/s±5%2KV/s±10%
Max. Time Setting0~9mins9mins0~99 seconds
Test Precision3% RGD+0.3%FS3% RGD+0.3%FS3% RGD+0.3%FS
Max. Data Storage100 groups100 groups50 groups
Power SupplyAC220V±10% 50/60HzAC220V±10% 50/60HzAC220V±10% 50/60Hz
Environment Temp.0~50Centigrade0~50Centigrade0~50Centigrade
Related Humidity<80%RH<80%RH<80%RH
Dimension420*380*410mm620*430*330mm420*380*410mm
Weight28kg41kg28kg
