Drone Engine Test Bench Engine Dynamometer Test Bench Suppliers
Jiangsu Lanmec Electromechanical Technology Co., Ltd.- Max Diameter of Workpiece：>3200mm
- Mass Scope of Workpiece：>20000kg
- Type：Engine Test Bench
- Maxcapacity：<1000KN
- Accuracy Grade：1
- Load Way：Mechanical Load
Base Info
- Model NO.：Drone engine test bench
- Loading Method：Dynamic Load
- Display：Digital
- Control：Computer Control
- Weight：>2000Kg
- Power Source：AC220V
- Oil Cylinder Position：Under
- Rated Power：300 Kw
- Rated Torque：1600 N.M
- Rated Speed：2000- 2600 Rpm
- Max Speed：6000
- Turning Inertia：2.7 Kgm2
- Max Voltage：150 VDC
- Max Current：5 a
- Cooling Water Pressure：0.2-0.4 MPa
- Flow of Cooling Water：300 L,Min
- Transport Package：Wooden Box
- Specification：DW 300
- Trademark：Lanmec
- Origin：China
- HS Code：9031809090
- Production Capacity：10000 Sets , Years
Description
The engine comprehensive performance test bench is mainly used to test the fuel consumption of the engine; output torque, output speed, output mechanical power; emissions, exhaust gas analysis; temperature rise, vibration, noise, etc. It can carry out type test and factory test to evaluate the comprehensive performance of the engine, and provide accurate parameter basis for engine development, production, maintenance and field application. The engine comprehensive performance test bench can test all kinds of diesel engines, gasoline engines, etc.

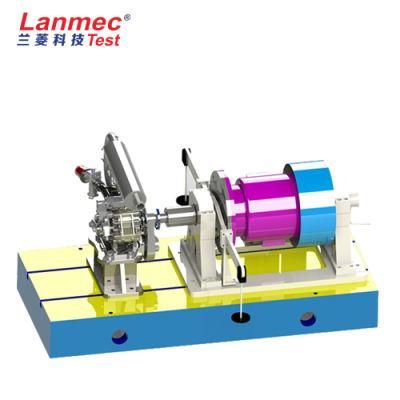

This type of engine test bench is mainly composed of the tested engine, torque speed sensor, simulated load (eddy current brake / dynamometer, hydraulic dynamometer, motor, etc.), installation platform, connecting fixture, measurement and control system (instrument, software, etc.) , Electrical control system.
The test process can be loaded manually or automatically, the test results can generate customized test reports, curve charts, etc., the process data can be generated in Word, Excel, or PDF format files, and the data can be saved, edited, and printed. The test system interface is simple, easy to upgrade and maintain. The company trains the operating personnel free of charge to provide guidance for use and maintenance.
Users can choose test items according to specific requirements:
Fuel consumption test
Output torque, output speed, output mechanical power
Temperature rise test (vibration, noise, etc.)
Emission and exhaust gas analysis test
Specific test items can be communicated or customized by both parties, technical support phone
Lanmec Technology's various test benches, dynamometers and other customers are located in aerospace, aviation, ship parking, weapons, petroleum, scientific research units, colleges and universities, testing institutions, etc., and are exported to the United States, Germany, Italy, Turkey, Chile and India Country, welcome to call us!

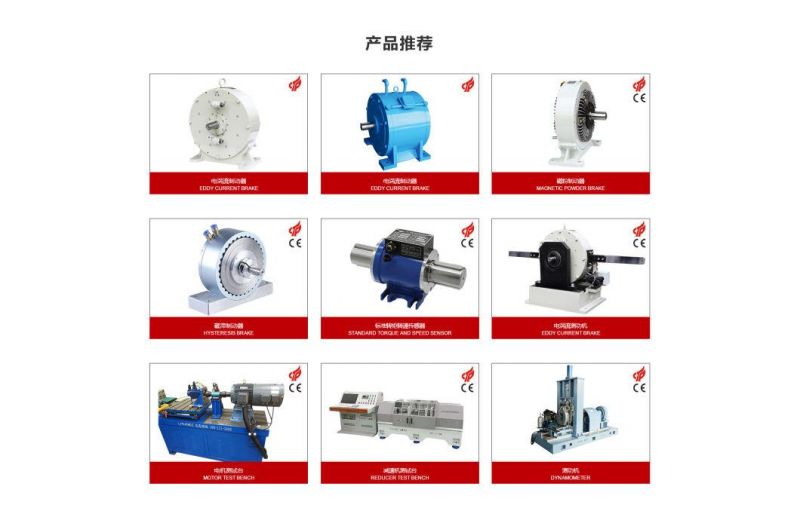

Related Products
Main application:
DWZ disc eddy current brake is mainly used as load in loading dynamometer equipment. it is experimental apparatus which can measure the dynamic mechanical properties, especially in dynamic loading test whose power value is small or tiny, also can be treated as suction power devices of other dynamic devices.
DW series disc eddy current dynamometer is, is that add device for measuring torque and rotational speed on DWZ series disc eddy current brake, it is experimental apparatus which can measure the dynamic mechnical properties, especial in dynamic loading test whose power value is small or tiny.
CW eddy current brake as a load is mainly used to measure the mechanical characteristics of inspection equipment, it and other control instrument (including loading apparatus, torque speed sensor and torque power acquisition instrument etc.) can be composed of eddy current dynamometer can be used for performance testing of the internal combustion engine, motor, gas turbine, automobile and its dynamic mechanical components, compared with other power measuring device, the CW series power measuring device has the advantages of reliability, high stability and practicability.
Product Line:

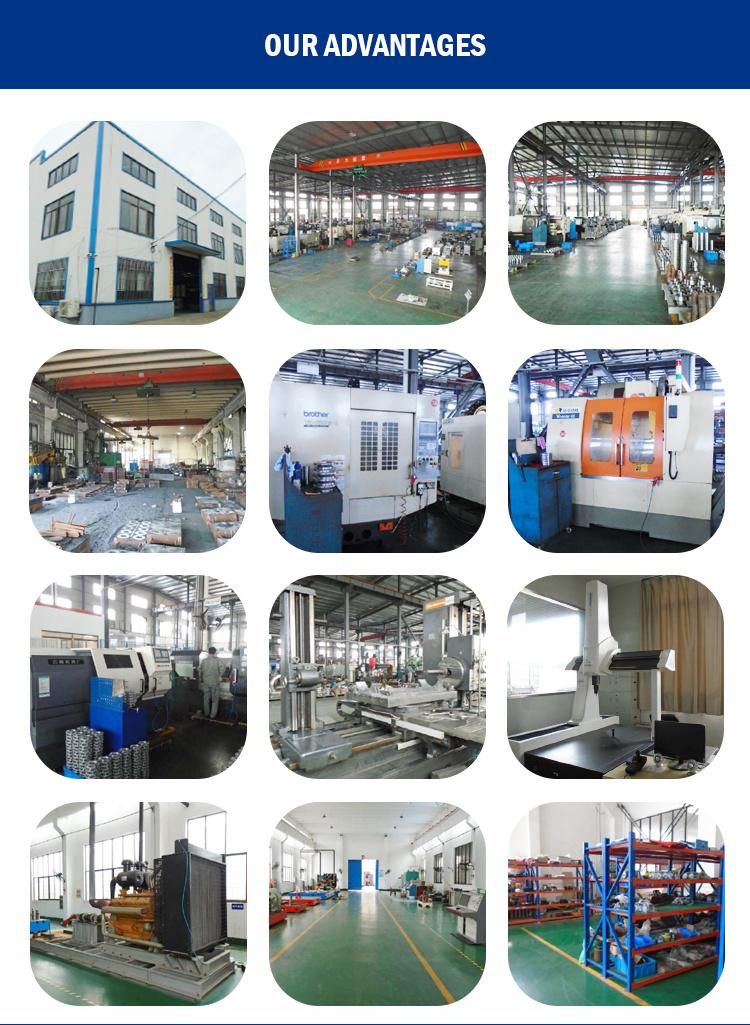

Advantages:
