• Model NO.：ZLT-QL1
• Power Source：AC380V
• Usage：Test Mechanical Durability of Flexible Cord &Cable
• Certification：CNAS Calibration Provided
• Material：Stainless Steel
• MOQ：1 PC
• Delivery：in 25-30 Days
• Transport Package：in Plywood Carton
• Specification：IEC60245-2,1998-04 figure 1, IEC60227-2,1997-11
• Trademark：ZLTJC
• Origin：Guangzhou, Guangdong, China
• HS Code：9031809090
• Production Capacity：Stock Available

Basic Info.

Model NO. ZLT-QL1 Power Source AC380V Usage Test Mechanical Durability of Flexible Cord &Cable Certification CNAS Calibration Provided Material Stainless Steel MOQ 1 PC Delivery in 25-30 Days Transport Package in Plywood Carton Specification IEC60245-2/1998-04 figure 1, IEC60227-2/1997-11 Trademark ZLTJC Origin Guangzhou, Guangdong, China HS Code 9031809090 Production Capacity Stock Available

Product Description

Flexible Cable Flexing Tester

Product details: Model ZLT-QL1.

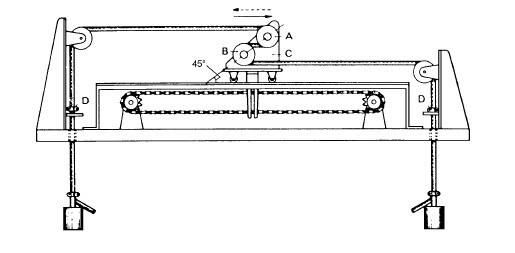

For checking the mechanical durability of flexible cords and cables by bending them back and forth, This test does not apply to flexible cables with cores of nominal cross-sectional area greater than 42, nor to cables having more than 18 cores laid up in more than two concentric layers, according to IEC60245-2/1998-04 figure 1, IEC60227-2/1997-11 figure 1, IEC60065 /1998-07 Table 11

Standard Outfit:

1 carrier, with recirculating-ball bearing bushes running below the table-board on two cylindrical guideways, with mounted travelling boom,

1 geared motor with chain and connecting rod to drive the carrier with a speed 0.33 m/s± 5%,

1 set per sample of bolts and nuts for fastening the pulleys,

1 set per sample of restraining clamps and stops to limit the travel of the sample,

1 set per sample of instrument terminals or after agreement-plugs and socket-outlets for connection of sample,

1 set per sample of clamps to fasten the samples beneath the instrument terminals,

1 set pulleys of diameter 60mm-80mm-120mm-160mm-200mm,

1 set weights from 0.5 kg to 8 kg,

1 electrical switching and control unit with main switch, lockable switch,

1 electrical control system of load current 0~25A, load voltage 0~400V, testing stops when current interruption, short circuit between the wires, short circuit between the sample and the pulley.

Power supply: 380V 50Hz, other voltage on request.
