• Model NO.：YX-ZR
• Weight：0-100Kg
• Power Source：AC220V
• Product Description：Automatic Calorimeter
• Temperature Range：5ºC-40ºC
• Temperature Resolution：0.0001ºC
• Precision (Precision Mode)：Rsd≤0.1%
• Transport Package：Standard Export Package
• Trademark：Labkits
• Origin：Hunan China
• Production Capacity：500PCS,Month

Basic Info.

Model NO. YX-ZR Weight 0-100Kg Power Source AC220V Product Description Automatic Calorimeter Temperature Range 5ºC-40ºC Temperature Resolution 0.0001ºC Precision (Precision Mode) Rsd≤0.1% Transport Package Standard Export Package Trademark Labkits Origin Hunan China Production Capacity 500PCS/Month

Product Description

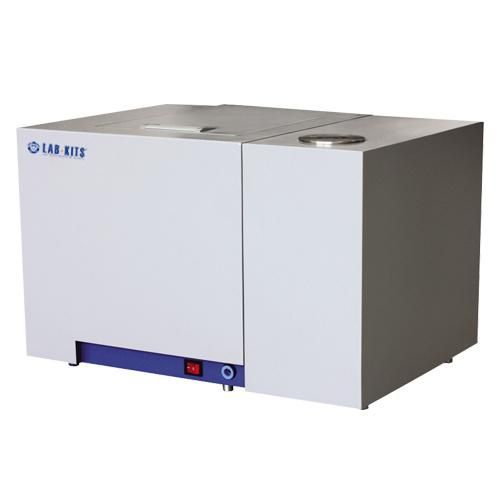

Item: Fully Automatic Calorimeter/Bomb Calorimeter/Oxygen Bomb Calorimeter
Model: YX-ZR

3. Application area
It is applicable in the industry such as electrical power, coal, papermaking, petrochemical, cement, farming, medical research, and instruction to measure the Calorific Value of combustible materials. It conforms to ASTM D240, ASTM D5865, and ISO 1928.

4. Technical parameters
Calorimeter type: Isoperibol
Temperature range: 5ºC~40ºC
Temperature resolution: 0.0001ºC
Precision (Precision Mode): RSD≤0.1%
Testing time (Precision Mode): 8 min
Power Supply: 220V, 50/60HZ
Power: ≤1.5kw
Dimension: 540mm×420mm×420 mm
Weight: 45kg

5. Features

• CE Certificated.
• With   the   semi-conductor   water   refrigeration   system,   the   instrument   can automatically determinate the refrigerating capacity and balance the circulation system according to the caloric of previous time. Thus the water temperature can be kept constant, and the influence of environment can be greatly reduced. Perfectly solved the problem that the tests cannot be made continuously after 4-5 tests have been made because the temperature difference between outer bucket water and environment exceeds 1.5ºC.
• There is no need to measure water and adjust water temperature in the whole experiment, thus to make manipulation easy and convenient.
• With advanced small oxygen filling instrument. Low malfunction rate.
• Probe-type electronic measuring cup is used to measure the inner bucket water, repetition error is less than 0.5g, so the water quantity is more accurate and the testing time is shorter.
• The special auto stop and auto draining joints are equipped to change the water. When the drainpipe is connected, the instrument discharge water; when the drainpipe is taken off, the water will stop effusing.
• Using the advanced USB technology, one computer can control 1-4 calorimeter buckets or other instruments, thus to make up synthesized testing instrument.
• Completely support Windows systems; high stability; can link electronic scale and share data in long distance through network.

6. Configuration

Item	Quantity	Unit
Calorimeter	1	PC
Constant Temperature Bucket	1	PC
High Precision Temperature Measuring Card	1	PC
Oxygen Bomb	1	PC
Oxygen Bomb Bracket	1	PC
Oxygen Bomb Gasket Ring	1	Set
Deflation Valve	1	PC
Oxygen Charging Facility	1	Set
Oxygen Charging Pipe	1	PC
6MPa Decompression Valve	1	PC
Ignition Thread	1	Box
Standard Benzoic Acid	2	Bottle
Heating Crucible	10	PC
Asbestos	1	Bag
Wrench	1	PC
Screwdriver	1	Set
Socket Board	1	Set
Delay Fuse (3A)	5	PC
Controlling Cable	1	PC
Exhaust Pipe	1	PC
Offlet Pipe	3	PC
Application Software for Windows System	1	CD
Instruction Manual	1	PC
