1078 Test Bike Helmet Impact Shock Absorption Capacity Helmet Testing Machine

Dongguan Hong Tu Instrument Co., Ltd.
  • Max Diameter of Workpiece：>3200mm
  • Mass Scope of Workpiece：<900kg
  • Type：Impact Testing Machine
  • Maxcapacity：<1000KN
  • Accuracy Grade：0.5
  • Load Way：Mechanical Load

Base Info

  • Model NO.：HT-6011
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Computer Control
  • Weight：1000-2000Kg
  • Power Source：AC220V
  • Oil Cylinder Position：Under
  • Testing Standard：ECE R22.05,En1078 etc Testing Standard
  • Testing Sample：Motorcycle Helmet, Bike Helmet
  • Impact Height：3m (Adjustable)
  • The Testing Machine′s Total Height：Approx 5.6m
  • Drop Ways：Free Guide Falling
  • Accelerometer：American Import
  • Bearing：American Import
  • Testing Velocity System：High Accurate Testing Velocity Sensor
  • Rise and Drop Fixture：Automatic Rise and Drop
  • Control Ways：Computer Control
  • Data Display：Curve Display
  • Electricity：220V 50Hz
  • Transport Package：Wooden Case
  • Specification：ECE R 22.05 standard
  • Trademark：HOTOTECH
  • Origin：Dongguan
  • HS Code：9013809000
  • Production Capacity：100 Sets Per Month

Description

Produuct NameBike helmet impact testing machine /shock absorption capacity testing machine/Helmet testing machineTesting standardECE R22.05 and EN1078 etc testing standardTesting sampleMotorcycle helmet, Bike helmet PurposeTesting helmet reistance impact performanceThe impact heightThe maximum 3m (adjustable)The testing machine total heightApprox 5.6mDrop ways Free guide fallingAccelerometerAmerican import Bearing American importTesting velocity systemHigh accurate testing velocity sensor Control ways Computer control Electricity220V 50HZ

Testing steps
1. Connect the air souce and power
2.Open the computer power and control box power
3.Installtion the testing fixture and headform
4.According to the standard correct to wearing the helmet on the headform
5.Open the testing software , click testing standard
6.Edit the testing sample's basic information ( eg. color , size , number etc )
7.Set well the impact height , then click the testing running
8. Save the report ( the testing report can print out)

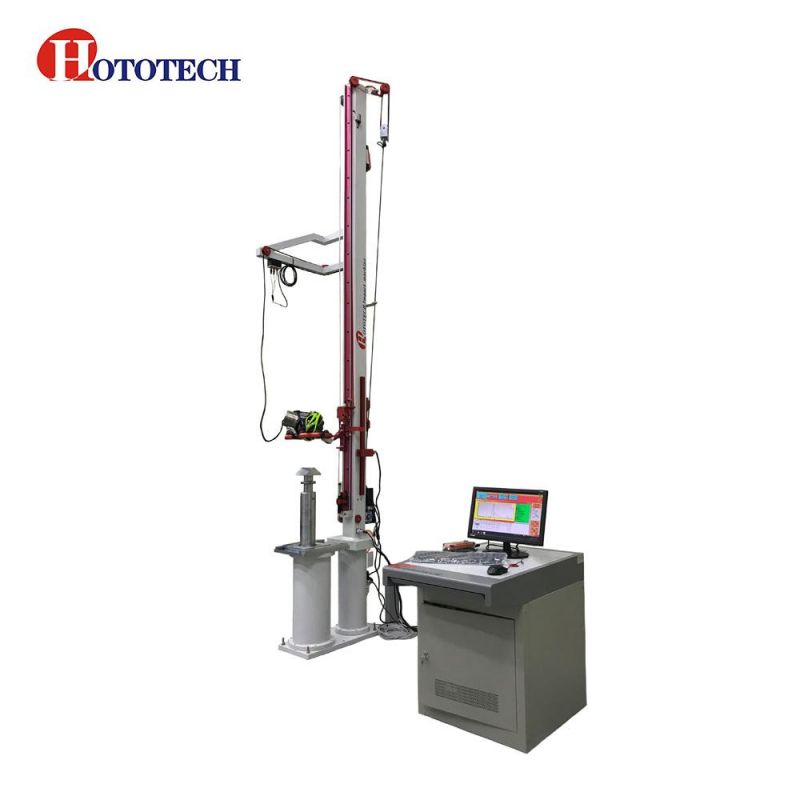

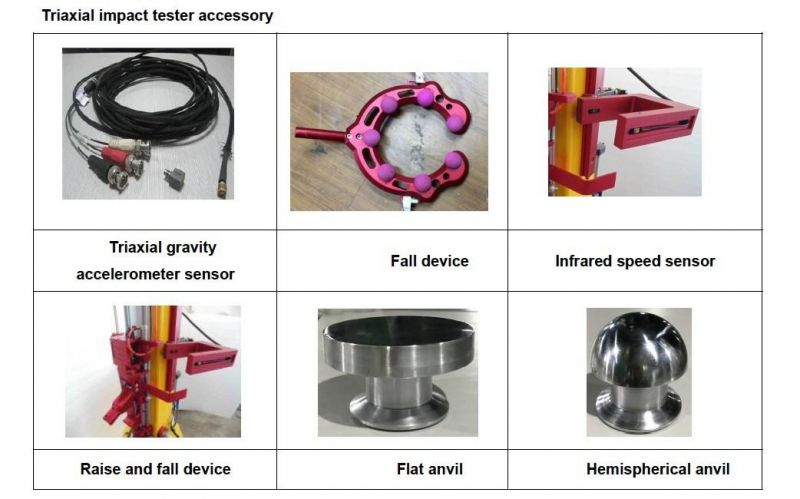

Testing machine images and parts show
1078 Test Bike Helmet Impact Shock Absorption Capacity Helmet Testing Machine

1078 Test Bike Helmet Impact Shock Absorption Capacity Helmet Testing Machine


Package show
1078 Test Bike Helmet Impact Shock Absorption Capacity Helmet Testing Machine
