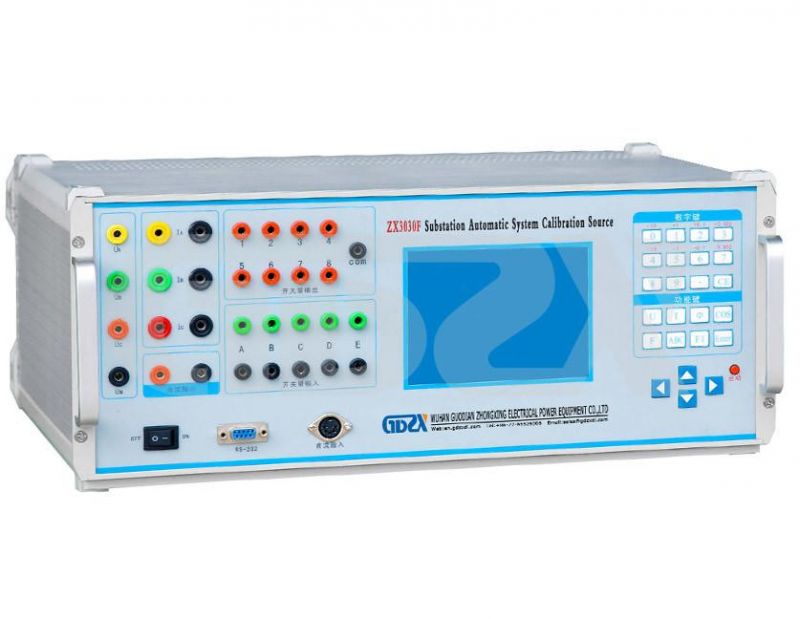

Multifunctional Substation Integrated Automatic System Calibration Source

Wuhan GDZX Power Equipment Co., Ltd.
  • After-sales Service：Provide lifelong after-sales service
  • Warranty：1 Year
  • Voltage Output range：automatic range: 0V~600V
  • Current AC range：Automatic range: 0A~25A
  • Frequency Regulation fineness：45HZ~65Hz
  • Phase Regulation range：0~360

Base Info

  • Model NO.：ZX3030F
  • Power accuracy：0.05%(reactive power: Less than or equal to 0.2%)
  • Harmonic component：2~31order, amplitude: 0-40%
  • Working temperature：-20~40Centigrade
  • Reltative humidity：10%~90%
  • Power supply：220V+,-10%, 48 HZ~51HZ
  • Transport Package：Carton,Wooden Case
  • Specification：With the change of technical scheme
  • Trademark：GDZX
  • Origin：Hubei
  • Production Capacity：500 Pieces,Month

Description

DC current measurementMeasuring range±20 mAResolution0.00%Display digit6digitsaccuracy0.05%

1. State Variables output

1) Binary code "1" represents "close", "0" means "open"

2) Stage varables rating voltage: 24V/48V/110V/220V

3) Output current: max 200mA

4) Channels: 8 independent outputs

2. Pulse output

1) frequency: 0-5KHz adjustable

2) Pulse width: 0.1ms-100ms adjustable

3) Electric level: 24V/48V/110V/220V

4) Pulse number: output number can be set

5) Telecontrol protocol

6) CDT protocol shall conform to DL451-91

7) POLLING protocol shall confirm to DL/T634-2002

3. Working power supply: AC220V±10%


Multifunctional Substation Integrated Automatic System Calibration Source


Multifunctional Substation Integrated Automatic System Calibration SourceMultifunctional Substation Integrated Automatic System Calibration Source
About GDZX
     Wuhan GDZX Power Equipment Co.,Ltd. is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
Multifunctional Substation Integrated Automatic System Calibration SourceMultifunctional Substation Integrated Automatic System Calibration SourceMultifunctional Substation Integrated Automatic System Calibration SourceMultifunctional Substation Integrated Automatic System Calibration Source
Shipping and packaging
Multifunctional Substation Integrated Automatic System Calibration SourceFeatures


1. Function: AC sampling device and sampling RTU (Remote Terminal Unit) calirbation

1) AC/DC analog value input measurement

2) state variables input measurement

3) remote control execution testing

4) remote regulation function testing

5) digital value input testing

6) impulse input testing

2. AC Power source

It can output AC voltage, AC current

accuracy 0.05 class

can provide standards of AC/DC voltage/current, power, phase, power factor, frequency, energy.

Output method and output electric quantity can be set arbitrarily

3. Data management

It can save, search, browse, print or delete RTU testing data.

Calibrated parameters can be saved permanently
