• Model NO.：THR Series
• Temp. Rising Speed：0.1~3.0degree C,Min
• Temp.Falling Speed：0.1~1.5degree C,Min
• Analytic Accuracy：0.1degree C; 0.1% R.H
• Uniformity：+,-2.5degree C; +,-3.5% R.H.
• Cooling System：Water Cooling
• Test Hole：Dia. 100mm
• Transport Package：Wooden Case
• Specification：CE Certified
• Trademark：ASLi
• Origin：Guangdong, China
• HS Code：85141910
• Production Capacity：300 Sets,Month

Overview Product Description

1 Product Name

1-1 Product Name:  Constant Temperature Humidity Climatic Chamber/ Walk in Stability Chamber

Product Parameters

2 Main Technical Parameters

2-1  Dimension: According to customer's requirements

2-2  Material : SUS#304ss

2-3 Temperature :-70°C~150°C (according to customer's requirements)

2-4 Temperature Indication Resolution: ±0.1°C

2-5 Temperature Control Accuracy: ±0.5°C

2-6 Temperature distribution uniformity:±2°C

2-6 Humidity: 20%~98%R.H   (according to customer's requirements)



3 Air Supply Systems for Walk In Testing Room

3-1 Air Cycling Device: centrifugal fan, externally installed motor drive

3-2 Heating Mode: wire heaters made of a material called Nichrome; PID & SSR control

3-3 Cooling Mode: air cooling

3.4 Humidification Mode: Stainless steel steam humidification; water purifier is provided for automatic water supply while being connected to the chamber

3-5 Dehumidification Mode: by compressor& de-humidify device

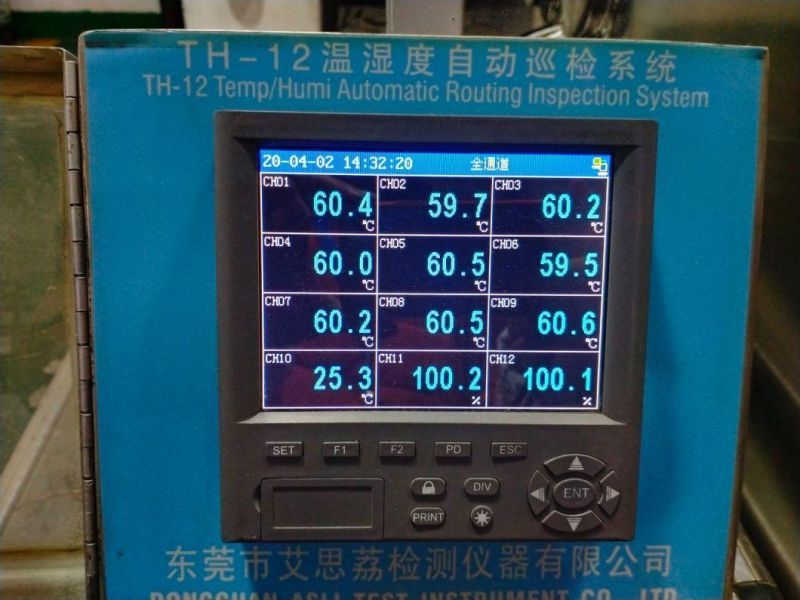

60C Temperature Test, Calibration with 9 points test method

4 Refrigeration/Dehumidification Systems

4-1 Refrigeration Accessories:

4-1-1 Compressor:

Vortex cascade type mechanical refrigerating system

Good refrigeration scale, low noise, low energy consumption, high efficiency.

Two compressors are used for the machine to ensure Long-term & stable operation

4-1-2 Refrigeration Evaporator:

Finned evaporators are used for increasing heat exchange efficiency by 30%.

This evaporator has the advantages of beautiful look, compact shape, and fast cooling effect.



5  construction

 5-1 Console Model Chamber:

5-1-1 The workspace is located at the left side or as to the user requirements;

5-1-2 Refrigeration unit cabinet located in the right side;

5-1-3 Electric control part is placed in the refrigeration unit cabinet, with operation panel on the front Chamber exterior is made of cold rolled steel with powder-painted, interior is stainless steel SUS304 #;

5-1-4 Thermal insulation material is flame retardant polyurethane rigid foam, of 100-150mm thickness.

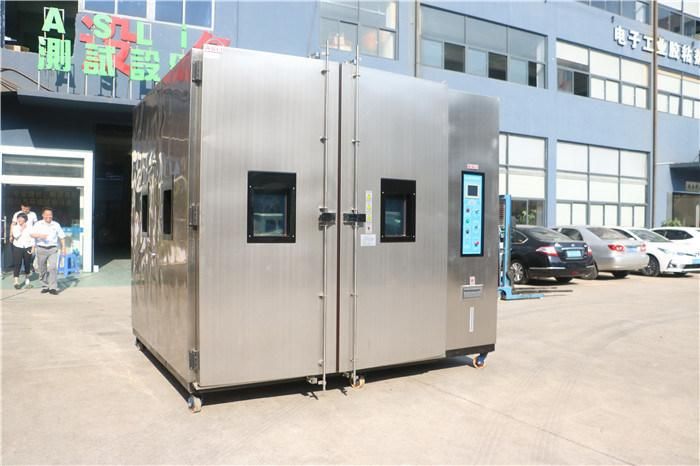

constant temperature humidity climatic chamber/ walk in stability chamber

Detailed Photos

Packing Detail:
Exhibition

If you need more information about Constant Temperature Humidity Climatic Chamber/ Walk in Stability Chamber, please feel free to contact us.
