• Model NO.：XB-OTS-P
• Loading Method：Dynamic Load
• Display：Digital, LCD ( Linkable to PC )
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Max.Acceleration(G)：17
• Max Capacity：2, 5, 10, 20, 50, 100, 200, 500kgf Can Be Setting
• Motor：Servo Motor
• Test Speed：1~500 mm,Min Selectable
• Stroke Resolution：0.1mm
• Test Stroke：600mm (Without Grips)
• Force Precision：±0.5%
• Transport Package：Standard Strong Wood Case
• Specification：580*580*1250mm
• Trademark：OTS
• Origin：Guangdong, China (Mainland)
• HS Code：90248000
• Production Capacity：248 Sets Per Month

Basic Info.

Model NO. XB-OTS-P Loading Method Dynamic Load Display Digital, LCD ( Linkable to PC ) Control Computer Control Weight 0-100Kg Power Source AC220V Max.Acceleration(G) 17 Max Capacity 2, 5, 10, 20, 50, 100, 200, 500kgf Can Be Setting Motor Servo Motor Test Speed 1~500 mm/Min Selectable Stroke Resolution 0.1mm Test Stroke 600mm (Without Grips) Force Precision ±0.5% Transport Package Standard Strong Wood Case Specification 580*580*1250mm Trademark OTS Origin Guangdong, China (Mainland) HS Code 90248000 Production Capacity 248 Sets Per Month

Product Description

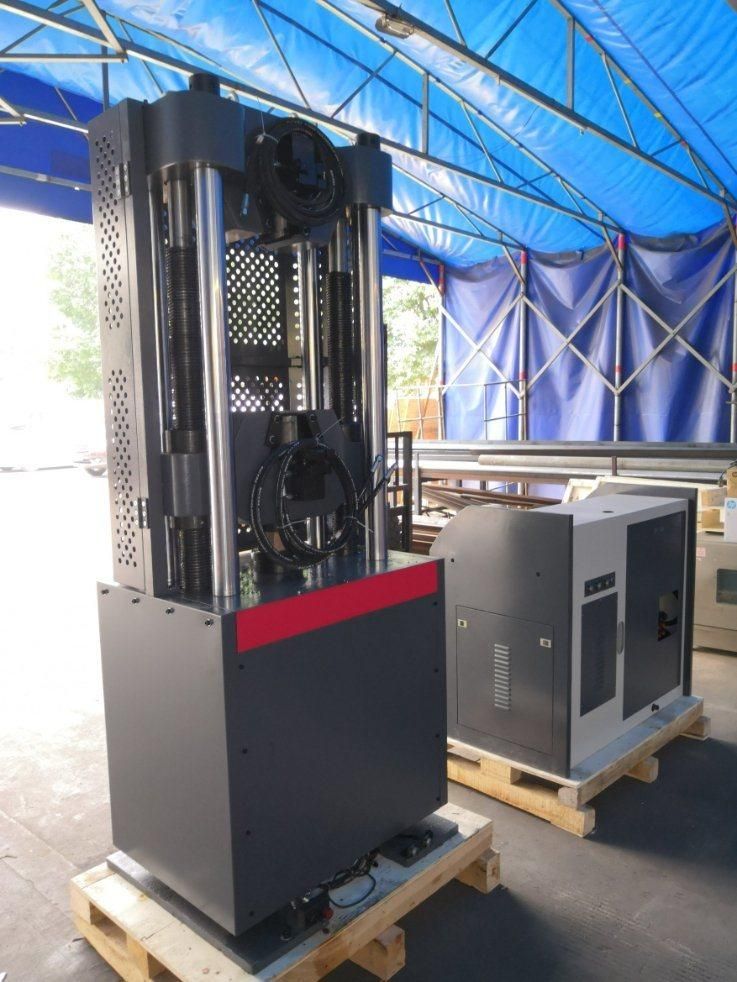

1000kn Hydraulic universal tensile test machine

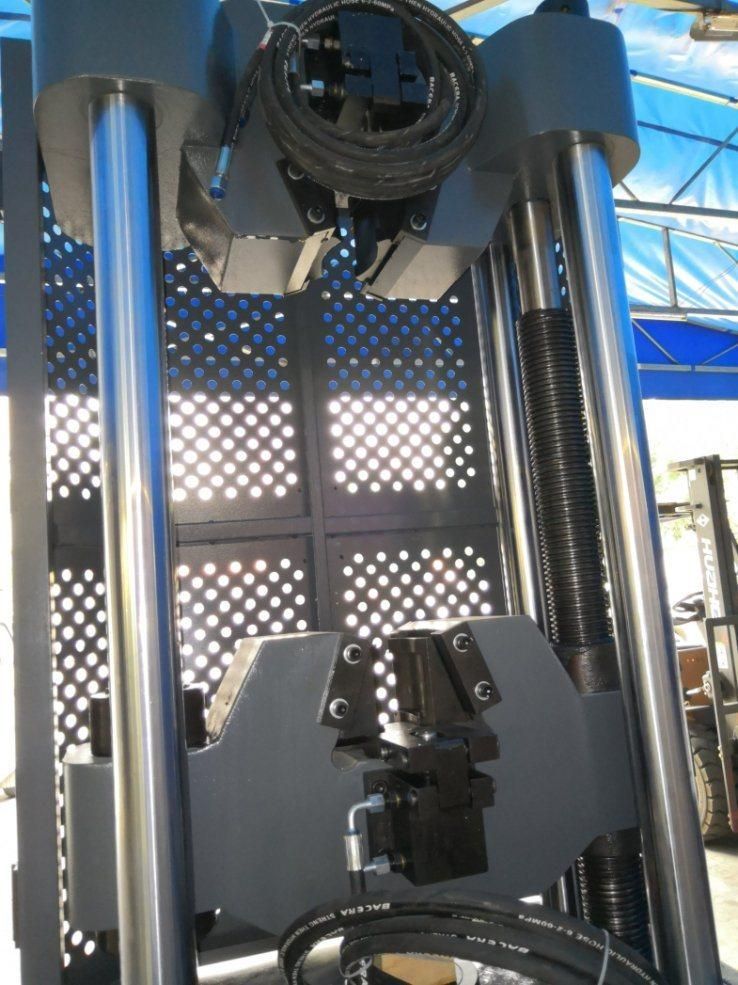

This machine is equipped with four columns, two lead screws and one under cylinder. The testing system adopts a digital control with multiple channels, the stress and strain rate satisfies GB/T228.1-2010 and another tensile test standard of metal material.


Drive system:

The column lifted by the adjustment of the speed reducer, the chain transmission mechanism and the lead screw are driven to realize the stretching and compressing space driven by motor.


Specification for 1000KN

Max Force(kN)	1000
Measurement Range of Test Force	1%-100%FS
Accuracy of force indication	1%
Resolution of Test Force	±400000 yards, the full name is not divided, the resolution is unchanged
Deformation measuring range	1%-100%FS
Deviation of Displayed Value	±1%
Resolution of Deformation	2
Accuracy of displacement display	±1%
Stress control speed (Mpa/s)	1~45
Stress controlled speed (mm/s)	0.001~0.5
Displacement control speed (mm/s)	0.02~3
Lower beam position adjustment mode	sprocket drive
Max Tensile Distance	800mm
Compression Distance	750mm
Piston Stroke	250mm
Column Spacing	685mm
Circular Sample Holding Range	Φ13-Φ40mm
Flat Sample Holding Range	0-30mm
Max Distance between two points of bend fulcrum	500mm
Bending support width	140mm



Clamping Mode	Hydraulic
Size of Host Machine	1100*7400*27000mm
Oil source size	1200*600*750mm
Power	4.5KW



Hydraulic System

The hydraulic oil in the tank enters the oil path driven by high pressure pump through the motor, and enters the cylinder by flowing through the high pressure filter, the differential valve group and servo valve. The computer sends signal to servo valve which controls the direction and opening, so as to control the enter flow of oil, and realize the control to test speed, constant velocity displacement.

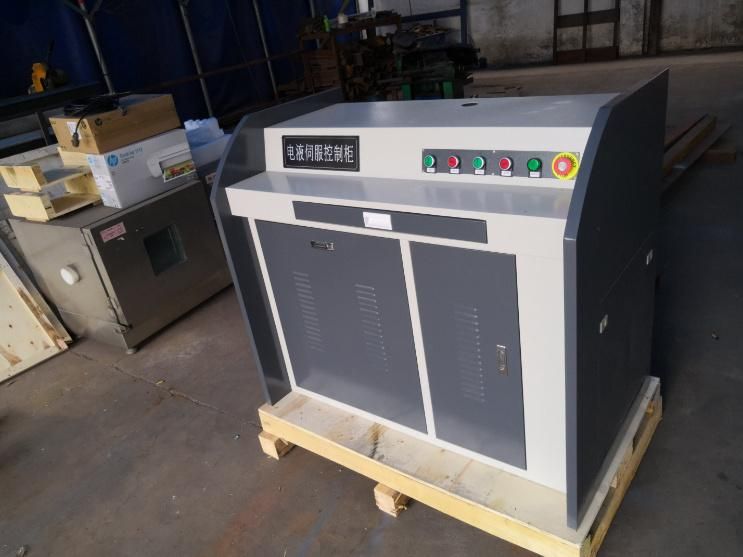

Control System

1. Tensile, compression, cutting, bending test can be acceptable;
2. Opening editing, importing and exporting of test, standard and test process are acceptable;
3. Test parameters can be edited.
4. Opening EXCEL form, can be edited.
5. Test result can be checked and printed easily;
6. Hierarchical management: Administrator and tester.

Safe Protection

1. Overload protection: when the test force is over 3% of the max force, the oil pumpand motor stop automatically.
2. Limit protection: When the piston rises to the upper limit position, the oil pump and motor stop automatically. When the beam drops to the set position, the reducer stops automatically.

6.Packing & Shipping

1.Strong standard wood case, inner plastic films wrapped for ensile Strength Testing Machine

2. Usually we delivery the equipment by air,by sea or by express. it depends on customer

7.Our Services:
We are here to help you.Services available:
Replacement manuals
Consumables and replacement parts
On-site maintenance and repair
Warranty support
Over-the-phone service support and advice
If you have an OTS chamber  , we will do our best to help you in whatever way we can.
Manuals:PDF files of manuals for current models are available free.Please contact us to request a copy.Older and printed copies at additional charge.
Service repair:We prefer you contact us direct at the factory with any problems you may be experiencing.We help diagnose the problem, arrange for any needed parts, and schedule a technician to do the repairs.Rarely can a local contractor get all that done for you as quickly as we can.We also guarantee the work .
8.Company Advantage
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø  ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
9.Customer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair











1.Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of biggest and professional manufacturer of Universal Tensile Testing Machine ; Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers.



If your machine doesn't work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.



2. What's the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.



3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized

machines according to your requirements. And we can also put your logo on the machine.

4. How to install and use the product?
We will send you operating instructions, English  video by Email. Or you can download on our official website directly.

Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use.  And if possible, we can also install your machine at site.
