• Model NO.：XB-OTS-P
• Loading Method：Dynamic Load
• Display：Digital, LCD ( Linkable to PC )
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Max Capacity：150,300j, 250,500j, 500,800j
• Impact Velocity (M/S)：5.4 M,S
• The Energy Range：0-500j M=267.9492n.M
• 0-250j：0-250j M=133.9746n.M10
• Raised Angle：150º
• Transport Package：Standard Strong Wood Case
• Specification：580*580*1250mm
• Trademark：OTS
• Origin：Guangdong, China (Mainland)
• HS Code：90248000
• Production Capacity：248 Sets Per Month

Basic Info.

Model NO. XB-OTS-P Loading Method Dynamic Load Display Digital, LCD ( Linkable to PC ) Control Computer Control Weight 0-100Kg Power Source AC220V Max Capacity 150/300j, 250/500j, 500/800j Impact Velocity (M/S) 5.4 M/S The Energy Range 0-500j M=267.9492n.M 0-250j 0-250j M=133.9746n.M10 Raised Angle 150º Transport Package Standard Strong Wood Case Specification 580*580*1250mm Trademark OTS Origin Guangdong, China (Mainland) HS Code 90248000 Production Capacity 248 Sets Per Month

Product Description

Computer Control Semiautomatic XB-OTS-W series

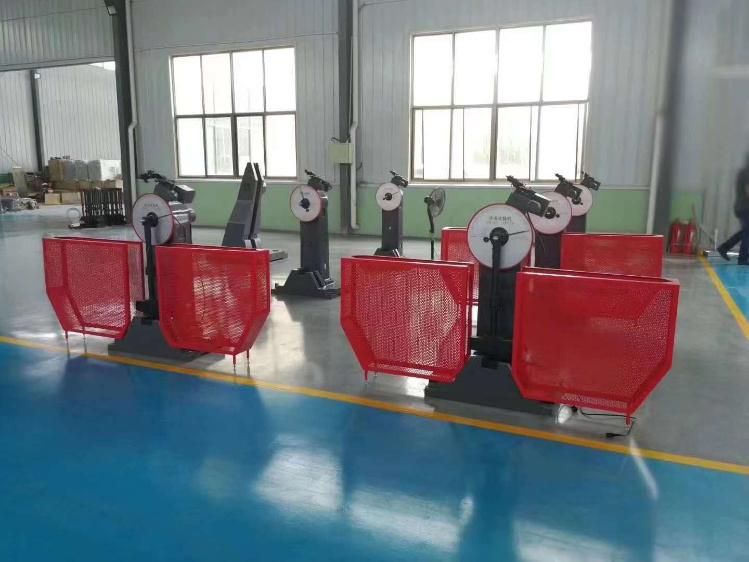

 XB-OTS-W series Computer Screen Display Pendulum Impact Testing Machine is mainly used to determine the anti-impact capability of metal materials under dynamic load. Carry out the functions of zero clearing and automatic return, capturing the value of lost impact energy and pendulum cycle by means  of  setting up with computer program, and the results can be monitored, stored and printed out. Control  box or computer program control is alternative operating method. OTS-W series impact testing machine  is adopted by many institutes and high-tech enterprises.

Usage And Characteristics

The equipment is used for the determination of the impact resistance performance of metal materials under dynamic loads, in order to determine the nature of the material under dynamic load .The use difference between the potential energy before impact and the remaining energy after the impact displayed in the dial on the way, to get absorbed power sample. With one 250J pendulum hammer, with the cross-section of the sample of (10 * 10)mm.
Operation with semiautomatic control, convenient operation, high work efficiency, use of the surplus energy can be automatically raise the pendulum, can embody its superiority during the continuous impact test.
Main Technical Specifications:


Specifications	XB-OTS-500W
Impact energy (J)	500J/250J
Dial scale range and division value:	The energy range: 0-500J  M=267.9492N.m 0-250J  M=133.9746N.m10
Impact velocity (m/s)	5.4
Raised angle	150º
Standard span (mm)	40
Distance between pendulum rotating center and specimen center (mm)	800
Round angle of jaws (mm)	R1.0-1.5  (1mm is special order)
Round angle of striking edge (mm)	R2.0-2.5 (8mm is special order)
The sample size: (mm)	10 x 10 (7.5 or 5) * 55
Overall dimensions (length * width * height)	2230×640×1480 mm
The impact of the blade angle:	30°
Specimen holder support surface angle:	11°
The impact blade thickness:	16mm
Angle measuring range:	0-360°
Angular resolution:	≤0.06°
The host Weight (KG)	580
Power supply:	three phase four wire 380V 50Hz 700W
Main Motor:	550W
Display	Computer Display

6.Packing & Shipping

1.Strong standard wood case, inner plastic films wrapped for ensile Strength Testing Machine

2. Usually we delivery the equipment by air,by sea or by express. it depends on customer

7.Our Services:
We are here to help you.Services available:
Replacement manuals
Consumables and replacement parts
On-site maintenance and repair
Warranty support
Over-the-phone service support and advice
If you have an OTS chamber  , we will do our best to help you in whatever way we can.
Manuals:PDF files of manuals for current models are available free.Please contact us to request a copy.Older and printed copies at additional charge.
Service repair:We prefer you contact us direct at the factory with any problems you may be experiencing.We help diagnose the problem, arrange for any needed parts, and schedule a technician to do the repairs.Rarely can a local contractor get all that done for you as quickly as we can.We also guarantee the work .
8.Company Advantage
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø  ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
9.Customer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair





1.Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of biggest and professional manufacturer of Universal Tensile Testing Machine ; Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers.



If your machine doesn't work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.



2. What's the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.



3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized

machines according to your requirements. And we can also put your logo on the machine.

4. How to install and use the product?
We will send you operating instructions, English  video by Email. Or you can download on our official website directly.

Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use.  And if possible, we can also install your machine at site.
