• Model NO.：TPC-3000
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Condition：New
• Power：Can Be Customized
• Transport Package：Standard Export Wooden Case
• Specification：SGS, CE, ISO
• Trademark：TOP
• Origin：Chongqing, China
• HS Code：8421299090
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. TPC-3000 Control Computer Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Under Condition New Power Can Be Customized Transport Package Standard Export Wooden Case Specification SGS, CE, ISO Trademark TOP Origin Chongqing, China HS Code 8421299090 Production Capacity 500 Sets/Month

Product Description

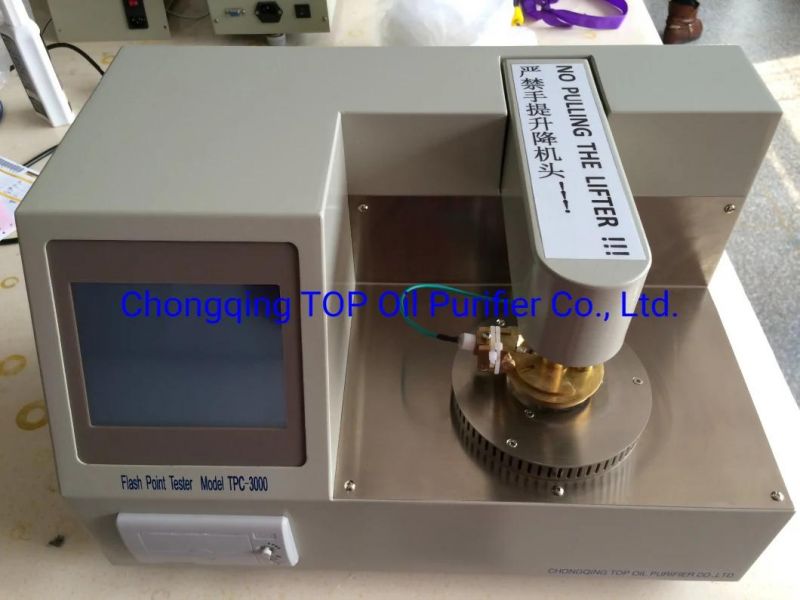

ASTM D93 D92 Automatic Flash Point Test Machine


Application:
The automatic flash point testing equipment(closed-up) is designed in accordance with ASTM D93, IGB261-2008, SH/T0315 standards etc. It adopts microcomputer technology that makes realization of completely automatic. This analyzer has the function of electronic ignition without air source, self fault checking, high accuracy of testing, strong repeatability, stable and reliable performance, simple operation. It is an ideal flash point analyzer(closed-up) for petroleum, chemical, power station, environmental, railway, scientific research etc.

Main Features:
1. Color touch LCD screen display, man-machine conversation interface with menu director
2. Adopts high speed signal processor: Precision simulation/digital converter circuit
3. Adopts PID control algorithm: Automatically adjust the heating curve according to standards
4. Built-in automatic atmospheric pressure detector: Automatic to detect and correct the atmosphere pressure and self-adjust the flash point.
5. Aspiration, stirring, ignition, testing, alerting, cooling, printing are fully automatic.
6. Automatically detect the whole testing process, opening the lid, ignition, alerting, cooling, printing, etc.
7. Security airless source of platinum alloy to ignite: Stable, reliable and high precision
8. Differential detection: Automatic correction of systematic bias; Automatic stop testing by over temperature detection and alert.
9. Equipped with parameters reminders like: Test date, test time
10. Data storage function: Store 300 groups testing data.



Display	color touch LCD display screen
Test method:	Thermocouple differential detection
Test range:	Room temperature - 350 ºC
Resolution	0.1ºC
Repeatability:	National standard:  flash point <104 ºC,allowed ±1ºC ;  flash point≥1 04 ºC allowed ±2ºC  National standard:  flash point≤ 110 ºC,allowed ±1ºC ;  flash point > 1 10 ºC allowed ±2ºC
Printer:	High speed thermal printer, paper size: 55 mm
te mperature Detection	Imported platinum resistance   ( Pt100Ω )
Ignition mode:	Automatically e lectronic ignition  with airs source
Self-checking :	automatic fault checking
Power consumption:	< 550w
Temperature:	Atmospheric temperature: 10ºC-45ºC, humidity: 30-80%
Power:	AC220V±10%
Dimension	397*305*240 mm
Weight:	About 15  kg

About us:

Hello Friend!
Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. We consists of departments respectively for technological development, machinery manufacture, instrument manufacture, quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, easy operation, excellent performance and lone service life.

Customer satisfaction is our utmost priority thus, customer service team is always on the brink to help our customers with their queries at any time.

We believe in working as a unit with an attitude of complete trust and understanding and are determined to provide safe, reliable and competitively priced products to our customers.



TOP Oil Purifiers uses single or multi-stage filtration to remove, particulate, free water, and small quantities of dissolved water if necessary. The systems are usually customized to suite the specific customer application. Oil "regeneration", "reclamation", "recycling" are all terms used to describe the process of restoring used, aged, contaminated oils to "like new" reusable condition. The reclamation process removes free water, most dissolved water, dissolved gas, particulate, carbon contamination, acids, oxidation by products, most color bodies, wear metals, and most additive chemicals.


TOP Oil Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers, high voltage testing equipment etc.
