• Model NO.：RAY-BL01
• Power：30W
• Fixture：PCB,FPC
• Computer：Can Connect Computer or Not
• Transport Package：Wooden Case
• Specification：340*450*630mm
• Trademark：RAY SHINE
• Origin：China
• HS Code：9024800000
• Production Capacity：80set,Month

Basic Info.

Model NO. RAY-BL01 Power 30W Fixture PCB/FPC Computer Can Connect Computer or Not Transport Package Wooden Case Specification 340*450*630mm Trademark RAY SHINE Origin China HS Code 9024800000 Production Capacity 80set/Month

Product Description

--Technology data--

Model	RAY-BL01
Load range	0~10N  (can optional 10N 20N 50N)
accuracy	0.1N
Max distance	120mm
Machine dimension	340*450*630mm
Load speed	0~55mm/min
Power supply	AC220V 50Hz
power	30W
Weight	20Kg


--Introduction--

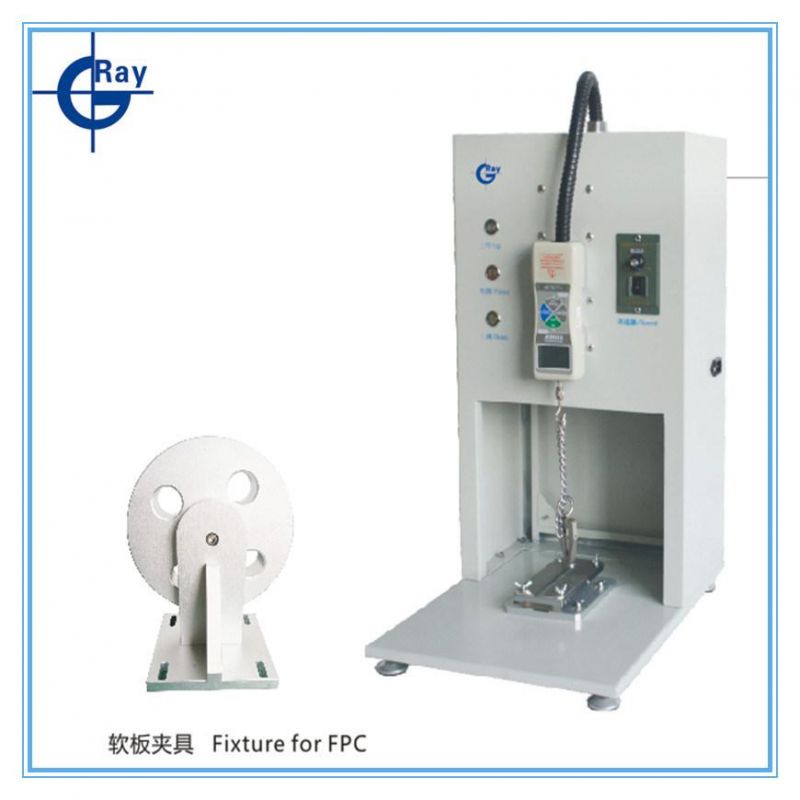

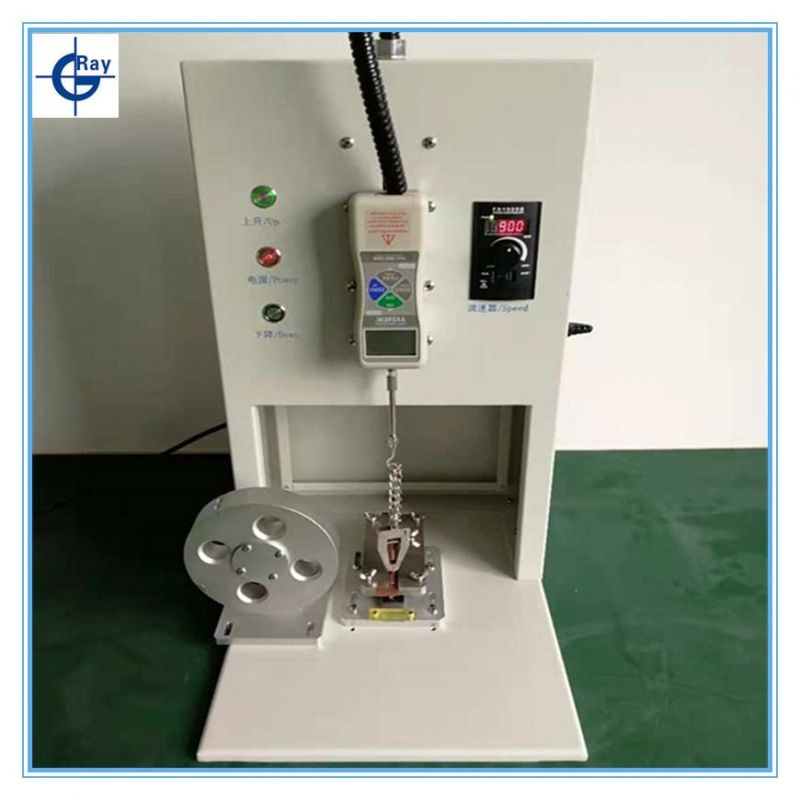

Peel strength tester is mainly used to measure the peel strength of cooper foil in CCL and PCB physics laboratory.



--Feature--
1.Equipment with high precision tension meter of LED digital screen, which is convenient for user to check the result.

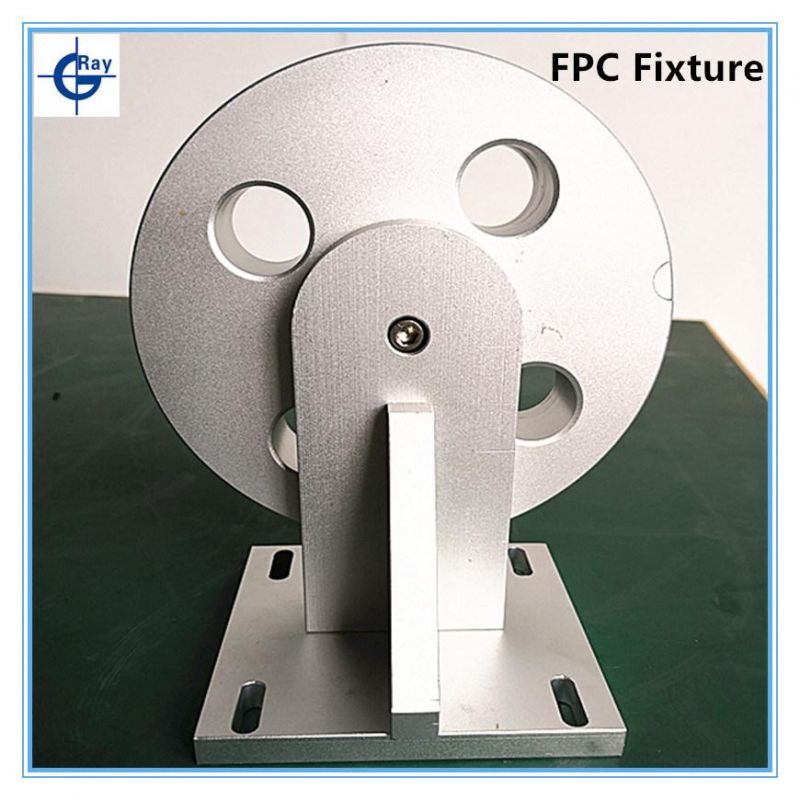

2.It designed for both FPC & PCB,can change fixture freely, suitable for different PCB.
3.Equipped with limited protect, special software can download.
4.Three different unit (N. fg, lb) can be changed freely.


--Testing method--
  Use Cooper clad laminate , cut three pieces to test, sample size should width>3.2mm*Length>50.8mm,sample edge should be soft, no burr or gap,then put the sample on the fixture, repeat testing three time .



--Company Introduction--
Ray-Shine Electronic (HK) Ltd (Dongguan Dinglu Electronic Tech Co.,Ltd)is a high&new-tech enterprise located in Dongguan city, Guangdong Province China. We expertised in PCB production and percision inspection machine equipment such as prepreg cutting machine, metallographic machines, line width testing machine, panel thickness testing machine, X-ray inspection machine ect, and PCB related consumables such as PP sheet, filter cartridge, protective film  researching, manufacturing, and selling and technology support.







--Packing and Shipping--

Packing Method:
Standard wooden package

Shipping Way:
1. By air, for sample and small package,international express like DHL, UPS, EMS...
2. By sea, for large package and quantity;
3. Other ways as customer requested.
