• Model NO.：TH Series
• Test Hold：Dia. 50mm
• Viewing Window：250*300mm
• Communication Interface：RS232, USB
• Material：SUS 304 Stainless Steel
• Transport Package：Wooden Case
• Specification：TH Series
• Trademark：ASLi
• Origin：Guangdong, China
• HS Code：8514191000
• Production Capacity：100 Sets,Month

Overview Product Description

• Test Hole (50 mm diameter)
• With Data Storage function by USB Flash Memory
• Protection (phase protection, overheat, over current etc)
• Water Tank with level detector
• Adjustable Shelf
• With RS485/232 output to computer
• Window Software
• Remote fault notification(optional)

Programmable Environmental Conditioning Chamber is also called environment testing machine, used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspectionfor all types of electronic products, electric appliance, and products from communication,Instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace Industries.

Temperature Humidity Climatic Test Chamber Features:
1. Graceful appearance, circularly shaped body, surface treated with mist strips. Easy to operate, safe and Reliable.
2. Rectangular double-paned viewing window for viewing sample under test, with interior light
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot And automatically recyclable.
5. French Tecumseh is used as compressor, with environment friendly refrigeration R23 or R404A
6. LCD display screen, capable of displaying the measured value as well as the set value and time.
7. The control unit has the functions of multiples segment program editing, with quick or ramp rates Control of temperature and humidity.
8. Casters are provided for ease of mobility, with strong positioning screws.
 Product Parameters
Programmable Environmental Chamber Technical Parameters: TH-150(A~F)  TH-225(A~F)  TH-408(A~F)  Internal Dimension
W*H*D (mm)  400*500*400  500*600*500  600*750*500  600*850*800  Internal Dimension
W*H*D (mm)  950*1650*950  1050*1750*1050  1200*1900*1150  1200*1950*1350  Temperature Range Low Temperature(A:25degres Celsius   B:0degres Celsius
C:-20degres CelsiusD:-40degres Celsius  E:-60degres Celsius
F:-70degres Celsius)
High Temperature 150degres Celsius  Humidity Range  20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is optional , need Dehumidifier)  Indication relolution/
Distribution uniformity
of temperature and humidity  0.1degres Celsius; 0.1% R.H/±2.0degres Celsius; ±3.0% R.H. Control Accuracy of
Temperature and Humidity  ±0.5degres Celsius; ±2.5% R.H. Temperature Rising/
Falling VelocityTemperature rising approx.  0.1~3.0degres Celsius/min ;
temperature fallingapprox.  0.3~1.0degres Celsius/min;
( Falling Min.1.5degres Celsius/min is optional) Inner and Outer Material Interior material is SUS 304# stainless steel, exterior is stainless steel or SEE cold-rolled steel with paint coated.  Insulation Material  Resistant to high temperature, high density, formate chlorine, ethyl acetum foam  insulation materials   Cooling System  Wind cooling or water cooling, (single segment compressor-40degres Celsius,

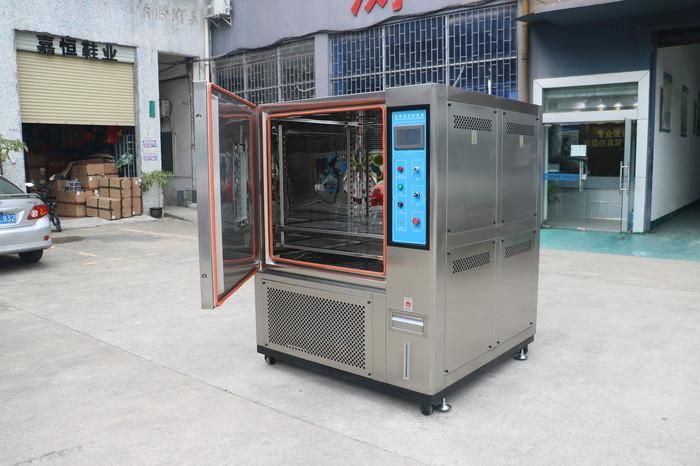

double segment compressor -70degres Celsius)  Protection Devices  Fuse-free switch, overloading protection switch  for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection  Optional Accessories    Inner door with operation hole , Recorder, Water Purifier, Dehumidifier  Compressor  French Tecumseh Brand, Germany Bizer Brand  Power  AC220V 1Ph 3 lines, 50/60HZ ,  AC380V 3Ph 5 lines , 50/60HZ  Approx. Weight (Kg)  150  180  250  320  Detailed Photos

Exhibition

If you need more information about Programmable Environmental Conditioning Chamber for Temperature Humidity Climatic Test,please don't hesitate to contact us.
