• Model NO.：SH-120
• Volume：480 Liters
• Viewing Window：Yes
• Transport Package：Wooden Case
• Specification：SH Series
• Trademark：ASLi
• Origin：Guangdong, China
• HS Code：85141090
• Production Capacity：300 Sets,Month

Technical Parameters:ModelSH-60SH-90SH-120SH-160SH-200Internal Dimension
W*H*D (mm)600*450*400900*600*5001200*800*5001600*800*5002000*1000*500External Dimension
W*H*D (mm)1100*600*12001400*950*12001900*1300*14002300*1300*14002700*1500*1500Lab TemperatureSaline test (NSS ACSS) 35±1 degree C ;Corrosion Test (CASS)50±1 degree CPressure Bucket
TemperatureSaline test method (NSS ACSS) 47±1 degree C / Corrosion Test (CASS)63±1 degree CLab Capacity(L)1102704808001500Saline Capacity(L)1525404040Saline Concentration5% concentration of NaCl, or every Liter 5% NaCl add 0.26g CuCl2H2OCompressed Air
Pressure(Kgf)1.0~6.0Spray Volume1.0~2.0ml /80cm2 /h(working at least 16 hours, and take the average value)Spray FormContinuous Spraying or Programmable SprayingPowerAC220V 1phase 3 lines15AWeight(Kg)6580120160200

Programmable Nss Cass Corrosion Salt Spray Test Chamber Features:
1. Adopt automatically or manually adding water system, can watered by itself while lack of water.
2. Precise glass spray nozzle, good uniformity, mist dropping naturally, no NaCl crystallized salt
3. Double over-heat protection devise and alarm when water short storage to ensure use safety.
4. Digitally temperature controller, PID controlled, precision of ± 0.1º C
5. Laboratory direct steam-heated, even heating speed, reducing the standby time.
6. Tapered Spray tower, even mist dropping
7. Saturated bucket is SUS #304, convenient for heating and humidifying, offer humidity for testing
8. Concentration of NaCl: 5%; PH of the water: 6.5-7.2 (Liquid)

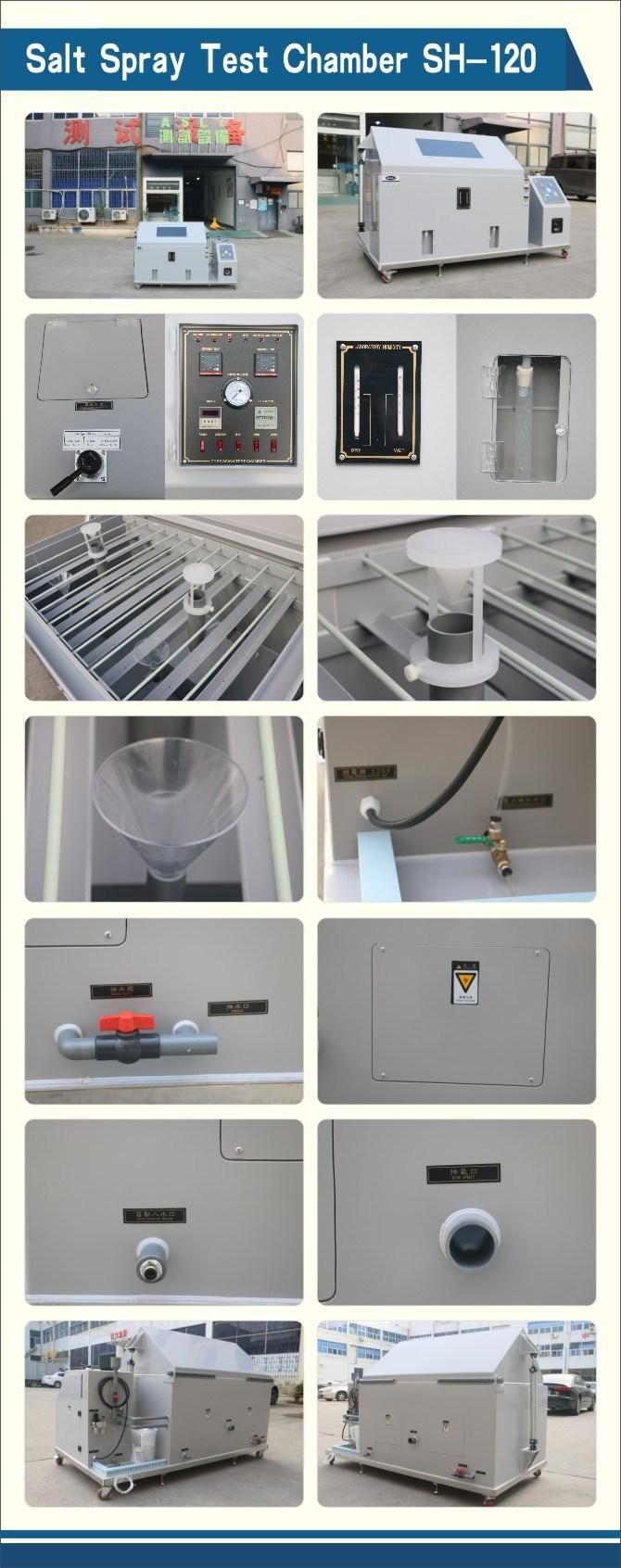

Pictures for reference:


Certificate of these the machine:
China official 3rd party calibration report
CE certiification


For the package:
1. PP film first
2. Vacuum package
3. PP film again
4. 10mm thickness PU foam to avoid collision
5. stronged plywood case
6. Standard ASLI CASE MARK


Warranty: one year free warranty for whole set machine,lifelong time maintainance.

After-sale service: feedback within 8 hours after get the call or email.

Service:OEM service,Design service,Buyer lable service.

Please feel free to contact us if any doubt or needs about Programmable Nss Cass Corrosion Salt Spray Test Chamber for Metal.
