• Model NO.：THR-12000-D
• Temp. Rising Speed：0.1~3.0degree C,Min
• Temp.Falling Speed：0.3~1.0 Degree C,Min
• Analytic Accuracy：0.1degree C; 0.1% R.H
• Uniformity：+,-2.5degree C; +,-3.5% R.H.
• Control Accuracy：+,-0.5degree C; +,-2.5% R.H.
• Cooling System：Water Cooling
• Transport Package：Wooden Case
• Specification：THR Series
• Trademark：ASLi
• Origin：Guangdong, China
• HS Code：8514191000
• Production Capacity：50 Sets,Month

Overview Product ParametersWalk-in Humidity Chamber Technical Parameters Model  THR-volume (low-temperature options : A ~ F)    Inner Dimensions(cm)  Customers designated space size and design   Temperature Range  Low Temperature(A:25degree C   B:0degree C   C:-20degree C  D:-40degree C
 E:-60degree C   F:-70degree C ) High Temperature 80degree C
(80degree C  ~150degree C  is optional)  Humidity Range  20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need
dehumidifier) Indication Resolution/
Distribution Uniformity of
Temperature & Humidity  0.1degree C ; 0.1% R.H/±2.5degree C ; ±3.5% R.H.  Control Accuracy of
Temperature and Humidity  ±0.5degree C ; ±2.5% R.H.  Temperature Rising/
Falling Velocity Temperature rising approx.  0.1~3.0°C/min;
temperature falling approx. 0.1~1.0°C/min;
( The Falling Velocity Min.1.0°C /min is a optional)  Cooling System  Water cooled Protection Devices  Fuse-free switch, overloading protection switch  for compressor,high and
low voltage coolant protection switch, over-humidity & over-temperature protection
switch, fuses,  fault warning system, water short storage warning protection  Optional Accessories  Slope for cart , Recorder, Water Purifier, Dehumidifier  Compressor  French Tecumseh Brand, Germany Bizer Brand  Power  AC 380 V(±10%),50/60HZ ,3 phase  5 Lines

Programmable Temperature And Humidity Chamber Features:
1. Graceful appearance, circularly shaped body, surface treated with mist strips and plane Handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular double-paned viewing window for the observation of sample under test With interior lights
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into The humidifying pot and automatically recyclable.
5. French Tecumseh brand is used as compressor, with environment friendly refrigeration R23, R404A
6. LCD display screen, capable of displaying the set point and actual value at the same Time
7. The control unit has the functions of multiples segment program editing, with ramp rates Control of temperature and humidity.
8. Casters are provided for ease of mobility, with strong positioning screws.

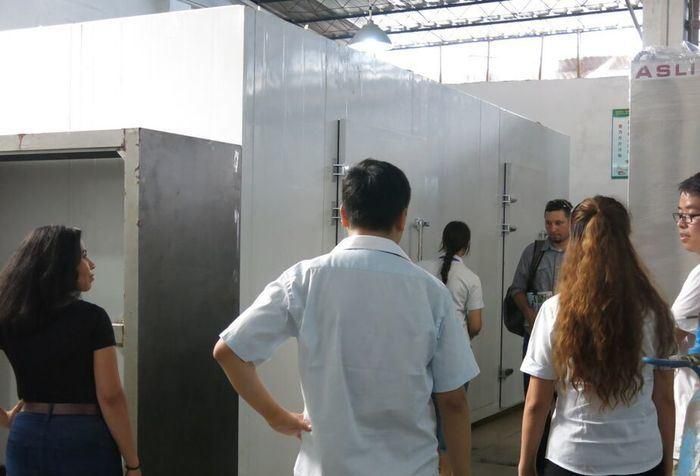

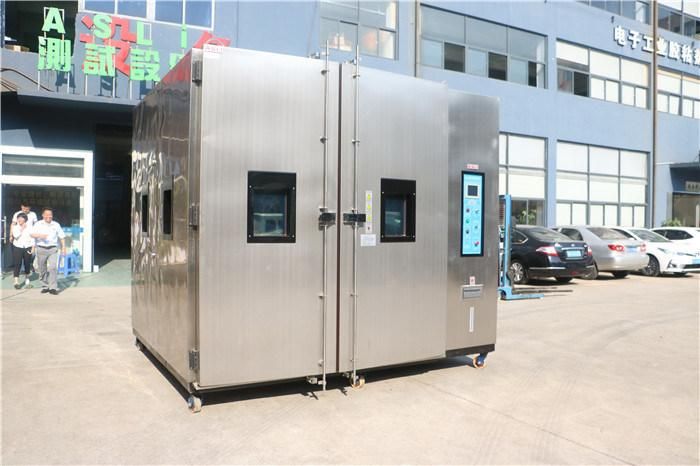

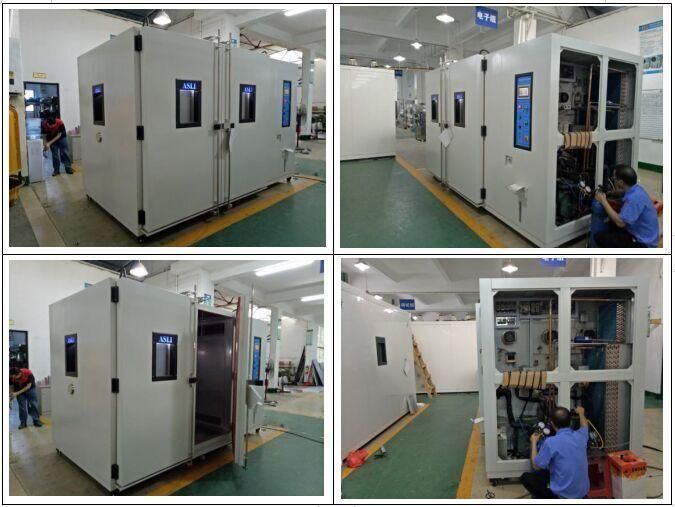

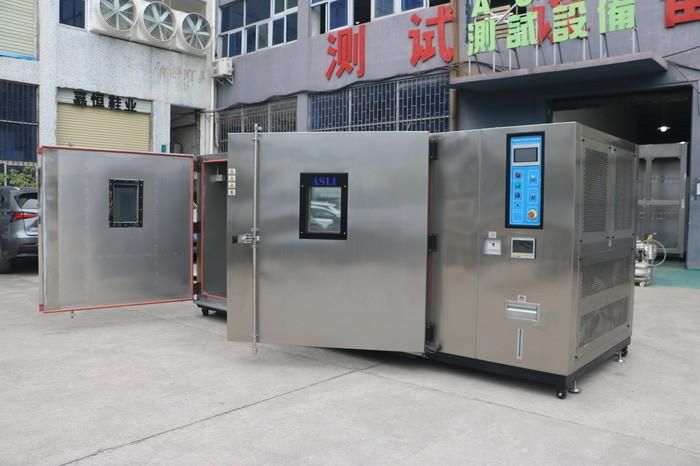

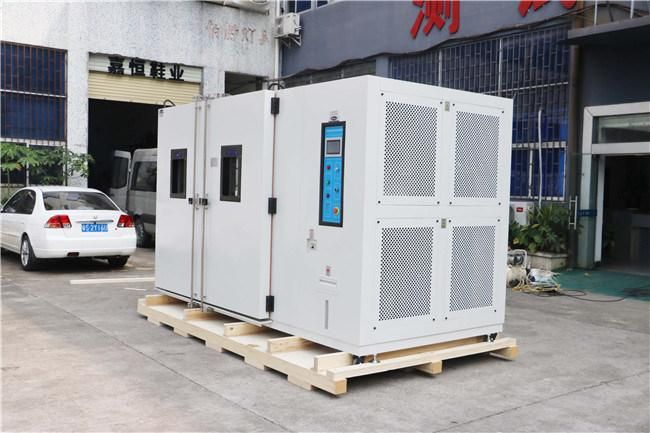

 Detailed PhotosWalk in Temperature humidity Test chamber pictures:



If you need more information about Walk in Climatic Test Chamber Programmable Temperature And Humidity Chamber, please don't hesitate to send your inquiry to us.
