• Model NO.：TS-49-B
• Conversion Time：Less Than 5 Seconds
• Temperature Control Accuracy：+,-0.5 Degree C
• Distribution Accuracy：+,-2degree C
• Compressor：French "Tecumseh" Brand
• Application：Electronic Devices
• Test Hole：Dia. 50mm
• Transport Package：Wooden Case
• Specification：TS Series
• Trademark：ASLi
• Origin：Guangdong, China
• HS Code：85141910
• Production Capacity：300 Sets, Year

Overview Product Description

Programmable thermal shock chamber price is used to test the change of material under extremely high temperature and extremely low temperature environment that continue alternation in the shortest time,Testing the chemical changes or physical damage of material caused by the thermal expansion and contraction. Testing box divided two parts, one is high temperature region, another is low-temperature region, the testing sample placed on the moving basket, using unique heat storage and cool storage,the cylinder taking basket moves up and down in the hot and cold region to complete the hot and cold temperature impact testing;

Product Parameters Technical ParametersModel  TS-42(A~C) TS-80(A~C) TS-150(A~C) TS-252(A~C) Internal Dimension
W*H*D ( mm) 400*350*350 500*400*400 600*500*500 700*600*600 External Dimension
W*H*D (mm) 1400*1800*1400 1550*1950*1550 1600*2000*1700 1700*2100*1750 Temperature Range
of Testing zone Type A:-40 degree C
~+150degree C
(200degree C is Optional) Type B:-55degree C ~
+150degree C
(200degree C is Optional) Type C:-65degree C ~+150degree C
(200degree C is
Optional)  High temperature Range of Testing zone:
+60degree C~+150degree C(200degree C is Optional);
Low Temperature Range of Testing Zone: -10degree C~-40degree C/
-55degree C/-65degree C Exposure Time of
High/Low Temperature Exposure Time of High Temperature:+60degree C~+150degree C
(200degree C is Optional)  30Mins Exposure Time of Low Temperature:-10degree C~Type A:-40degree C/
Type B -55degree C/ Type C -65degree C  30Mins Temperature of
Heat-Storing Slot/
Heating Time  RT~200degree C/About  45mins Temperature of
 Cool-storing Slot/
Cooling Time RT~-75degree C/ About 100mins Temperature
Recovery Time/
Conversion Time ≤5min/≤5sec  Control Accuracy /
Distribution Uniformity   ±0.5degree C/±2degree C Internal and Externa
l Material Material of the inner box is SUS 304# stainless steel,of
the outer box  is stainless steel or  SEE cold-rolled steel
with paint coated. Insulation Material High temperature  resistant, high density, formate chlorine,
ethyl acetum foam insulation materials  Mechanics P.I.D+S.S.R+ Micro-computer balanced temperature control system Cooling System Semi-hermetic double-stage compressor(water-cooled type) /
Hermetic double-stage compressor (air-cooled type) Security Protection
 Devices Non-fuse breaker, high and low pressure protective switch
of the compressor ,refrigerator
high-pressure protective switch, failure warning
system, electronic alarm Accessories Viewing window(special order) Compressor French "Tecumseh" Brand, Germany Bizer Brand Power AC220V 1 phase  3 lines,50/60HZ, AC380V 3phase  5 lines,50/60HZ Weight (Approx) 450 600 750 950
Thermal Shock Testing Equipment Features:
1. It is divided into three zones: High temperature zone, low temperature zone, and testing zone. The test sample is in static mode.
2. Using touch-control graph control as operation interface, easy to operate.
3. Applying wind route conversation to the shock method to distribute temperature to the testing zone for cold and thermal shock measurement.
4. For high temperature shock or low temperature shock, max. Time is up to 999H, and max. Circulation cycles are 9999 times.
5. The system can be used for automatic Circulation Shock or manual selective shock.
6. Adopt binary cooling system, with quick cooling effect. Cooling method is water cooling.
7. Can entering normal temperature. RS-232 and RS-485 communication.

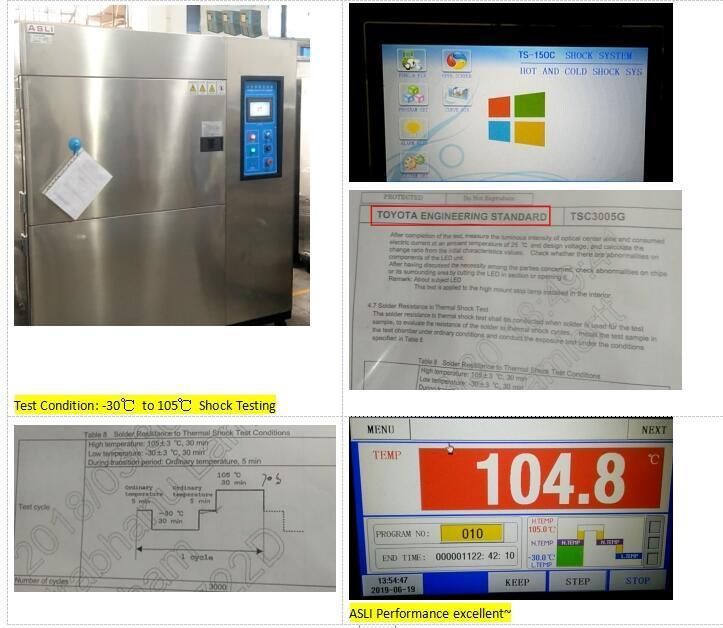

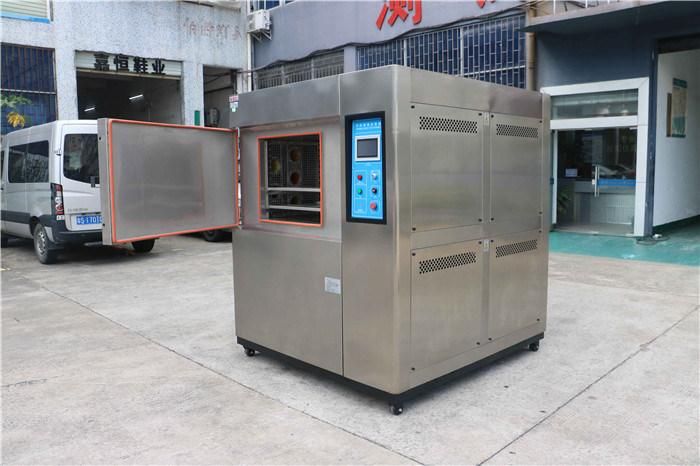

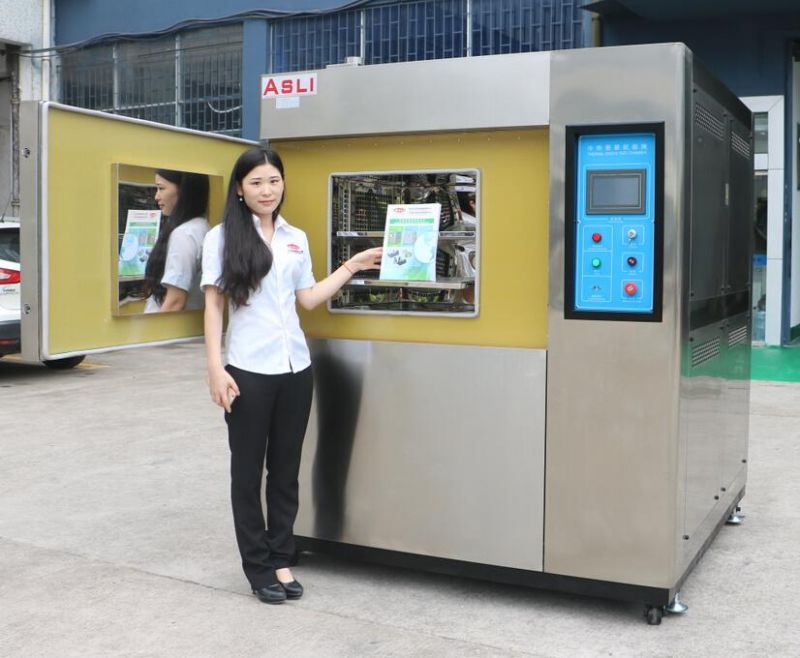

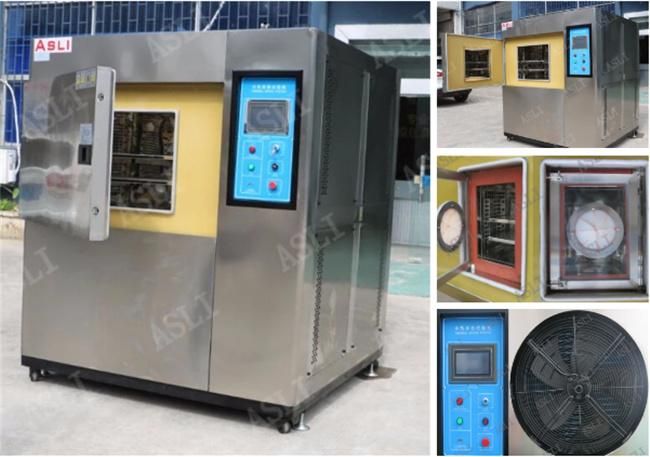

 Detailed Photos

Exhibition

Please feel free to contact us if any needs about Standard Thermal Shock and Fast-Changing Temperature Environmental Test Chambers.
