Capacitance and Inductance Tester with Automatically Identify Testing Object Function

Wuhan GDZX Power Equipment Co., Ltd.
  • After-sales Service：Provided
  • Warranty：1 Year
  • Storage：50 Sets
  • Function：Short circuit protection
  • Printer：Panel thermal printer
  • Rated output：2V,20V,500VA

Base Info

  • Model NO.：ZX-CHA
  • Current range：0-1000A
  • Inductance range：0.1mH~5mH, 5mH~50H
  • Capacity range：5~20000kV
  • Rated voltage：power frequency 220V+,-10%
  • Rated frequency：50Hz
  • Ambient temperature：-10~+ 50 Centigrade
  • Dimensions and weight：370*260*220mm,12kg
  • Transport Package：Packed in Wooden Cases
  • Specification：Customized
  • Trademark：GDZX
  • Origin：China
  • HS Code：9030339000
  • Production Capacity：1200sets,Year

Description

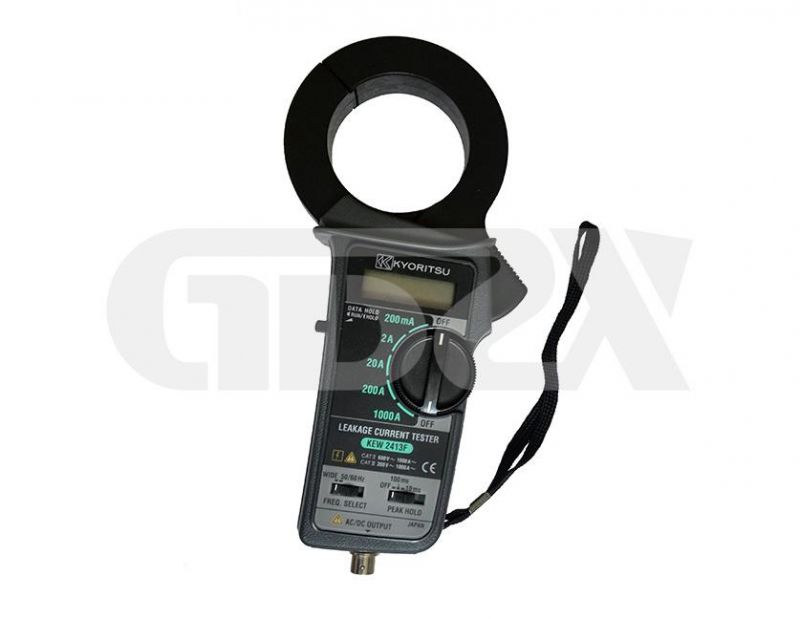

ZX-CHA capacitance and inductance tester (with imported clamp) adopts bridge circuit structure, with standard capacitor and tested capacitor as two arms of bridge circuit. When the capacitance value of the capacitor is measured, the test voltage is applied to the standard capacitor and the tested capacitor at the same time. The processor collects the current signal flowing through the sensor and processes to obtain the capacitance value of the tested capacitor.

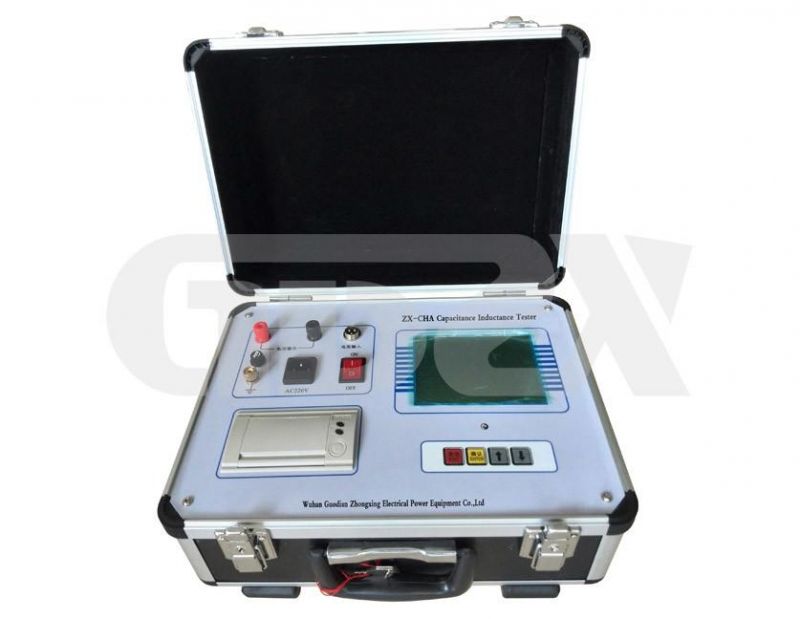

 Capacitance and Inductance Tester with Automatically Identify Testing Object Function

Capacitance and Inductance Tester with Automatically Identify Testing Object FunctionCapacitance and Inductance Tester with Automatically Identify Testing Object Function
Technical parameters

1. Measuring range and accuracy of the instrument:1) Capacitance measurementa. Measurable capacitance range: 0.1μF~3,300μF
b. Range of measurable capacity: 5~20,000kvar
c. Measurement accuracy: ± (1.0% reading + 0.02μF)
d. Resolution: 0.001μF2) Current measurementa. Current measurement range: 0~199.9mA; 0~1.999A; 0~19.99A; 0~199.9A0~1000A
b. Measurement accuracy: ± (3.0% reading + 0.05A)
c. Resolution: 0.01A3) Inductance measurementa. Inductance measurement range: small inductance 0.1mH~5mH; Large inductance mode 5mH~50H
b. Inductance measurement range: 50mΩ ~ 20KΩ
c.Measurement accuracy: ± (3.0% reading + 0.05mH)
d. Resolution: 0.01mH4) Resistance measurement range:
 a. Resistance measurement range: small resistance 50mΩ~1Ω; Large resistance mode 1Ω~20KΩ
b. Measurement accuracy: ± (3.0% reading + 0.05Ω)
c. Resolution: 0.01 Ω2. Working power1) Rated voltage: power frequency 220V ± 10%
2) Rated frequency: 50Hz;
3) Rated output: 2V / 20V / 500VA3. Working conditions:1) Ambient temperature: -10 ºC~+ 50 ºC
2) Relative humidity: ≤90%4. Printing method:LCD display with English characters;
Panel-type high-speed printer5. Dimensions and weight:370*260*220mm/12kg

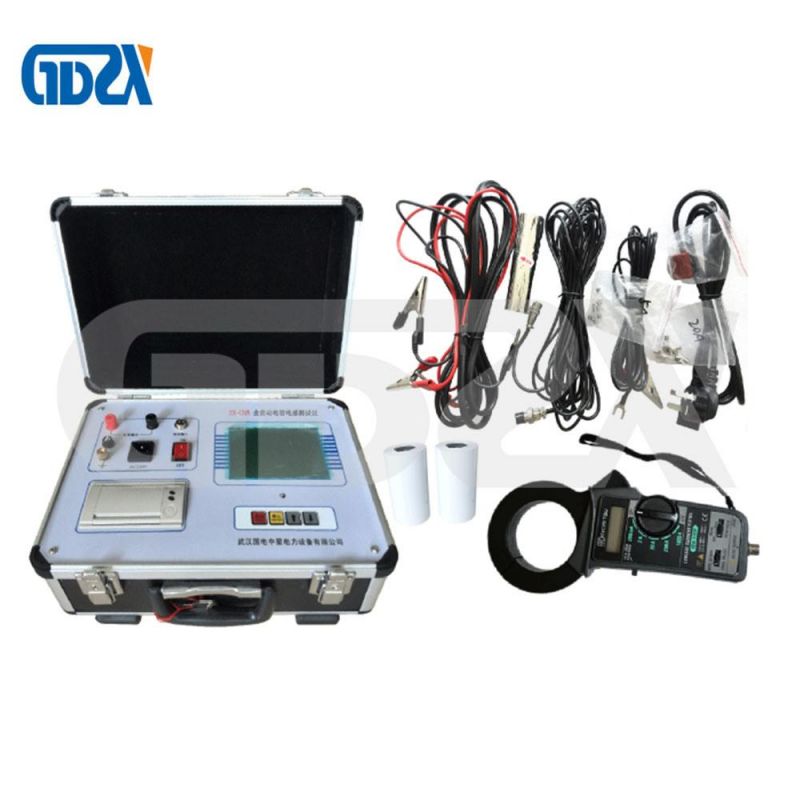

Capacitance and Inductance Tester with Automatically Identify Testing Object Function

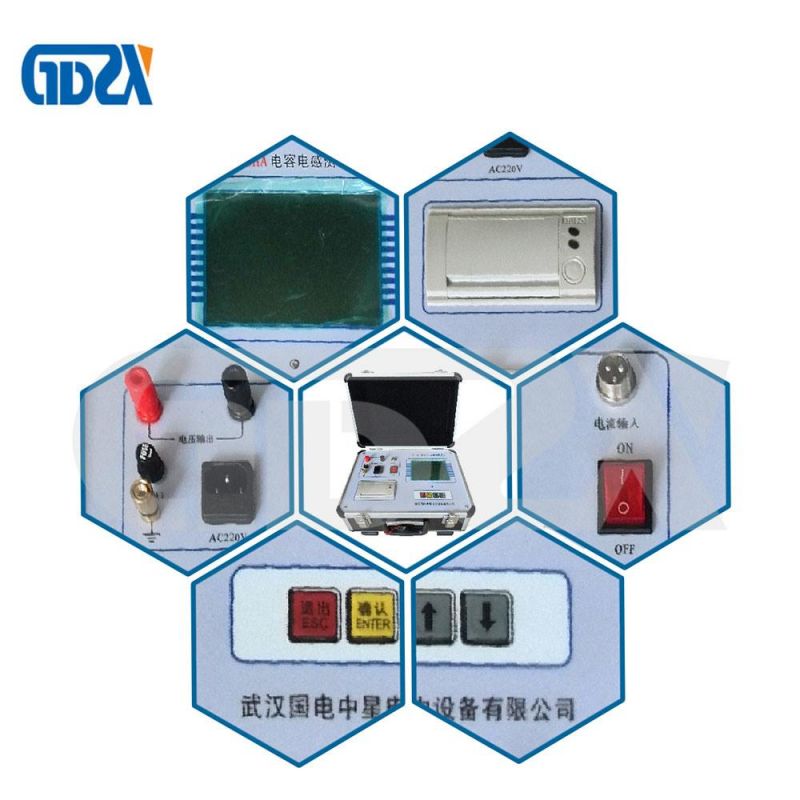

Capacitance and Inductance Tester with Automatically Identify Testing Object Function
PACKING AND SHIPPING

(1)We will ship products within 8-20 working days after the receipt of confirmation of your payment.

(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.(5)After shipping, we will remain attentive till goods well received. If you need detailed specification, please feel free to contact us.

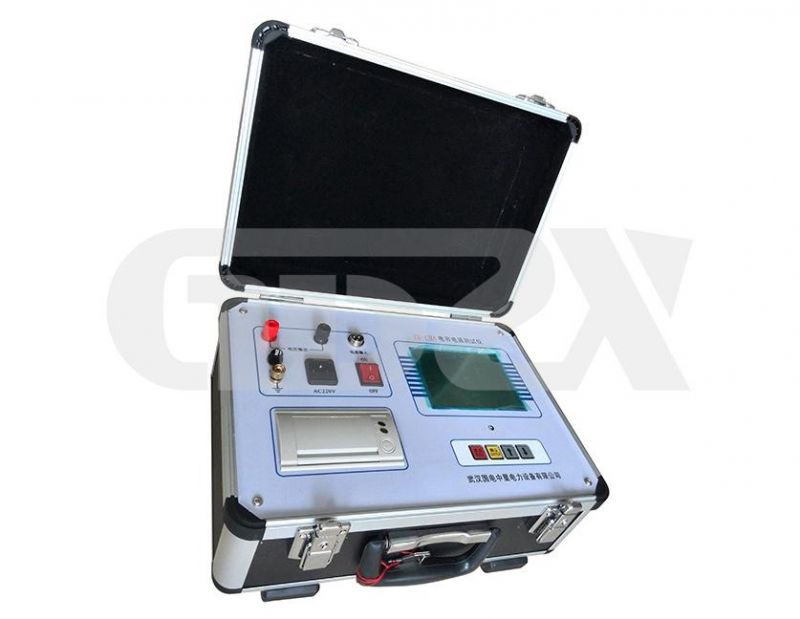

Capacitance and Inductance Tester with Automatically Identify Testing Object Function
