• Model NO.：THV-1000-D
• Power Source：AC380V
• Oil Cylinder Position：Under
• Internal Dimension：W1000*H1000*D1000mm
• Temperature Range：-70~150 Degree
• Humidity Range：20%R.H.~98%R.H.
• Vibration Direction：Vertical Horizontal Vibration
• Max. Speed：2.0m,S
• Max. Acceleration：1000m,S2 ( Non Load)
• Temp. Control Accuracy：+,-0.5 Degree
• Interior Material：SUS#304 Stainless Steel
• Transport Package：Wooden Case
• Specification：1000 liters
• Trademark：ASLi
• Origin：Guangdong, China
• HS Code：8514109000
• Production Capacity：100 Sets,Year

Climatic Temperature Humidity Electrodynamic Vibration Combined Shaker Testing SystemChoose proper vibration test bench according to customer's test condition, the technical parameters please take  Electrodynamics Type Vibration Tester's parameters in this catalog for reference

Temperature Humidity Electrodynamic Vibration Combined Shaker Features:

1. A combined structure of test chamber and refrigerating system boasting compact and graceful design; independent console.
2. Original refrigerating compressor unit and its main accessories are internaltional famous brand;
3.LCD color touch screen controller, capable of automatic control of temperature humidity programs;
4. RS-232 communication. To meet customer's unique demands, users may choose from different models of vibration test bench to ensure that in addition to good cool,
5. Heat and air seal system, this vibration bench will also boasts remarkable effect of mechanical vibration


For Vibration Shaker:

Model	ES-3	ES-3a	ES-6	ES-6a	ES-10	ES-20	ES-30	ES-40	ES-50
Rated Sine Force (N)	3000	3000	6000	6000	10000	20000	30000	40000	50000
Rated Random	3000	3000	6000	6000	10000	20000	30000	40000	50000
Force (N)	3-3500	3-3500	3-3500	3-3500	3-3000	3-3000	3-2800	3-2800	3-2700
Frequency Range (Hz)	1000	400	1000	1000	1000	1000	1000	1000	1000
Rated Acceleration (m/s2)	1.6	1.6	1.6	1.6	1.8	1.8	1.8	1.8	1.8
Rated Speed (m/s)	25	40	25	51	51	51	5l	51	51
Rated displacement (p-p) mm	100	120	180	250	270	300	450	500	750
Max. Loading (Kg)	3.5	9	6.5	12	14	30	40	50	50
moving coil (Kg)	Φ150	Φ230	Φ230	Φ230	Φ240	Φ320	Φ450	Φ450	Φ450

 For Vertical Expander:
VT vertical extended-bench and specified clamps, precision calculated, elaborate design, to ensure the customer acquired the best performance according to perfect structure, high quality material and workmanship.

 For Horizontal Expander

Within small loading bench to realize higher acceleration and working frequency, to improve the loading capacity and performance of whole machine bench.

Horizontal bench and vibration bench are integral type, with perfect structure, convenience to install and adjust.

Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.

Built-in oil pump, good structure and easy operating.

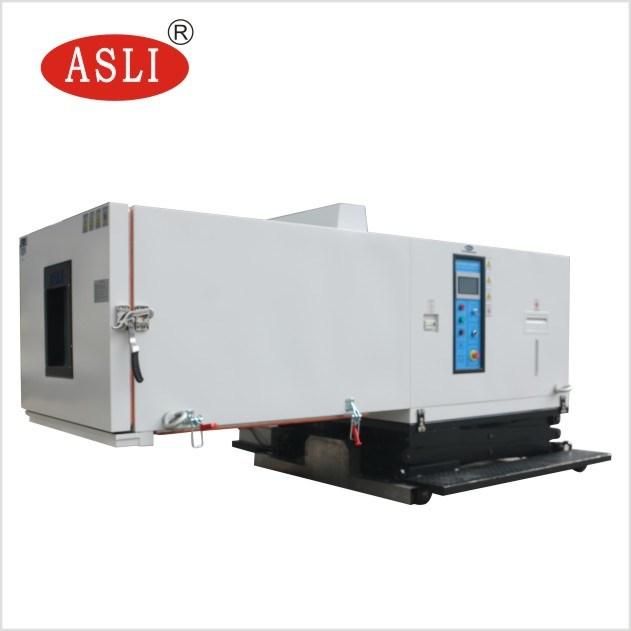

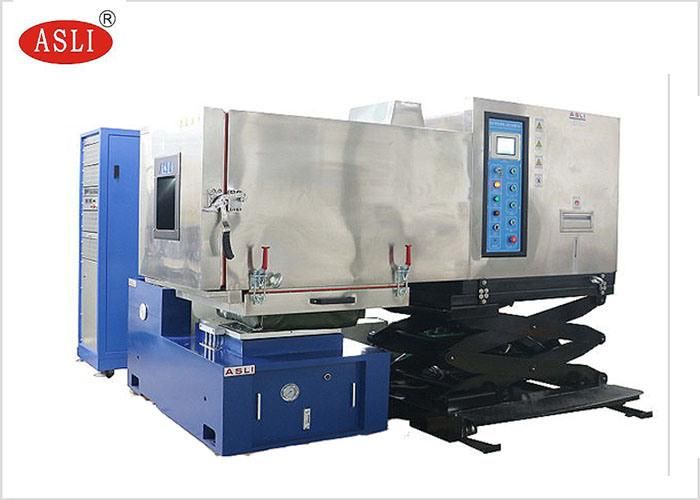

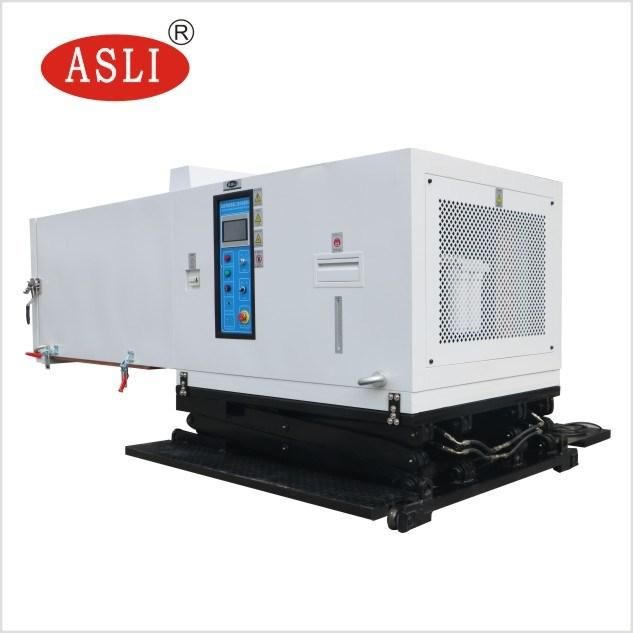

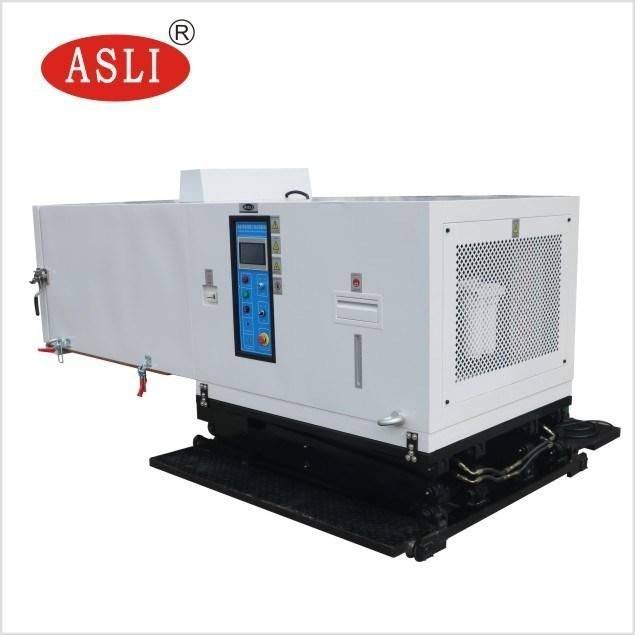

Pictures for reference:


Please feel free to contact us if any needs about Climatic Temperature Humidity Electrodynamic Vibration Combined Shaker Testing System.
