Electromagnetic Vibration Resistance Test Equipment/Vibration Shaker for Automotive Parts
Ai Si Li (China) Test Equipment Co., Limited- After-sales Service:Lifelong Technical Service Support
- Warranty:AC380V
- Type:Vibration Testing Machine
- Accuracy Grade:1
- Load Way:Electronic Load
- Loading Method:Dynamic Load
Base Info
- Model NO.:ES-10
- Display:Digital
- Weight:1000-2000Kg
- Power Source:AC380V
- .Rated Sine Force (N):1000 to 3500000
- Rated Random Force (N):1000 to 3500000
- Frequency Range (Hz):3 to 3500
- Rated Acceleration(M/S2):400 to 1000
- Rated Velocity(M/S):1.2 to 1.8
- Rated Displacement (P-P, mm):25 to 51
- Transport Package:Wooden Case
- Specification:ES Series
- Trademark:ASLi
- Origin:Guangdong, China
- HS Code:90312000
- Production Capacity:30 Sets,Month
Description
Overview
Product Description
Product ParametersElectrodynamic Vibration Shaker System Technical Parameters Model Rated
Sine
Force (N) Rated
Random
Force (N) Frequency
Range (Hz) Rated
Acceleration
(m/s2) Rated
Speed
(m/s) Rated
displacement
(p-p)mm Max.
Loading (
Kg) Moving
coil(Kg) Dimension of
Moving coil
(mm) ES-1 1000 1000 3-3500 400 1.2 25 70 2.5 Φ150 ES-2 2000 2000 3-3500 800 1.6 25 70 2.5 Φ150 ES-2a 2000 2000 3-3500 300 1.6 40 70 8 Φ230 ES-3 3000 3000 3-3500 1000 1.6 25 100 3.5 Φ150 ES-3a 3000 3000 3-3500 400 1.6 40 120 9 Φ230 ES-6 6000 6000 3-3500 1000 1.6 25 180 6.5 Φ230 ES-6a 6000 6000 3-3500 1000 1.6 51 250 12 Φ230 ES-10 10000 10000 3-3000 1000 1.8 51 270 14 Φ240 ES-20 20000 20000 3-3000 1000 1.8 51 300 30 Φ320 ES-30 30000 30000 3-2800 1000 1.8 5l 450 40 Φ450 ES-40 40000 40000 3-2800 1000 1.8 51 500 50 Φ450 ES-50 50000 50000 3-2700 1000 1.8 51 750 50 Φ450 ES-60 60000 60000 3-2700 1000 1.8 51 750 60 Φ450 ES-100 100000 100000 3-2500 1000 1.8 51 1000 90 Φ450 ES-120 120000 120000 3-2200 1000 1.8 51 1100 90 Φ500 ES-160 160000 160000 3-2100 1000 1.8 51 1500 150 Φ600 ES-200 200000 200000 3-2000 1000 1.8 51 2500 200 Φ650 ES-350 350000 350000 3-1700 1000 1.8 51 4500 300 Φ870
High Frequency Electrodynamics Type Vibration Tester Features:
1. Well designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table capacity,Improve low-frequency performance.

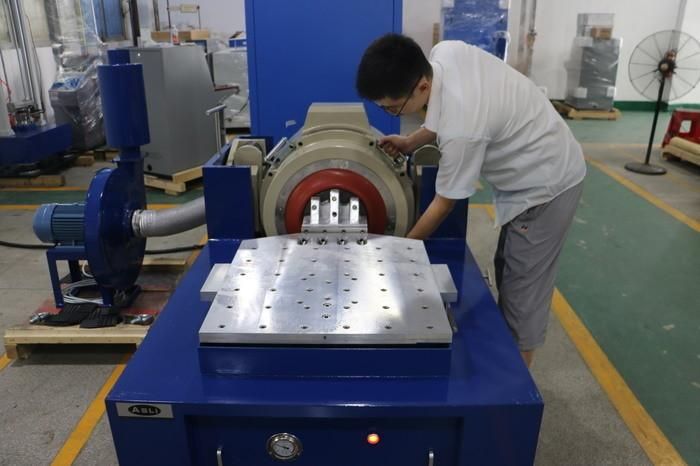

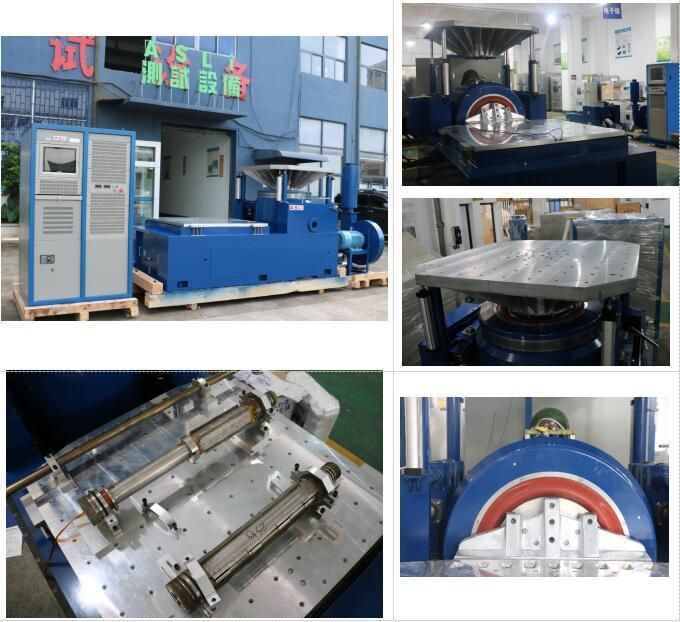

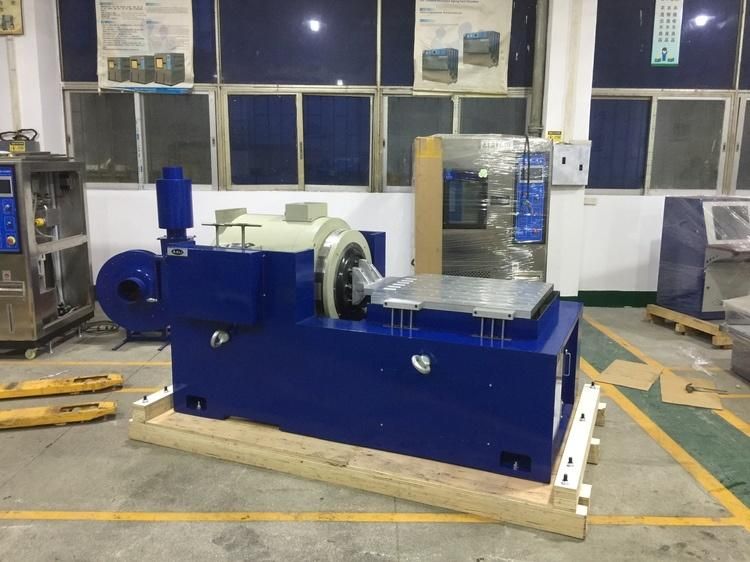

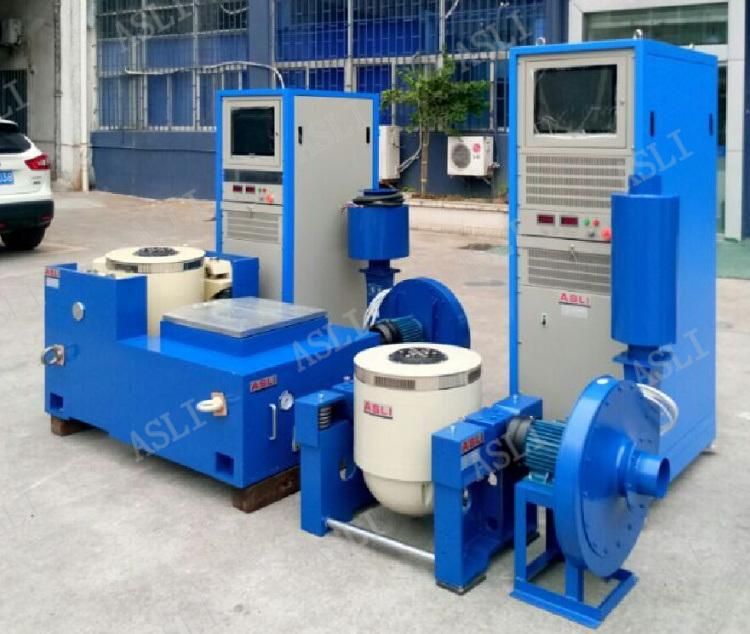

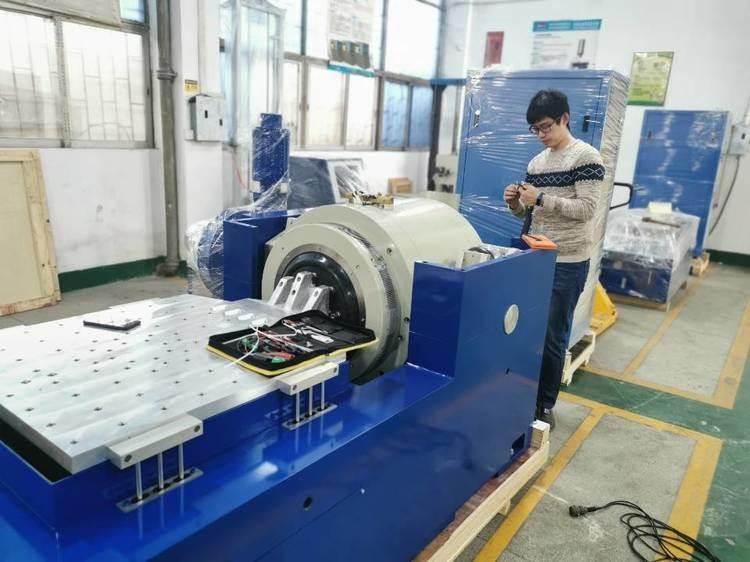

Detailed Photos
1.High quality guarantee.
2.Shipment with professional documents.
3.Packing as your request, with photo before shipment.
4.Reply within 48 hours and provide solution within 3 working days
5.Professional after-service from our engineers.
6.Warranty period 12 monthes.
Our advantage
1.Professional technology support.
2.Full experience of large numbers containers loading in Chinese sea port.
3.Fast shipment by reputed shipping line.
4.Best service after shipment with emails.
5.We are professional test equipment manufacturer in China with excellent experience and skills, also have best quality products
Our concept
1.Client is first. We are trying to bring maximum profit to our clients and offer best quality products
2.Credibility is the most important.
3.Quality control is our life.
4.Great sense of responsibility.
Our reputation is built on superior quality and outstanding customer service.
Please feel free to contact me if any needs about Electromagnetic Vibration Resistance Test Equipment/Vibration Shaker for Automotive Parts.
We are manufacturer of High Frequency Electrodynamics Type Vibration Tester Price series products, adopted the 'double-magnetic circuit structure', ' self-generated skeleton action circles', 'Airborne Support' and 'roller bearings and linear Guidance', 'trunnion isolation' advanced modern technology and special technology, can be completed In X, Y, Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the Classical (half - sine, trapezoidal, saw tooth wave) pulse and shock response spectrum test. These
Products are widely used in national defense, weapons, aviation, aerospace, communications, Electronics, electrical appliances, communications, home appliances and other fields.Product Parameters
Sine
Force (N)
Random
Force (N)
Range (Hz)
Acceleration
(m/s2)
Speed
(m/s)
displacement
(p-p)mm
Loading (
Kg)
coil(Kg)
Moving coil
(mm)
High Frequency Electrodynamics Type Vibration Tester Features:
1. Well designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table capacity,Improve low-frequency performance.
Detailed Photos
Our service
1.High quality guarantee.
2.Shipment with professional documents.
3.Packing as your request, with photo before shipment.
4.Reply within 48 hours and provide solution within 3 working days
5.Professional after-service from our engineers.
6.Warranty period 12 monthes.
Our advantage
1.Professional technology support.
2.Full experience of large numbers containers loading in Chinese sea port.
3.Fast shipment by reputed shipping line.
4.Best service after shipment with emails.
5.We are professional test equipment manufacturer in China with excellent experience and skills, also have best quality products
Our concept
1.Client is first. We are trying to bring maximum profit to our clients and offer best quality products
2.Credibility is the most important.
3.Quality control is our life.
4.Great sense of responsibility.
Our reputation is built on superior quality and outstanding customer service.
Please feel free to contact me if any needs about Electromagnetic Vibration Resistance Test Equipment/Vibration Shaker for Automotive Parts.
