• Model NO.：RCI-602
• Transmitter Output：Direct Connection Output, Clamp Coupling Output
• Transmitter Output Frequency：640Hz (Complex Frequency), 1280Hz (Complex Frequen
• Receiver Input：Soft Flexible Clamp
• Power Frequency：50Hz,60Hz
• Active Frequency：640Hz,1280Hz
• Cable Identification Mode：Soft Flexible Clamp
• Power Frequencies Measurement：Range AC 1-1000A,Accuracy +,-3%
• HMI：800X480 LCD,Size 121X76mm
• Built-in Battery：2 X 18650 Li-on Batteries, Standard 3.7 V,6.8 Ah
• Transport Package：Carton with Strong Pallet
• Specification：CE, RoHS
• Trademark：Grewin
• Origin：Tianjin
• HS Code：85045000
• Production Capacity：10 Million

Basic Info.

Model NO. RCI-602 Transmitter Output Direct Connection Output, Clamp Coupling Output Transmitter Output Frequency 640Hz (Complex Frequency), 1280Hz (Complex Frequen Receiver Input Soft Flexible Clamp Power Frequency 50Hz/60Hz Active Frequency 640Hz,1280Hz Cable Identification Mode Soft Flexible Clamp Power Frequencies Measurement Range AC 1-1000A,Accuracy +/-3% HMI 800X480 LCD,Size 121X76mm Built-in Battery 2 X 18650 Li-on Batteries, Standard 3.7 V,6.8 Ah Transport Package Carton with Strong Pallet Specification CE, RoHS Trademark Grewin Origin Tianjin HS Code 85045000 Production Capacity 10 Million

Product Description

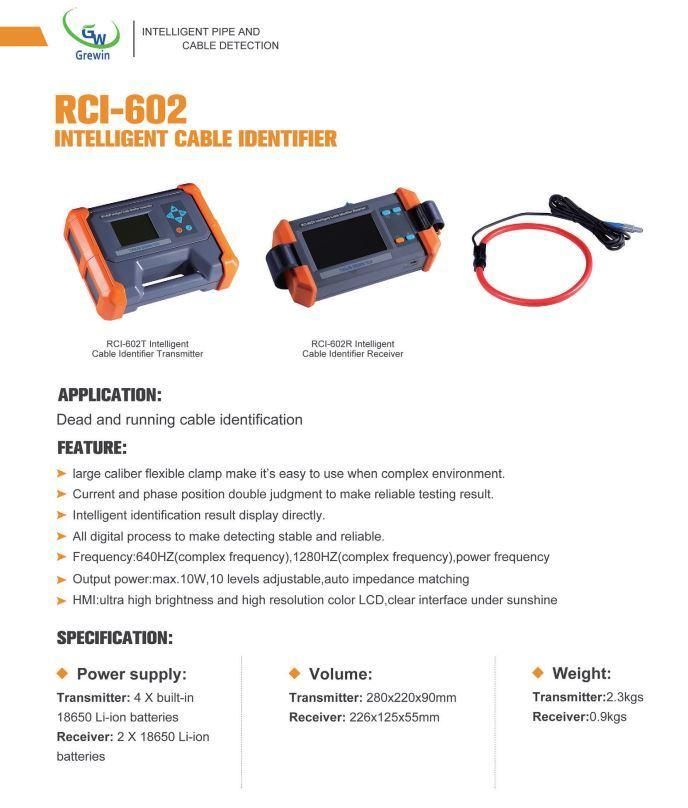

PRODUCT: Grewin 640Hz 1280Hz intelligent Cable identifier for cable fault tester

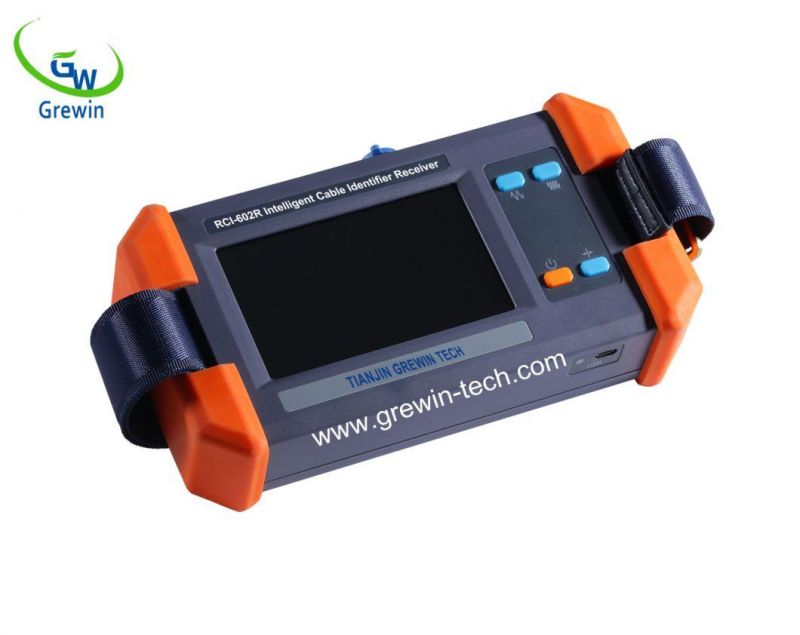

RCI-602R INTELLIGENT CABLE IDENTIFIER RECIEVER:

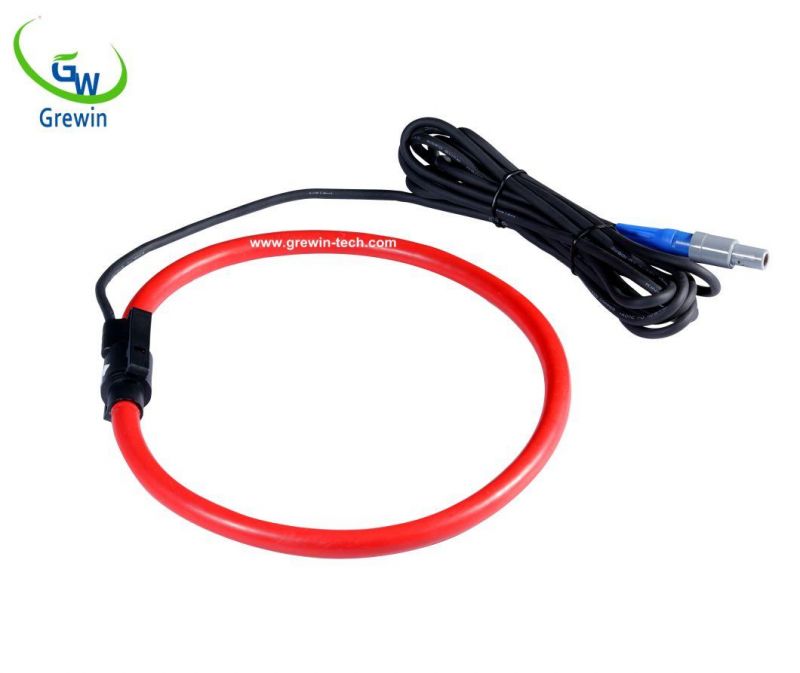

 Large  flexible clamp coil :

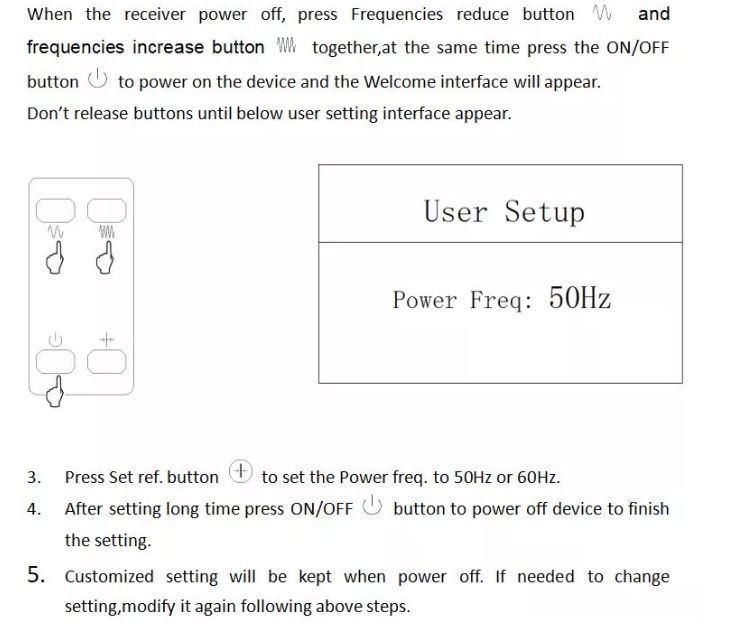

BEFORE USING:

For different countries and zones, we try to offer different user settings for choice.Now the power system frequency and depth measurement unit is optional.

1. Factory setting: default power frequency 50Hz

2. Optional setting as below:

1. GENERAL DESCRIPTION

1.1 GENERAL :

RCI-602 is a high performance cable identification system.It consists a transmitter and a receiver, can be used to for both running cable and dead cable.

Running cable should be three-core sheath cable and it is high accuracy and easy to use.

1.2 FUNCTION FEATHER:

l Used to for both running cable and dead cable.Running cable should be three-core sheath cable

l 50Hz/60 Hz cable load current measurement function.

l Multiple signal output method: direction connection and clamp coupling

l High power output and adjustable with auto impedance matching and auto protection

l Identification function: to display the identification result directly

l All-digital high accuracy sampling process with narrow receiving transmission bands,high anti-jamming capability to fully inhibit the inference from the nearby running cable and pipe power frequency and harmonic wave.

l Big capacity Li-on batteries series,support auto power off when low battery or long time no operation

l Solid case and light weight easy to carry

1.3 SPECIFICATION:

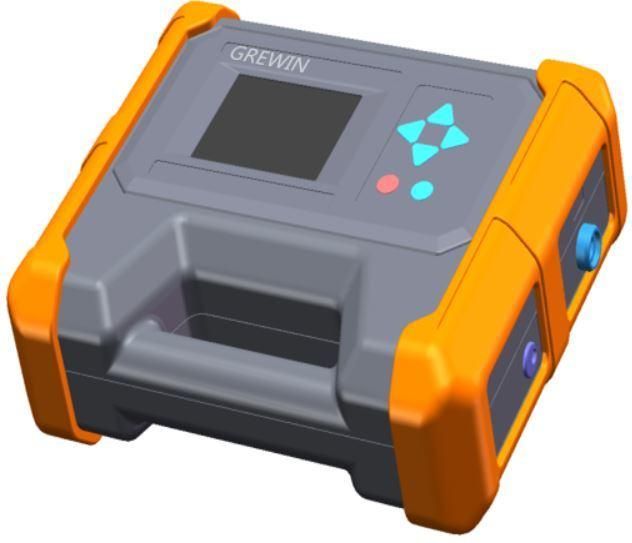

1.3.1 Transmitter:

l Output: Direct Connection output, Clamp Coupling Output

l Output Frequency:640Hz (complex frequency), 1280Hz (complex frequency).

l Output power: max. 10W, 10 levels adjustable, auto impedance matching.

l Direct connection voltage: max. 150Vpp.

l Overload and short circuit protection.

l HMI: 320x240 LCD.

l Power supply: 4 X built-in 18650 Li-on batteries, standard 7.4V, 6.8Ah.

1.3.2 Receiver:

l Input: soft flexible clamp

l Receiving frequency:

- Active frequency: 640Hz,1280Hz

- Power frequency: 50Hz/60Hz

l Cable identification mode: soft flexible clamp

l Power frequencies measurement: range AC 1-1000A,accuracy +/-3%

l HMI: 800X480 LCD,size 121x76mm

l Built-in battery: 2 X 18650 Li-on batteries, standard 3.7 V,6.8 Ah

1.3.3 Other:

l  Volume: transmitter 280x220x90mm,receiver 220x125x55mm

l  Weight: transmitter 2.3kgs, receiver 0.9kgs

l  Charger:transmitter input AC 100~240V,50/60Hz,output DC8.4V,2A

receiver input AC 100~240V,50/60Hz,output DC 5V,2A

l  Temperature: -10-40ºC,humidity 5-90%,elevation <4500m

PRODUCTION AND EXHIBITION :

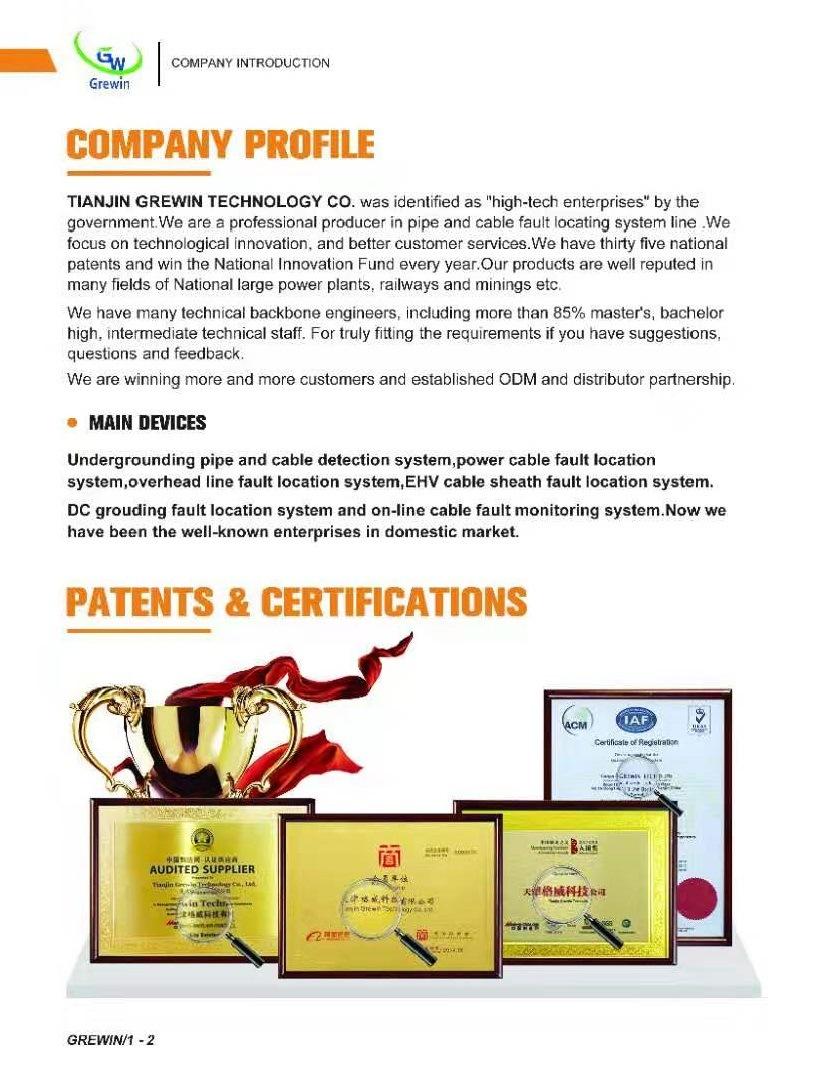

Company introduction
