Automatic Mechanical Soil Compactor Cbr Proctor Compactor ASTM En NF
Wuxi Serve Real Technology Co., Ltd.- After-sales Service:Life Time
- Warranty:12 Months Free
- Delivery Time:5-10 Working Days
- Application:Soil Compaction Test
- Standards:Jtg E40, ASTM, En, NF
- Working Power:AC110V,220V, 50,60Hz
Base Info
- Model NO.:TDJS-1
- Rammer Weight:2.5kg,4.5kg
- Drop Weight:300, 305, 450, 457 mm
- Transport Package:Carton Case
- Specification:TDJS-1
- Trademark:SEREV REAL
- Origin:China
- HS Code:9031809090
- Production Capacity:500sets,Year
Description
Basic Info.
Model NO. TDJS-1 Rammer Weight 2.5kg/4.5kg Drop Weight 300, 305, 450, 457 mm Transport Package Carton Case Specification TDJS-1 Trademark SEREV REAL Origin China HS Code 9031809090 Production Capacity 500sets/YearProduct Description
Standards: JTG-E40-T0131, ASTM D698, ASTM D1557(Modified), ASTM D698, ASTM D558,ASTM D1883,AASHTO T99,AASHTO T180,AASHTO T193, EN 13286-2,EN 13286-47,NF P94-093,Description

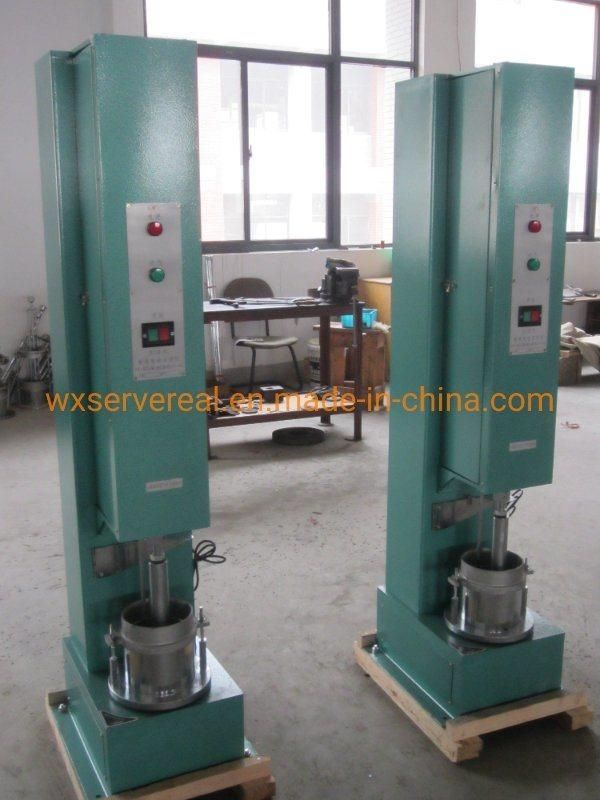

This automatic soil compactor is used to determine the relationship between molding water content and dry unit weight of soils (compaction curve) , it's kind of most-common soil test equipment in geotechnical laboratory.
Main Features
- Automatic count, automatic stop, automatic cycling, digital display
- Heavy & Light compaction test
- Stable rigid body structure
- Easy in use and maintenance
- superior design, durable in use
- Uniform compaction
- Multi test standard adaptable, can be equipped with different configurations to adapt to ASTM, EN, NF standards.
Technical Specifications
Hammer weight | 2.5kg/4.5kg, drop height 305/457mm |
Rammer drop height | 300, 305, 450, 457 mm |
Test mould dia. | 100mm or 4inch, 152 or 6inch |
Hammer head dia. | Φ50mm or 2inch |
Compacting frequency | 14 times / min |
Power supply | AC 110VAC/ 220VAC, 50/60Hz |
Overall Size | 500 x 380 x1650mm (L x W x H) |
Net Weight | 180Kg |
Standard Configuration
Item | Qty |
Main machine | 1set |
Electric counter | 1set |
Hammer | 2.5kg, 4.5kg, 1pc each |
Moulds with collar, baseplate, spacer disc(152mm)* | 100mm or 4inch, 152mm or 6inch, 1pc each |
Auxiliary equipments For Soil proctor compaction
Drying oven
Electric scale, 0.01g accuracy
Platform scale:10kg/5g
Round hole sieve: 40mm, 20mm, 5mm opening size, one each
Metal tray: W400*L600*D70mm
Others: Water sprayer, soil grinding device, soil container, measuring cylinder, soil stripper, aluminum container, trimming knife, straightedge
