• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Rockwell Scales：Hra, Hrb, HRC
• Rockwell Testing Force：60kgf(588.4n),100kgf(980.7n),150kgf(1471n)
• Brinell Scales：Hbw1,30,Hbw2.5,62.5,Hbw10,100,Hbw2.5,187.5
• Brinell Testing Force：31.25kgf(306.5n),62.5kgf(612.9n,187.5kgf(1839n)
• Vickers Scales：Hv 30,Hv100
• Vickers Testing Force：30kgf(294.2n),100kgf(980.7n)
• Transport Package：Standard Strong Wood Case
• Specification：1400*1800*1500mm
• Trademark：OTS
• Origin：Guangdong, China (Mainland)
• HS Code：9024109000
• Production Capacity：248 Sets Per Month

Basic Info.

Display Digital Control Computer Control Weight 100-500Kg Power Source AC220V Rockwell Scales Hra, Hrb, HRC Rockwell Testing Force 60kgf(588.4n),100kgf(980.7n),150kgf(1471n) Brinell Scales Hbw1/30,Hbw2.5/62.5,Hbw10/100,Hbw2.5/187.5 Brinell Testing Force 31.25kgf(306.5n),62.5kgf(612.9n,187.5kgf(1839n) Vickers Scales Hv 30,Hv100 Vickers Testing Force 30kgf(294.2n),100kgf(980.7n) Transport Package Standard Strong Wood Case Specification 1400*1800*1500mm Trademark OTS Origin Guangdong, China (Mainland) HS Code 9024109000 Production Capacity 248 Sets Per Month

Product Description

Electric Durometer Brinell Rockwell Vickers universal hardness Tester

Product Description

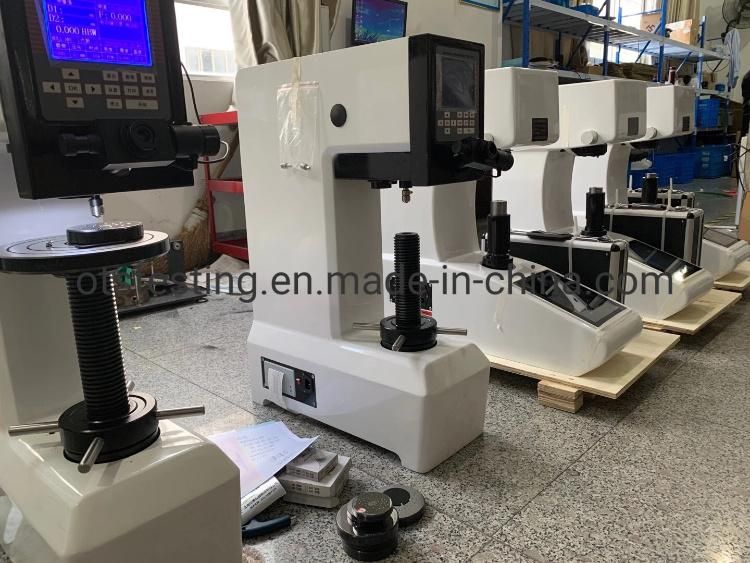

Digital Universal Hardness Tester

Product Application:

 XB-OTS-570HAD is a universal hardness testing instrument for the measurement of Brinell, Rockwell and Vickers scale.

 XB-OTS-570HAD equip 7-testing-foce and 5-indenter, it is universal to measure a most of metal material.

 XB-OTS-570HAD dwell time from 2 to 60S can be setup by the "time key" inside the LCD panel, it is much convenient than the setup on the manual hardness tester.

 XB-OTS-570HAD loading ,dwell and unloading is driven by electronic motor automatically , doesn't need the operator to handle it, it eliminates the human operating error maximum.

 XB-OTS-570HAD doesn't need the operator to read and check the hardness scale table ,it will compute and display the testing result once press the key of digital length sensor.

Technical Specifications:

Product Name	Digital Universal Hardness Tester
Model	XB-OTS-570HAD
Rockwell Scales	HRA, HRB, HRC
Rockwell Testing Force	60Kgf(588.4N),100Kgf(980.7N),150Kgf(1471N)
Brinell Scales	HBW1/30,HBW2.5/62.5,HBW10/100,HBW2.5/187.5
Brinell Testing Force	31.25Kgf(306.5N),62.5Kgf(612.9N,187.5Kgf(1839N)
Vickers Scales	HV 30,HV100
Vickers Testing Force	30Kgf(294.2N),100Kgf(980.7N)
Rockwell Hardness Indication	Digital LCD display
Rockwell Resolution	0.1HR
Loading Control	Automatic
Data Output	RS 232/Printer
Magnification of Microscope	Brinell:37.5x; Viceers:75x
Dwell Time	2~60s
Max. Height Of Specimen	Rockwell:170mm; Brinell, Vickers:140mm
Instrument Throat	165mm
Dimension(LxWxH)	520 x215 x700mm
Packing Dimension	630 x440 x960mm
Gross/Net Weight	120Kg/90Kg
Execution Standard	GB/T230.2, JJG112, EN-ISO 6508 , ASTME-18

Package details:
1.Strong standard wood case, inner plastic films wrapped for Vibration Testing Machine
2. Usually we delivery the equipment by air,by sea or by express. it depends on customer



Packing & Shipping
1.Strong standard wood case, inner plastic films wrapped.
2. Usually we delivery the equipment by air,by sea or by express. it depends on customer Company Advantage


Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø  ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDECustomer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair

FAQ


1. How to choose the most suitable fitness equipment steel tensile testing machine?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do   and the required specification.

2. What's the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working   days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.

3. Do you accept customization service?

Yes, of course, we can not only offer standard machines, but also customized machines according to your   request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.

4. Can we visit your factory before order?

Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange   hotel and pick up you from airport.

5. Do you have customers of our country before?

Now our testing machines have been sold to more than 26 countries, like USA, Canada, Russia,UK, Italy,   Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam, Iran, Brazil...and so   on.

6. How about your warranty?

Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts   change, necessarily, our engineers may go to your place for better service.

7. How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden box, it won't be damaged. We've delivered many testing   machines abroad by sea or by air without damage.

8. What is the order process?

Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging   - balance payment - packing - delivery - customer receiving - after service.

9. How to install and use the product?

The product is shipped with an operating instructions and video of English version.
