• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Hammer Weight：20+,-0.2kg
• .Impact Height：0~1300mm
• Volume：70X60X185cm
• Horsepower：DC 1,4HP
• Test Standard：Eniso20344,AS,NZS2210.1.Ansiz41,Canz195
• Power：AC 200V 50Hz
• Transport Package：Standard Strong Wood Case
• Specification：1400*1800*1500mm
• Trademark：OTS
• Origin：Guangdong, China (Mainland)
• HS Code：9024109000
• Production Capacity：248 Sets Per Month

Basic Info.

Display Digital Control Computer Control Weight 100-500Kg Power Source AC220V Hammer Weight 20+/-0.2kg .Impact Height 0~1300mm Volume 70X60X185cm Horsepower DC 1/4HP Test Standard Eniso20344,AS/NZS2210.1.Ansiz41,Canz195 Power AC 200V 50Hz Transport Package Standard Strong Wood Case Specification 1400*1800*1500mm Trademark OTS Origin Guangdong, China (Mainland) HS Code 9024109000 Production Capacity 248 Sets Per Month

Product Description

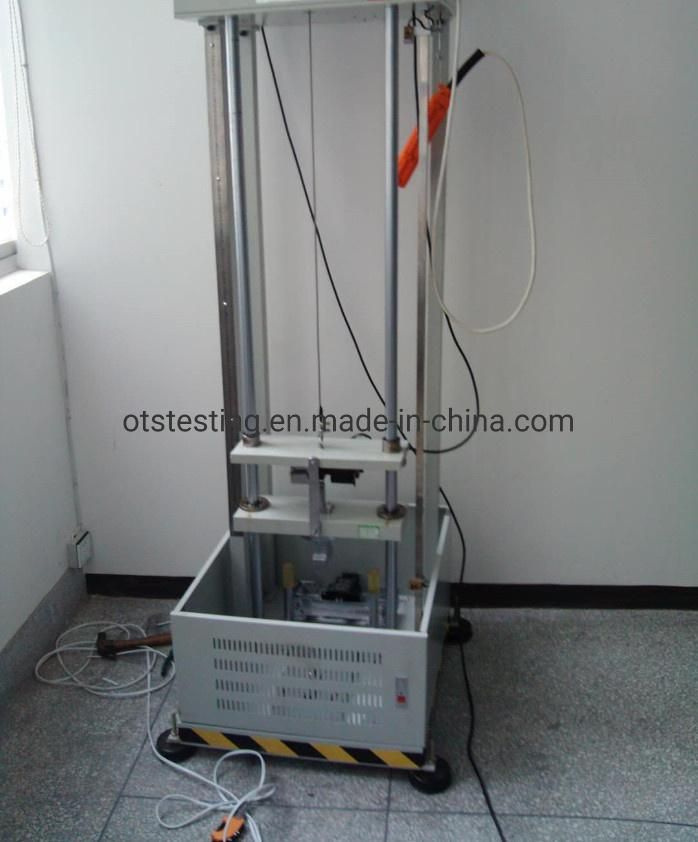

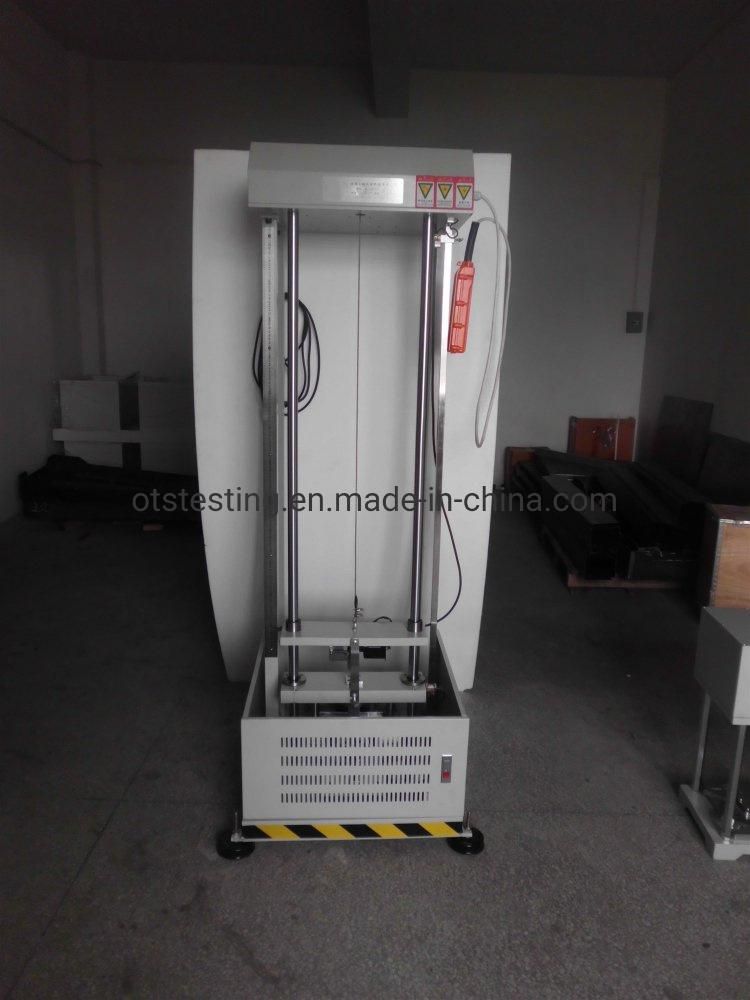

ISO 20344 Electronic Safety Shoe Toe Impact Test Machine

Introduction:
Safety Footware Impact Tester comply with EN, ANSI, BS, CSA regulations. Impacting the the steel toe caps of satety shoes through 100J or 200J power, then observe the sinkage to value its quality. The design is different among EN, ANSI, BS, CSA, so please prescribe the regulation when ordering

Standard:

ANSI-Z41,BS EN-344,CSA-Z195,ISO-20344,LD-50,EN ISO 20344:2004,LD50-1994,ASTM F2412-11,ASTM F2413-11,EN12568-2010,CNS 6863-82,GB 4014-1983,JIS-T8101:2000

Usages:

This machine is mainly used to perform impact test on the steel head of safety shoes, and then inspect the degree of sinking, to test and evaluate the impact resistance of shoes, to understand the safety quality of safety shoes, suitable for shoe manufacturers, quality inspection and other units.

Specification:


Drop weight	(EN) 20±0.2kg, (BS, ANSI) 22.7kg,(LD)23±0.2Kg,5±0.1Kg
Drop height	(EN) 0~1300mm
Impact capacity	(EN) 200 J, (BS, ANSI) 100 ± 2 J
Impact blade	90°(EN)3±0.1mm(R),(ANSI)ø25.4mm
Horsepower	DC 1/4HP
Volume	70×60×185cm
Weight	227kg
Power Supply	1∮, AC220V,50/60Hz

1. Drop weight: (EN) 20±0.2kg, (BS, ANSI) 22.7kg,(LD)23±0.2Kg,5±0.1Kg
2. Drop height: (EN) 0~1300mm
3. Impact capacity: (EN) 200 J, (BS, ANSI) 100 ± 2 J
4. Impact blade: 90°(EN)3±0.1mm(R),(ANSI)ø25.4mm
5.Horsepower: DC 1/4HP
6.Volume: 70×60×185cm
7. Weight: 227kg
8. Power supply: 1∮, AC220V,50/60Hz

Test preparation:

1. Take a pair of untested shoes from each of three different sizes of shoes to make a test piece.

2, find the center axis of the shoe (see standard data for drawing method).

3. Press down the upper by hand, find the steel head in the direction of the central axis and take a point 20mm backwards, and draw a marking line along the vertical direction of the central axis after this point.

4. Use a utility knife to cut off the toe of the shoe (including the sole and insole) from the marking line.

5. Use a steel ruler to draw a straight line corresponding to the central axis on the insole, which is the central axis of the toe cap.

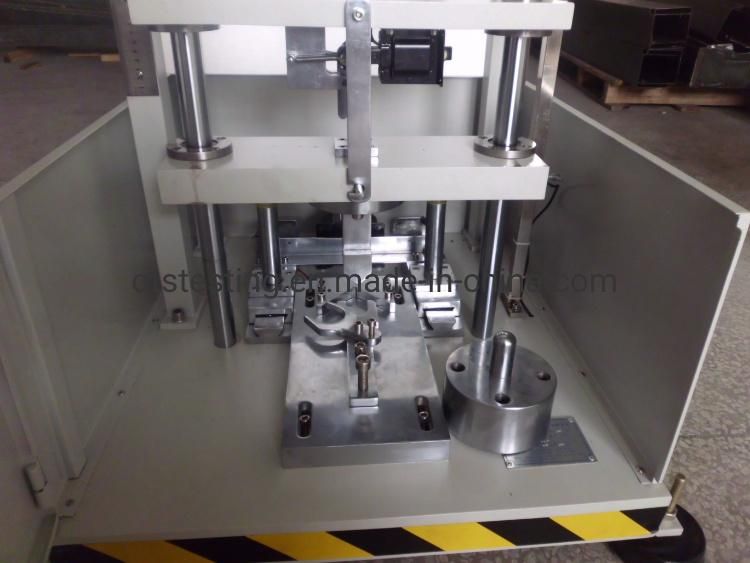

6. Install the fixture and impact head according to the test requirements of the safety shoe impact testing machine.

7. Preparation of clay column: For shoes of size 40 and below, make a column with a height of 20±2mm, for shoes with a height of 25±2mm), and cover the upper and lower surfaces of the cylindrical clay with aluminum foil Make a mark on one side of the cylinder of cement paste or other anti-sticking materials.

Test method:

1. Cut the toe cap 30mm away from the rear edge of the protective toe cap, and then remove the entire upper part flush with the rear edge of the protective toe cap. Do not remove the upper and lining in the toe cap area. If the shoe is equipped with a movable insole, it should be in place during the test.

2. Put the cylinder on the inner end of the sample, and then put the sample on the impact tester so that the impact test hammer just hits it. The hammer should extend to the rear and front of the protective toe cap. Adjust the clamping device.

3. Drop the impact test hammer from an appropriate height onto the test axis, and reach an impact energy of (200±4) J for safety shoes or (100±2) J for protective shoes.



Function instruction:
(up): Control the beam and its rise when it grips the impact head
(down):Control the beam and its fall when it grips the impact head
ON/OFF:Switch on the control panel
(release):The impact falls down (the test method is as follow)
Note :The impact speed in the range of 4.35~4.5 is normal
(The speed is shown on the speed chart)
