• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Fall Speed：10 Times,Min
• Chute Length：275mm
• Fall Height：500mm
• Inner Height：650mm
• Test Standard：IEC60068-2-31,IEC60068-2-32
• Barrel Wall Thickness：3mm
• Roll Speed：5rpm
• Test Times：0-9999 Times
• Transport Package：Standard Strong Wood Case
• Specification：1400*1800*1500mm
• Trademark：OTS
• Origin：Guangdong, China (Mainland)
• HS Code：9024109000
• Production Capacity：248 Sets Per Month

Basic Info.

Display Digital Control Computer Control Weight 100-500Kg Power Source AC220V Fall Speed 10 Times/Min Chute Length 275mm Fall Height 500mm Inner Height 650mm Test Standard IEC60068-2-31,IEC60068-2-32 Barrel Wall Thickness 3mm Roll Speed 5rpm Test Times 0-9999 Times Transport Package Standard Strong Wood Case Specification 1400*1800*1500mm Trademark OTS Origin Guangdong, China (Mainland) HS Code 9024109000 Production Capacity 248 Sets Per Month

Product Description

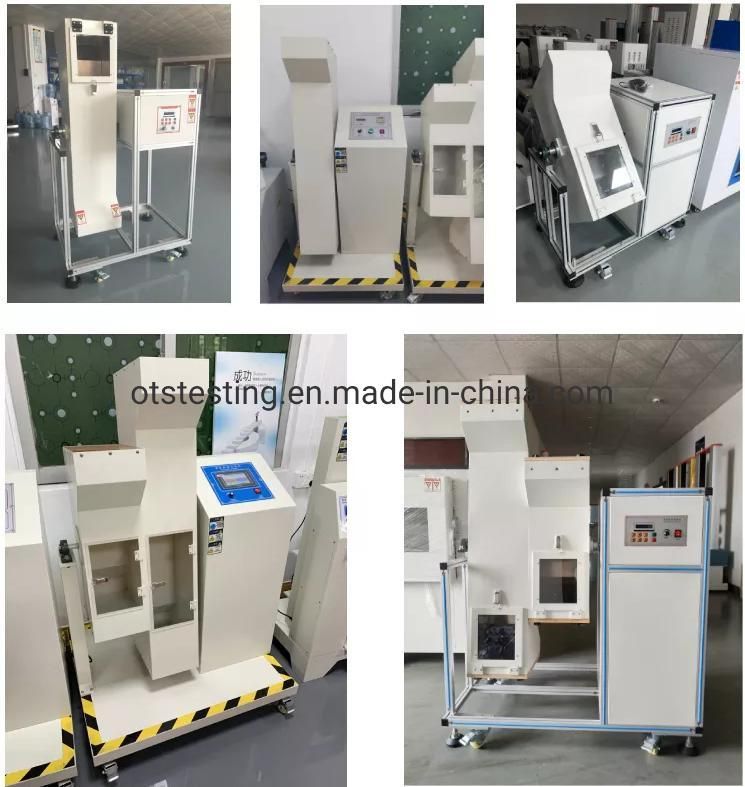

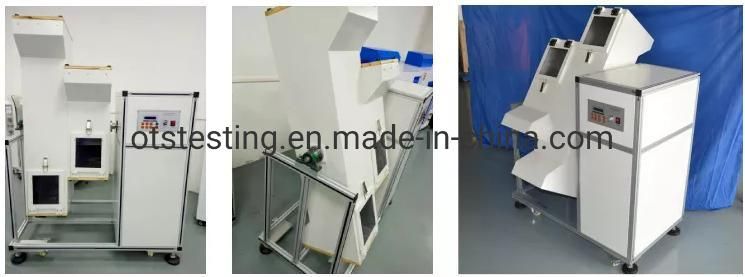

 UL60730 Double Drum Tumbling Barrel Drop Tester Introduction
This machine is suitable for the roll and drop test of mobile phone and similar products, with the function of 6 digit digital display and counting, and can conduct the test of 2 samples simultaneously in 2 test bins.Mobile phone drum drop testing machine is suitable for mobile phone, PDA, electronic dictionary, CD, MP3, remote control and other small portable electronic products for continuous slewing and falling test.After N times of falling and falling behind, the product's ability to withstand rotary drop can be evaluated by setting the number of times to reach.

Design standard
The test equipment meets the international GB/ t2423.8-1995 or iec60068-2-32, Ed2 test conditions;The roller manufacturing process meets the GB/ t2423.8-1995 appendix standard.
Technical Parameters
1.Number of rollers: 2
2.Allowable specimen weight: 2kg(Max)
3.Drop height: 500 or 1000mm (Customizable)
4.Drum width: 350mm
5.Rotary speed: 5-20 times /min
6.Turns: 1-999999 (adjustable)
7.Machine size: 1100*725*1440mm
8.Weight: 65kg
9.Power supply: AC220V 50HZ 5A or designated
10.Chassis: made of anti-static powder paint

 Feature
1.The unique design of this machine can meet the requirement of simultaneous testing of 500 or 1000mm drop height, and at most two mobile phones can be tested simultaneously;
2.The machine is driven by taiwan-made speed-regulating motor and speed governor for rotary speed setting, and driven by synchronous belt pulley/drive, with extremely low noise at start and stop, and smooth operation;
3.The operation panel design is simple and easy to control. The frequency can be directly displayed and the rotation can be controlled by inching to facilitate loading and unloading of specimens.
4, LCD display can be preset counter count, electric memory function, reach the set times automatically stop;


 Application:The Tumbling Barrel drop Test Machine simulates repeated falls which may occur to such devices as connectors or small remote control units which are normally attached to cables during use.

The Tumbling Barrel Test Machine is the recommended instrument to perform such a test. A barrel is turned at a rate of five revolutions per minute resulting in ten falls per minute. The sample falls from a height of 500mm on to a steel plate that is 3mm thick and backed by 19mm thick hardwood. The number of falls is set by the user in accordance to the standard they are meeting. After the tumble barrel procedure, the specimen is checked visually, mechanically, and electrically as prescribed in the relevant

Package :1.Strong standard wood case, inner plastic films wrapped for ECT Edge Crush Tester

2. Usually we delivery the equipment by air,by sea or by express. it depends on customer Company Advantage

Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø  ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDECustomer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
