• Model NO.：XB-OTS-P
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC220V
• Lame Height：20m- 175m
• Burner Titled Angle：20º, 45º, 90º (Optional)
• Certificate：CE ISO
• Transport Package：Standard Strong Wood Case
• Specification：700*560*680 mm
• Trademark：OTS
• Origin：Guangdong, China (Mainland)
• HS Code：9031809090
• Production Capacity：248 Sets Per Month

Basic Info.

Model NO. XB-OTS-P Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Computer Control Weight 500-1000Kg Power Source AC220V Lame Height 20m- 175m Burner Titled Angle 20º, 45º, 90º (Optional) Certificate CE ISO Transport Package Standard Strong Wood Case Specification 700*560*680 mm Trademark OTS Origin Guangdong, China (Mainland) HS Code 9031809090 Production Capacity 248 Sets Per Month

Product Description

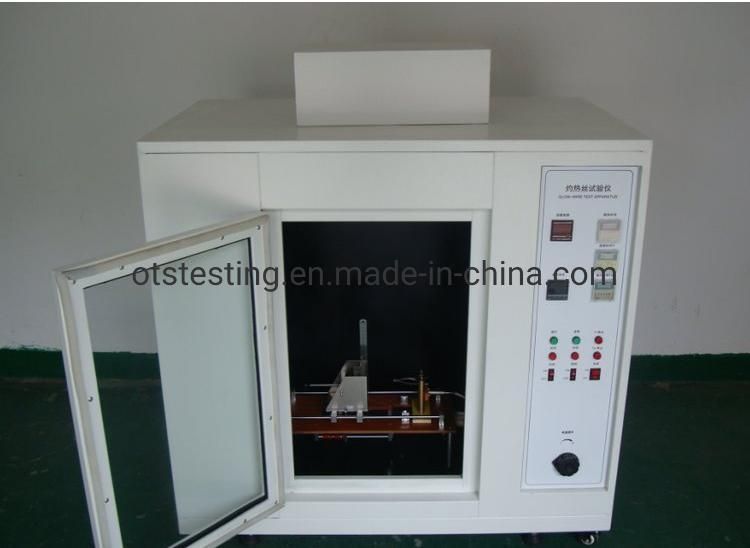

Glow-wire Flammability Tester

Standards:
IEC60695 - 2 - 10 / 11 / 12 / 13,IEC60884-1,GB2099.1,IEC60335-1,GB4706.1,VDE0620

Under fault or overload conditions, components or parts may reach an excessively high temperature or burn the parts near them. The glow wire test simulates the thermal stress caused by heat sources such as hot components or overloaded resistance or ignition sources in a short time. The simulation technology evaluates the fire hazard, and is suitable for plastic and non-metallic insulating material parts used in electrical and electronic products, components, and household appliances, such as switch housings, relay sockets...

Features:

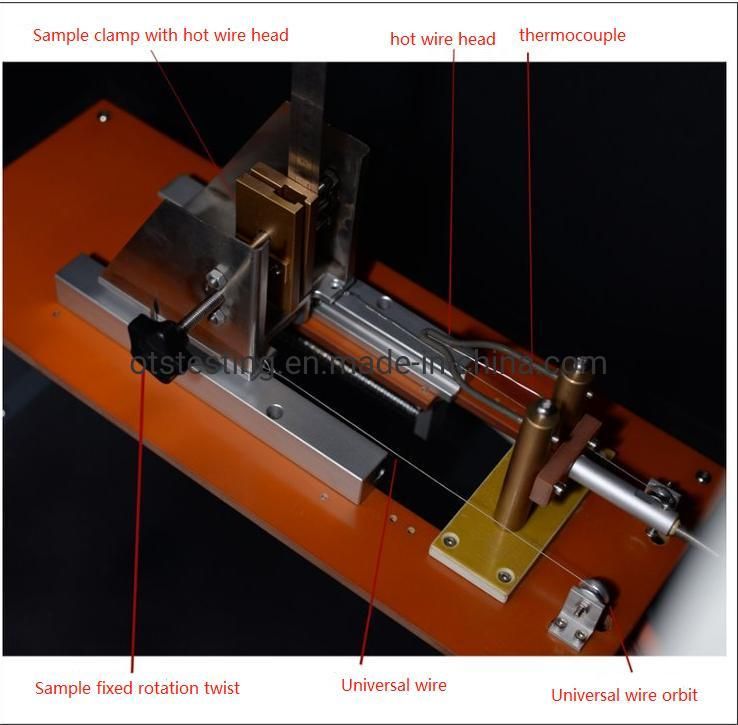

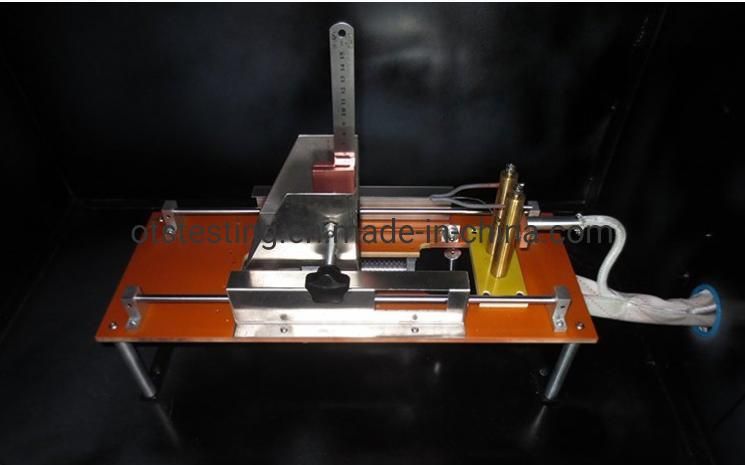

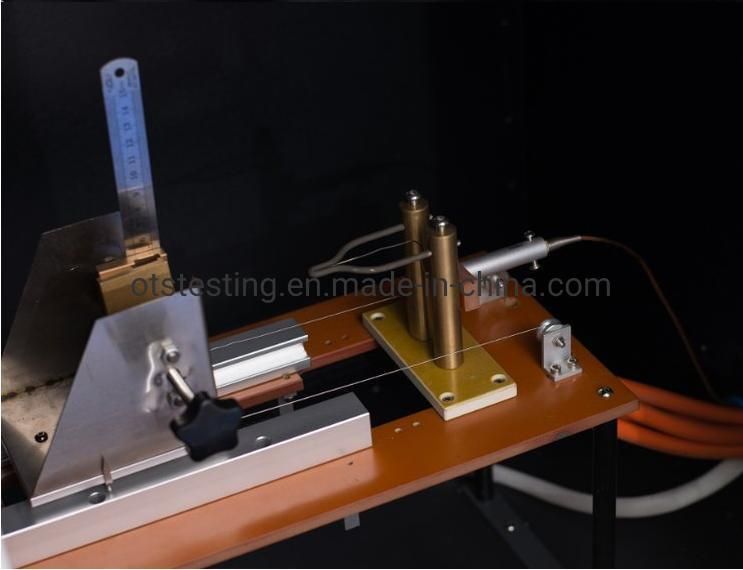

The control system of this tester is automated. After starting, the car that clamps the sample will automatically run the sample to the glow wire, and will automatically return when it reaches the set glow time. The interior is black background, with ventilation and lighting devices , Temperature digital display, convenient to observe and record

Specification:


Volume	≥0.5 M3  with observation glass door
illuminance	<20LUX
Temperature of Glow wire	RT+10ºC~1000ºC adjustable, temperature using Ø1mm nickel-chromium armor (K type) Imported thermocouple
Pressure	0.95±0.1N, and limit the pressing depth to 7mm±0.5mm, and the pressing depth is automatically sensed
Glow wire	The glow wire is a ring of standard required size made of nickel/chromium (80/20) wire with a diameter of 4mm; the diameter of the glow wire before bending is 4.0 +/- 0.04mm, and it cannot be lowered after bending. As low as 90%, other sizes are made according to the error requirements of the standard;
Moving speed	10mm / s - 25mm / s;
Timer:	0 ~ 99 M and 99 S (adjustable), resolution: 0.01 second, burning time (Ta) can be set The ignition duration (Ti) and flame extinguishing time (Te) can be recorded
Power Supply	AC 220v/50HZ

1.Strong standard wood case, inner plastic films wrapped for Vibration Testing Machine
2. Usually we delivery the equipment by air,by sea or by express. it depends on customer

Company Advantage
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø  ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDECustomer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair


FAQ


1. How to choose the most suitable fitness equipment steel tensile testing machine?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do   and the required specification.

2. What's the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working   days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.

3. Do you accept customization service?

Yes, of course, we can not only offer standard machines, but also customized machines according to your   request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.

4. Can we visit your factory before order?

Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange   hotel and pick up you from airport.

5. Do you have customers of our country before?

Now our testing machines have been sold to more than 26 countries, like USA, Canada, Russia,UK, Italy,   Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam, Iran, Brazil...and so   on.

6. How about your warranty?

Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts   change, necessarily, our engineers may go to your place for better service.

7. How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden box, it won't be damaged. We've delivered many testing   machines abroad by sea or by air without damage.

8. What is the order process?

Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging   - balance payment - packing - delivery - customer receiving - after service.

9. How to install and use the product?

The product is shipped with an operating instructions and video of English version.
