• Model NO.：XB-OTS-408
• Quality：Certificated
• Casters：Easy Mobility and Safe
• Transport Package：Strong Wood Case for Climatic Chamber
• Specification：(W*H*D)40*50*40CM
• Trademark：OTS
• Origin：Guangdong, China (Mainland)
• HS Code：8479899990
• Production Capacity：258 Pieces,Month

-70°C~+150°C(180°C)
(A:-20°C B:-40°C C:-60°C D:-70°C )Humidity range20%~98%R.H.(10%-98%R.H/5%~98%R.H)Temp humidity
analytic accuracy
/ uniformity±0.1°C;±0.1%R.H./ ±1.0°C;±3.0%R.H.is special optional condition.Temperature  humidity
control accuracy/fluctuation±1.0°C;±2.0%R.H./ ±0.5°C;±2.0%R.H.Heat/cooling timeAbout 5.0°C/min;about 1.2°C/min (5~10°C/min is a special optional conditionInner and outer materialsSUS#304 Stainless steel for inner chamber and Carton Advanced cold plate nano paint for outer.Insulation materialsResistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materialsCooling systemAir cooling/single segment compressor(-20°C) ,air and water double segment compressor
(-40°C~-70°C)Protection devicesFuse switch, compressor overload switch, refrigerant high and low pressure protection switch,
super humidity over-temperature protection switch, fuse, failure warning systemPartsWatching window,50mm testing hole,PL internal bulbs,partition plate,dry and wet ball gauzeControllerTEMI" South Korea"TEMI" "OYO" Japan's "OYO" Brand  optionalCompressorOriginal France"Tecumseh"brandPower1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz

Features:

*.High-texture appearance, the body adopted an arc shape, surface matte stripes processing, and flat-handle, easy to operate, safe and reliable.

*.Rectangular multi-layer glass View window, the use of guinea pigs observed in the test window witt  anti-sweat heaters device prevents water gas condensate ,Knot, water droplets, PL fluorescent lamps to keep the inside lighting.

*.Door bunk isolated airtight packing, can be effectively isolated from the internal temperature of the leak

*.With external water supply system, convenient to supplement the cylinder water supply, and automatic recovery using.

*.Compressor cycling system used France"Tecumseh"brand which can effectively remove condenser pipe and between  capillary Lubricating oil and whole series adopt environmental protection refrigerant (R23, R404, R507)

*.Controller uses the imported LED display screen, can display measured values and setting time

*.Controller with multisegment program editor and temperature and humidity can be fast (OUICK) or slope (SLOP) controlled.

*.Built-in mobile wheels allow easy movement and placed and has a strong positioning screw position.


Standard:
GB/Bb T2423.2-89 high temperature test method      GB2423.1-89 test A: low temperature test method 6
Ab IEC60068-2-1 low temperature test method        GJB150.4-1986 test at low temperature
EIA - 364-59 test at low temperature                 IEC60068-2-38 temperature cycle
IEC60068-2-78 constant   temperature                IEC60068-2-30   temperature cycle
EIA - 364-31C temp resistance                       GB/T2423.3 constant  heat test method

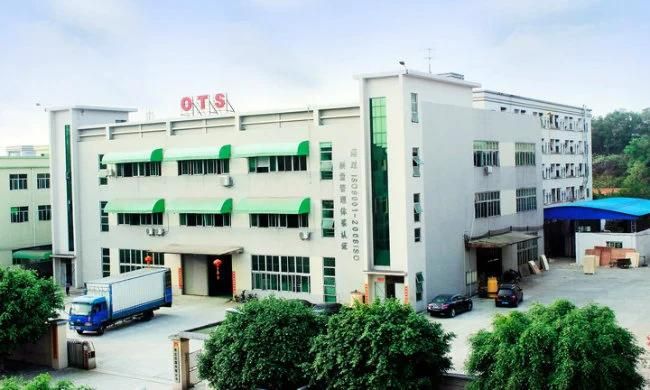

Our Company
OTS (Overall Testing System)
     Was established in 1978, with 35 years' history
     With 30,000 square meter salable production base and 120 employees
      Is one of the leading companies solely dedicated to manufacture of
     Environmental Simulation Test Chambers ,Physical Testing Equipment .
 (such as  constant temperature and humidity chambers, environmental chambers, climatic test chambers, rain and dust test chambers,thermal shock test chambers,fast change rate chambers, salt spray chamber,UV test chambers,walk in test chambers and other special customized test chambers  ; tensile testing machine, vibration test machine ,carton compression testing machines, bursting strength testing machine etc.) ..
     OTS has the equipment and expertise, with own R&D and consultant team, to meet and exceed your testing requirement. with offices in unrivaled quality advantage, dynamic management team with superb manufacturing process,also the quality with the world norms: ISO , ASTM, DIN, EN, GB, BS, JIS, ANSI, UL,CE, TAPPI, AATCC, IEC, VDE...



1. Are you a Manufacturer ? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are manufacturer of Climatic Test Chamber,Mini Temperature Chamber,Temperature Humidity Chamber Price .Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers.

If your machine doesn't work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.

2. What's the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.

3. Do you accept customization service? Can I have my logo on the machine?

Yes, of course. We can not only offer standard machines, but also customized

machines according to your requirements. And we can also put your logo on the machine

4. Do you have a branch company or service office in my country?

We have offices in the belowing:

The US Office: XIN BAO INSTRUMENT (US) LLP

Address: 1201 N Park Ave Tucson AZ 85719

Vietnam: XIN BAO INSTRUMENT INDUSTRY(VIETNAM)CO.,LTD



Address:248 no.1A Road,An Lac-Binh Tri Dong Residence,B Ward, Binh Tan Disrtict, HO Chi Minh City, Vietnam.

Singapore Dealer: Surveillance Inspection & Testing Services Pte Ltd



Address:No. 5 Jalan Kilang Barat #08-06 Petro Centre Singapore, 159349

Italy Dealer :AMSE SRL



Address: Strada della Cebrosa 86, 10156 Torino Italy

5. How to install and use the product?

We will send you operating instructions, English  video by Email. Or you can download on our officail website directly.

Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use.  And if possible, we can also install your machine at site.

Please feel FREE to contact us if you have any needs.
