• Display：Digital
• Control：Manual Control
• Weight：100-500Kg
• Power Source：AC220V
• Temperature：Rt~300c
• Heating Rate：120c,H
• Sample Racks：3
• Load Bar and The Tray：76g
• Test Span Range：64 or 100mm According to The Standard
• Fuel Tank Volume：13L
• Cooling Method：Built-in Active Air Cooling or External Water Cool
• Dimension：700mm×600mm×1400mm
• Transport Package：Standard Strong Wood Case
• Specification：700*600*1400mm
• Trademark：OTS
• Origin：Guangdong, China (Mainland)
• HS Code：9024109000
• Production Capacity：248 Sets Per Month

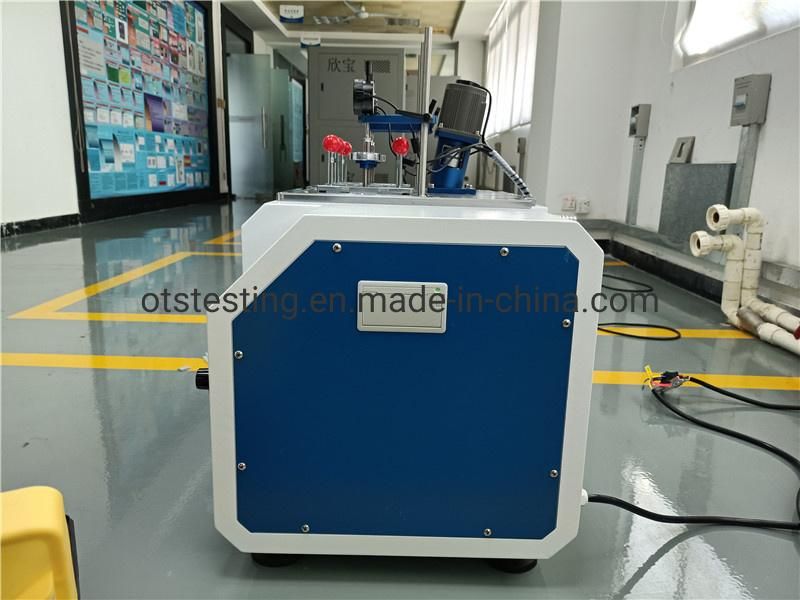

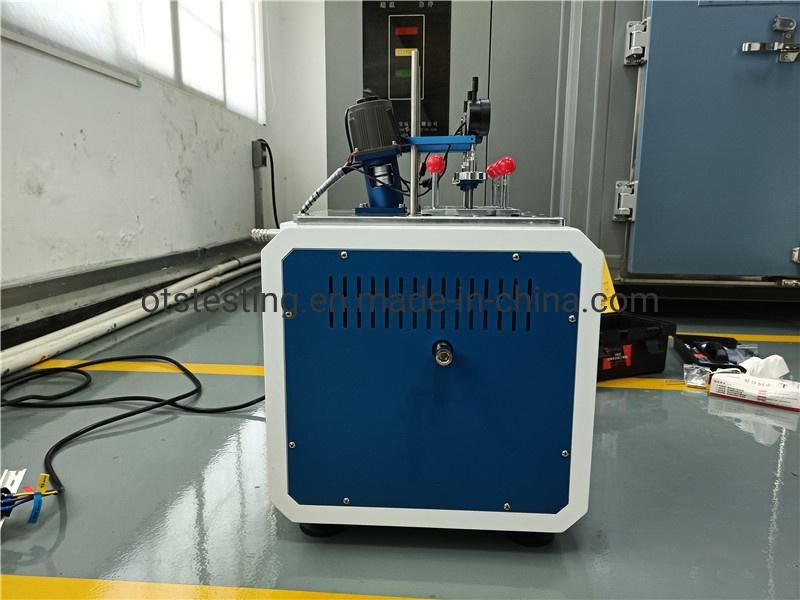

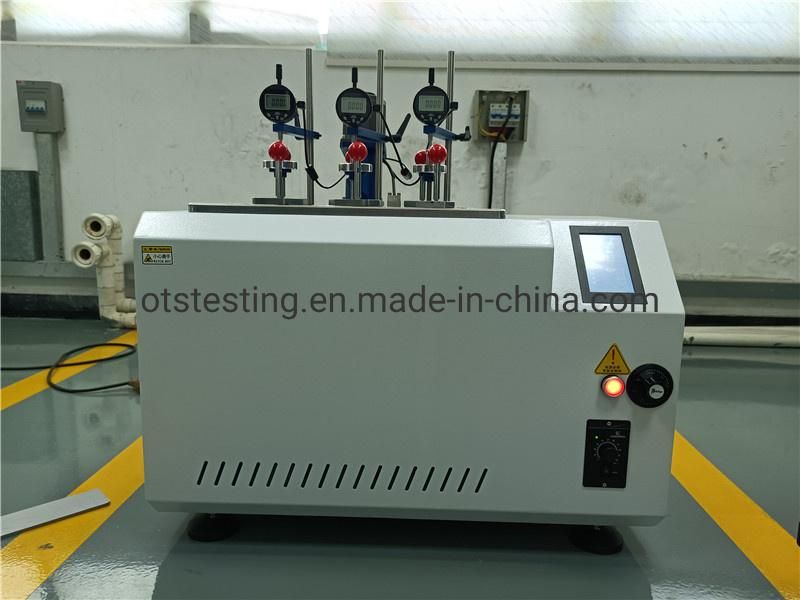

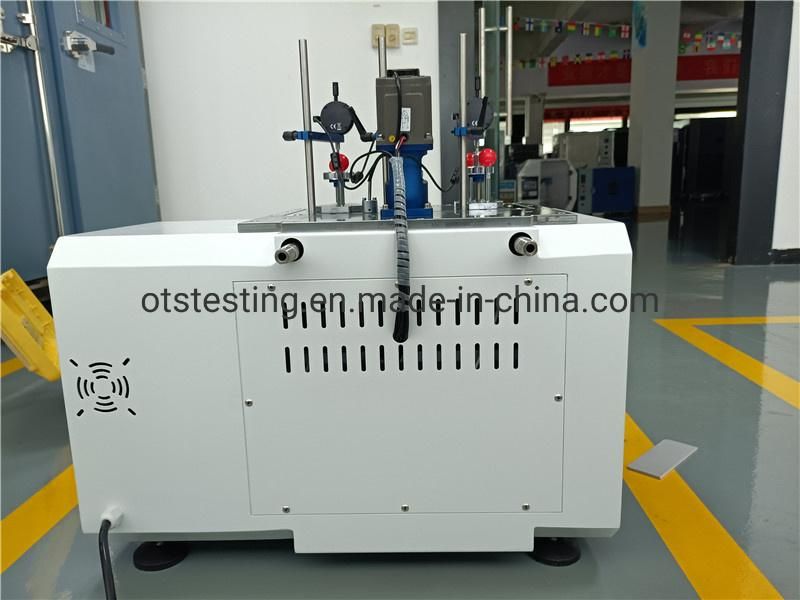

XB-OTS-VIKA10  Vicat softening point temperature testerSample rack extraction methodManualControl methodLCD temperature control meter controlRangeRT~300ºCHeating rateA rate:5±0.5ºC/6min;B rate:12±1.0ºC/6minTemperature accuracy±0.5ºCTemperature measurement point1
 Station3 stationDeformation resolution0.001mmDeformation range0~10mmSpecimen supporting span64mm,100mm (American standard adjustable size)Deformation measurement accuracy0.005mmheating mediumMethyl silicone oil; flash point above 300°C and below 200 centistokes (customer provided)Cooling methodNatural cooling above 150ºC, water cooling or natural cooling below 150ºCDimension700mm×600mm×1400mmSpace requiredfront and back 1m,right and left 0.6mPower4500VA  220VAC  50H

Features

1.Intelligent PID adjustment, accurate heating rate, precise temperature control

2.Can do thermal deformation test of various standard specimen

3.Can do Vicat softening point test of various standard specimen

4.The required load can be automatically calculated according to the test standard and sample size

5.Two heating rates can be selected, free switching, simple operation

6.When the test is completed or the temperature exceeds the upper limit, the temperature control will be turned off and shut down automatically

7.With software over-temperature protection and leakage protection

Package :1.Strong standard wood case, inner plastic films wrapped for ECT Edge Crush Tester

2. Usually we delivery the equipment by air,by sea or by express. it depends on customer Company Advantage

Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø  ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDECustomer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
