Six Channel Differential Protection Vector Tester

Wuhan GDZX Power Equipment Co., Ltd.

After-sales Service：Provide lifelong after-sales service
Warranty：1 Year
Voltage：1~500V
Primary current：0.1~5A
Secondary current：0.001~10A
Active power：0.001~5kW

Base Info

Model NO.：SMG8000
Reactive power：0.001~5kVAR
Apparent power：0.001~5kVA
Frequency：45~65Hz
Phase：0~360
Transport Package：Carton,Wooden Case
Specification：With the change of technical scheme
Trademark：GDZX
Origin：Hubei
Production Capacity：500 Pieces,Month

Description

SMG8000 Six channel differential protection vector tester is a kind of instrument which can measure primary side current, secondary side current and secondary side voltage at the same time, and then make analysis and report. The instrument can analyze three-phase unbalance degree and hexagonal vector diagram by measuring primary side current, secondary side current and secondary side voltage, and can output word and Excel files without upper computer software, which is convenient for users Period processing report.

Technical Indicators

Type	Range	Unit	Error	Resolution
Voltage	1~500	V	0.5%×range	0.01V
Primary current	0.1~5	A	0.5%×range	0.0001A
Secondary current	0.001~10	A	0.5%×range	0.0001A
Active power	0.001~5k	W	0.5%×range	0.1W
Reactive power	0.001~5k	VAR	0.5%×range	0.1VAR
Apparent power	0.001~5k	VA	0.5%×range	0.1VA
Frequency	45~65	Hz	0.1%×range	0.01Hz
Phase	0~360	°	±1°	0.1°

Six Channel Differential Protection Vector Tester

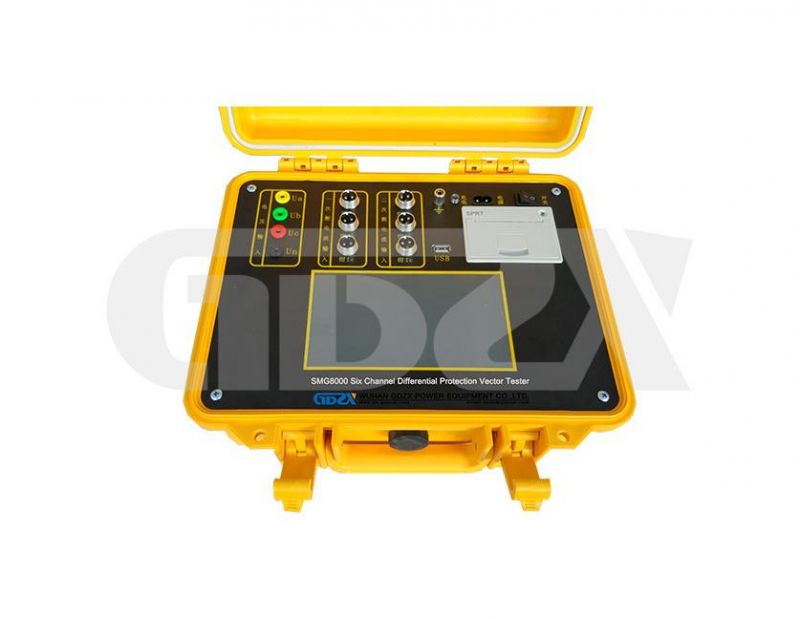

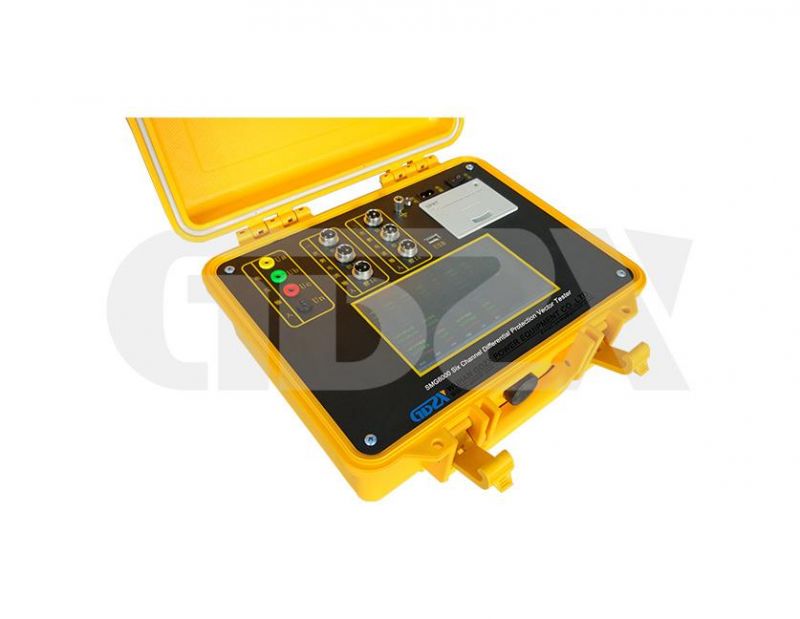

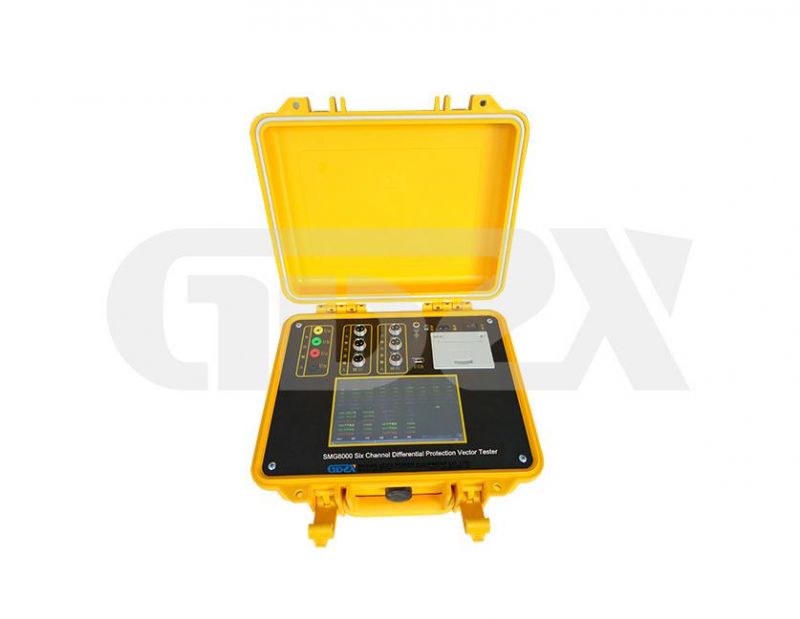

Device display

About GDZX
Wuhan GDZX Power Equipment Co.,Ltd. is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models. Six Channel Differential Protection Vector Tester

Shipping and packaging Features

1. At the same time, measure the 1-3 AC voltage on the secondary side;

2. At the same time, measure 1 to 3 AC currents on the primary side;

3. At the same time, measure 1-3 AC current at secondary side;

4. Measure the phase between voltage, current and voltage (angle between primary and secondary current);

5. Measurement of power grid frequency;

Measurement of active and reactive power;

7. Measurement of power factor;

8. Three phase voltage and current unbalance detection;

9. Secondary side phase voltage range: 1-500v, secondary side current range: 1ma-10a, primary side current: 100ma-5a;

10. Display hexagonal vector diagram (mixed primary side and secondary side);

11. It is used as leakage current meter;

12. Low power consumption design, built-in rechargeable battery as backup power supply;

13. Automatic range, user-friendly design of mouse operation;

14. Data storage can be exported through U disk, which is convenient for user data processing;

15. The field measured data can be printed out by micro printer;

16. Export files in word and excel format to facilitate printing reports.

Test Instrument

Product Category

Six Channel Differential Protection Vector Tester
