• Model NO.：ZXSBF
• No load operation time：less than or equal than 5mins
• Loading operation time：40~60 seconds
• Transport Package：Wooden Case or Carton
• Specification：Universal Testing Machine
• Trademark：GDZX
• Origin：China
• Production Capacity：1200sets,Year

Basic Info.

Model NO. ZXSBF No load operation time less than or equal than 5mins Loading operation time 40~60 seconds Transport Package Wooden Case or Carton Specification Universal Testing Machine Trademark GDZX Origin China Production Capacity 1200sets/Year

Product Description

35-220kV Third-harmonic Generator,Transformer inductive withstand voltage device

Introduction
    ZXSBF Third-harmonic Generator is designed to meet frequency multiplied Induced Over-voltage Withstand Test requirements, which applied to testing of series excited High Potential Transformers with voltage system at 35-220kV.



Features

1. Easy to operate, with reliable performance.

2. Suitable for induced over voltage withstand test.

Technical parameters

1. Input voltage	Three phase 380V 50Hz Sine wave
2. Output voltage	0-300V, 0-500V, 0-1000V, 150Hz
3. Wave distortion	≤5%
4. Output capacity	0-375kVA
5. No load operation time	≤5mins
6. Loading operation time	40~60 seconds

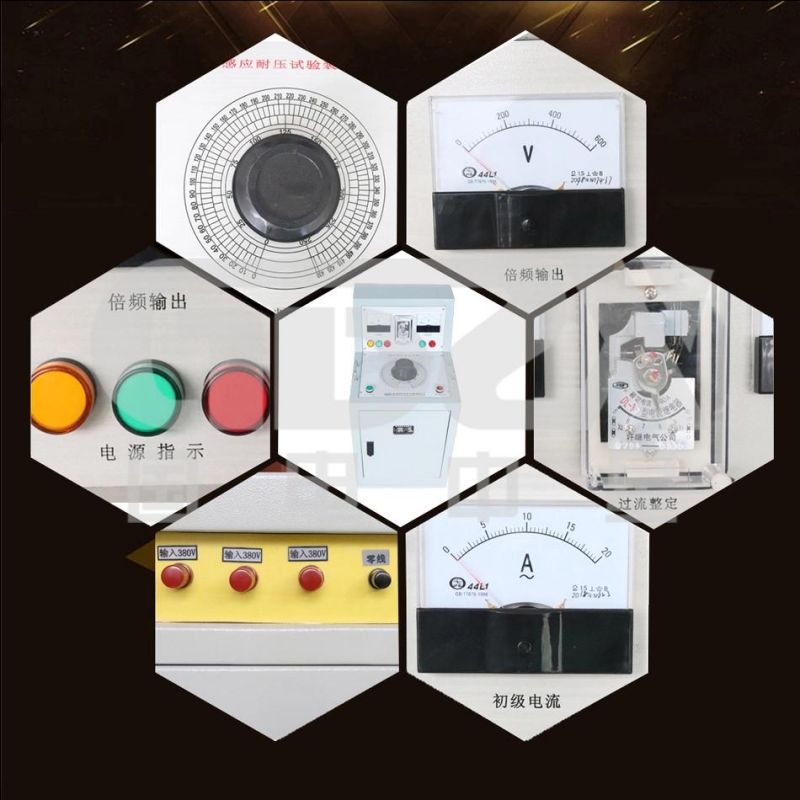

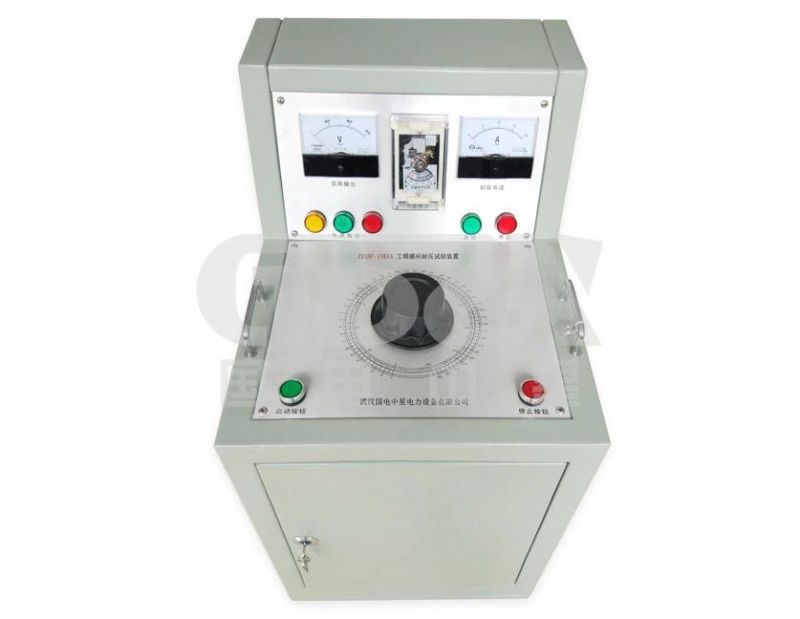

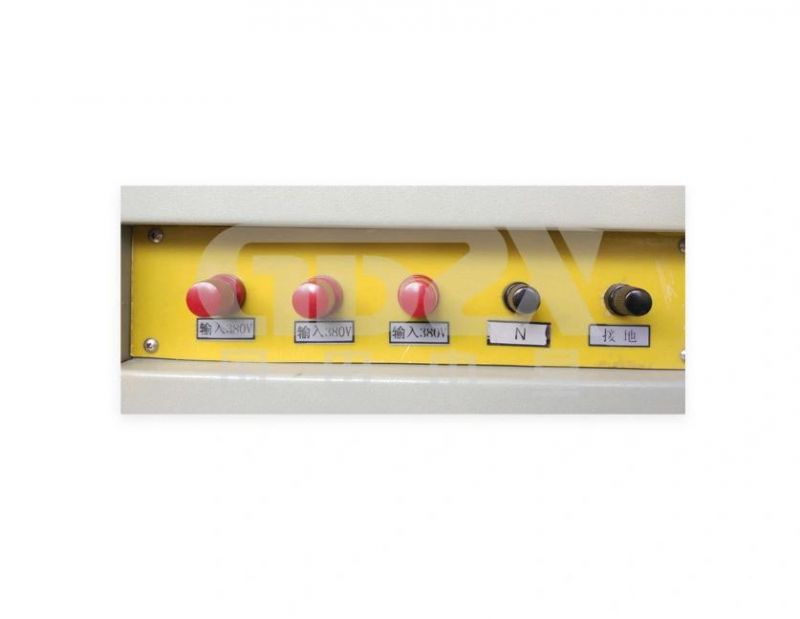

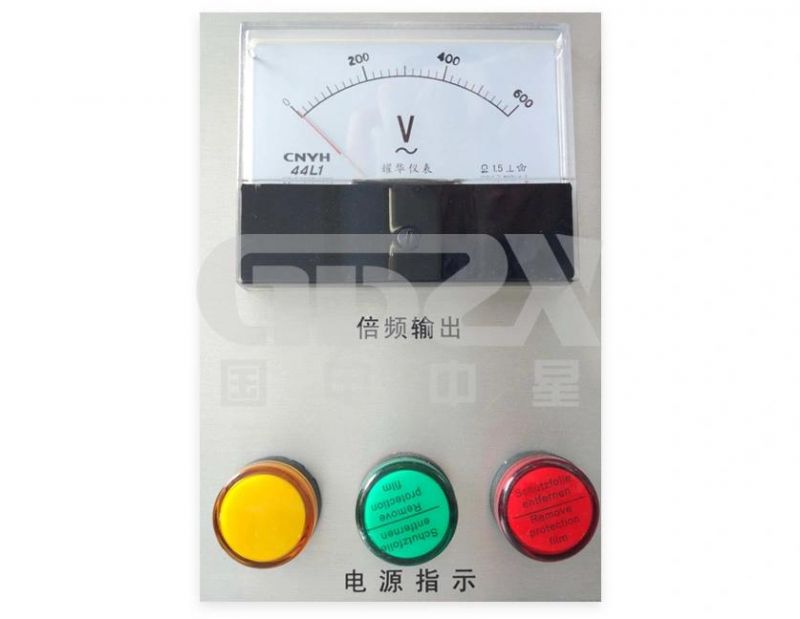

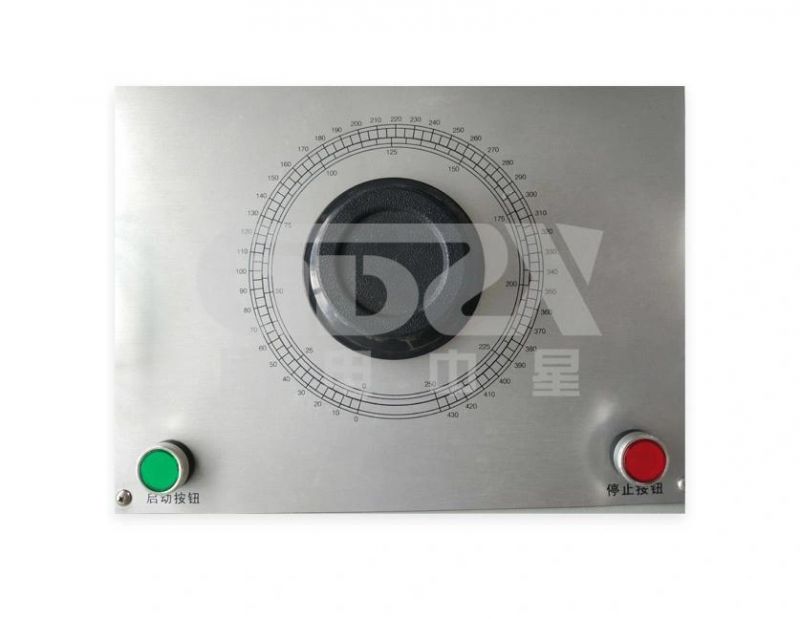

 Product pictures



Company introduction

    Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.









Service and Warranty



Service

* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.

* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user's questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others. Warranty* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.* Our products are guaranteed with one year warranty and life-long tech support.* Provide solutions within 24 hours when there is problems feedback from customer.

PACKING AND SHIPPING

(1)We will ship products within 8-20 working days after the receipt of confirmation of your payment.

(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.(5)After shipping, we will remain attentive till goods well received. If you need detailed specification, please feel free to contact us.  Test cases
