Digital Type Spark Tester for Wire and Cable, China Manufacturer Cable and Wire Spark Tester Equipment~
Alpha Technical Industrial Co., Ltd.- After-sales Service：Available
- Warranty：One Year
- Connectors：RJ45
- Test Mode：Instant Test
- Usage：Network Cable Tester, HDMI Cable Tester, Audio Cable Tester, Coaxial Cable Tester, Digital Cable Tester
- Test Region：Forming Cable
Base Info
- Model NO.：WLT
- Cable Type：Shielded
- Power：Electricity
- Certification：CE, RoHS
- Customized：Customized
- Product Name：Cable AC Spark Tester
- Model：St-25at
- Voltage Output：2.0-25kv
- Detection Speed, Max：350m,Min
- Detected Wire Outside Diameter：Max100mm
- Dectection Resolution：0.05s
- Transport Package：Wooden Cases
- Specification：Customized
- Trademark：Alpha
- Origin：China Jiangsu
- HS Code：8456301090
- Production Capacity：5000set,Year
Description
Related Machine
DC Spark Tester

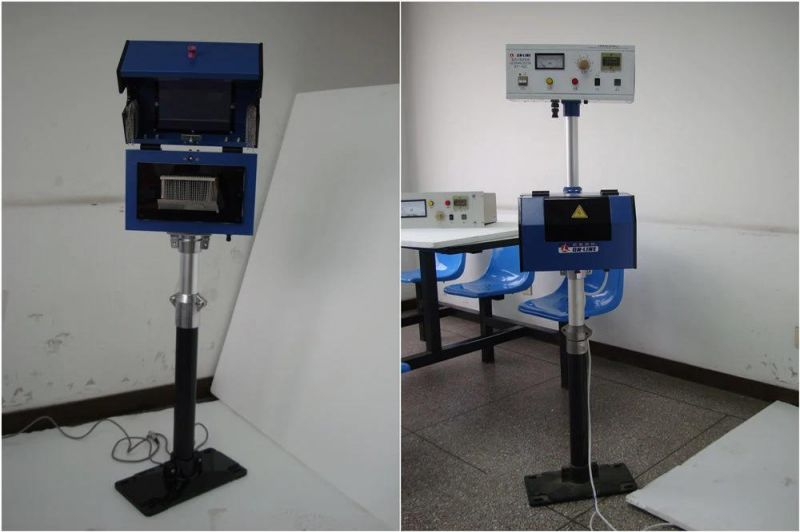

ST-15D DC Spark Tester is a useful tool for detection of surface damage as well as for spark test for wire and cable with a diameter below 10mm. The DC high voltage tester recommended internationally is characterized by advanced design, new construction, steady voltage output, high sensitivity, adaptability, easy operation, versatile mounting, safety and reliability. It may be used for on-line testing in combination with a pair twister or an extruder as well as for intermediate testing and testing for finished products.

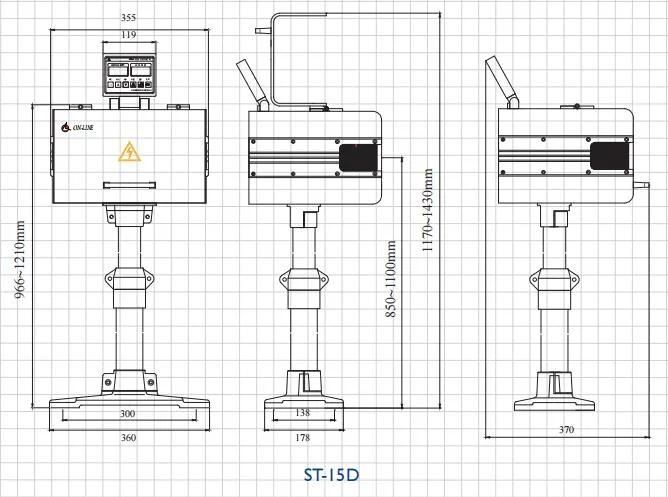

The ST-15D compact integrated tester of which the probe ,console display and support make one block, features compact size and easy mounting. It is used mainly for on-line testing in an extruding line with
non-centralized control and in combination with a pair twister.
| Type | ST-15D |
| Voltage output | DC 0-15000V |
| Effective test voltage | DC 500-15000V |
| AC pulse ratio | <5% |
| Voltage stability | The power supply voltage fluctuates by ±15%, and the output voltage remains unchanged |
| Breakdown sensitivity | <600μA |
| Steady-state short-circuit current | 3-4mA |
| Max.frequency of breakdown counting | 10times/sec |
| Max.diameter of the tested wire | 10mm |
| Max.moving speed of the tested wire | 2800m/min |
Operational conditions
line voltage: AC220V±15%
Power frequency: 50±2Hz
Power input: 50VA
Ambient temperatures: -10~45ºC
Relative humidity<85% (without condensed water)
Breakdown signal
Mode of operation:Continuous
Auto mode:Audio/visual alarm and breakdown counting
Manual mode:Audio/visual alarm, breakdown counting
and control signal output
Safety interlock
In order to ensure safety for operators, the probe is
provided with an interlock switch and a discharge rod.
When the front hood is opened, the high voltage is cut off first, then the discharge rod touches the electrode section to discharge the remaining electricity.

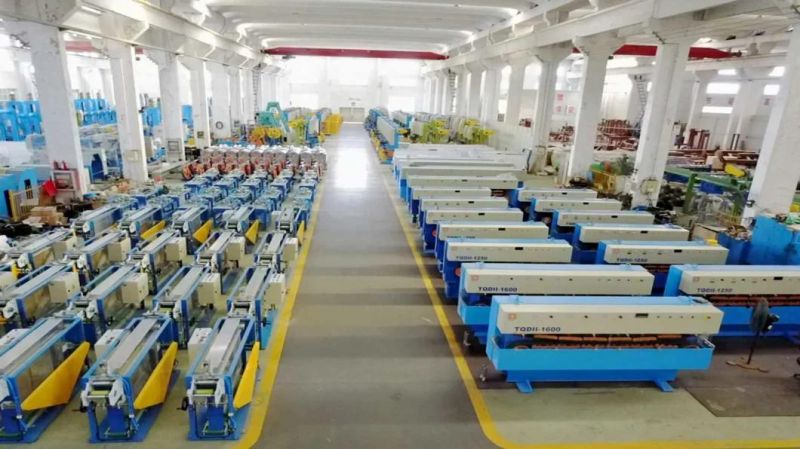

Our Company
Alpha Technical Industrial Co.,Ltd is a collection of scientific research and development and production of wire and cable equipment and a variety of efficient energy-saving extrusion production line of key enterprises, so far, the main product including wire and cable Insulation and Sheathing production Line, TQD series Pneumatic Type belt Caterpillar, LF series Portal Type Pay-off, LSP series Portal Type Take-up, Various Wire Accumulator, Capstan Haul-off, Pay-off & Take-up, Cooling Water Trough, and Optical Fiber Equipment, Communication Cable Equipment, Signal Cable Equipment.
Our company has a technical administration team who engages wire and cable equipment industrial more than twenty years, as well as experienced engineer and skilled workers, our honest business reputation and good sales achievement, win the trust from our domestic and overseas customers, the products are exported to United States, France, Spain, Portugal, New Zealand, Brazil, Mexico, Chile, South Africa, Zambia, Egypt, South Korea, Singapore, Indonesia, Thailand, etc.
Our team
Package
FAQ
− Q: What can we offer our customers?
A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.
− Q: How long is the machine warranty?
A: Warranty period of one year (since the completion of mechanical debugging at the buyer's factory)
− Q: Why do I choose your company?
A: We have more than 10 years of professional experience in the production of cable machinery, providing high-quality, high-security products.
We have an experienced team of skilled workers and engineers.
We can support overseas training engineers.
We can customize the design, to accept the customer's sample design.
We can provide customers with after-sales service.
Enable to give you a quotation for the cable spark testing machine, there is some necessary information that we need to know:
1. Cable diameter
2. Daily capacity
