• Model NO.：CMX-LL
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Needle
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC220V
• Oil Cylinder Position：Top
• Model Range 1：DN15-DN50
• Model Range 2：DN50-DN100
• Customization：Available
• Transport Package：Plywood Cases
• Specification：depends on size
• Trademark：CAMINIX
• Origin：China
• HS Code：9031809090
• Production Capacity：200 Sets,Year

Basic Info.

Model NO. CMX-LL Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Needle Control Computer Control Weight 500-1000Kg Power Source AC220V Oil Cylinder Position Top Model Range 1 DN15-DN50 Model Range 2 DN50-DN100 Customization Available Transport Package Plywood Cases Specification depends on size Trademark CAMINIX Origin China HS Code 9031809090 Production Capacity 200 Sets/Year

Product Description

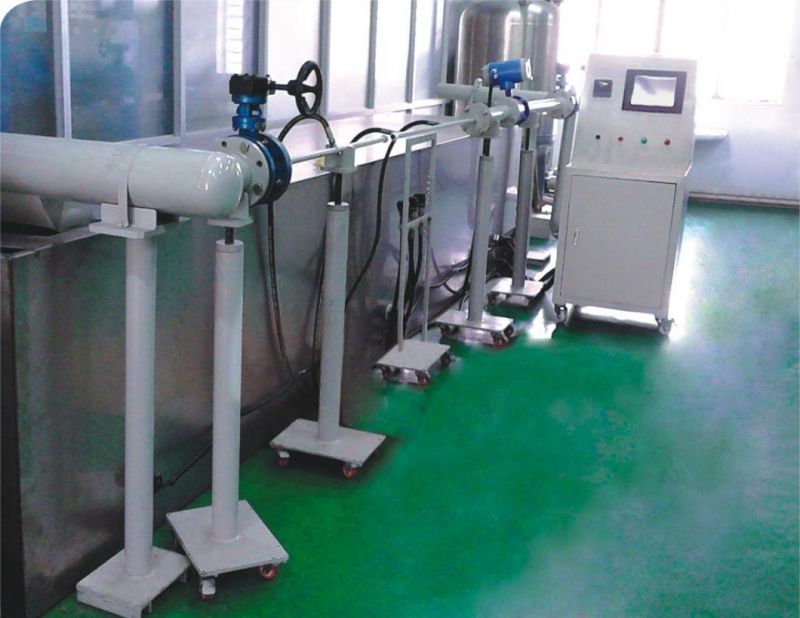

CAMINIX Gate Valve Globe Valve Angle Valve Ball Valve  FLOWRATE test Bench

Overview

This testing equipment can detect the life of valve cores of various applicable ball valves, gate valves, globe valves, faucets, angle valves, etc. In the design structure, refer to the standards in the valve industry, and improve the redundancy of the equipment as much as possible. It meets various types and standards of valve testing. According to the GB/T standard, the data of the automatic control motion state is directly read out by the touch screen, and the screen test data can be printed at any time. The test data accuracy rate is 100%, the movement is stable, and the clamping and disassembly of the tested product are simple and convenient. Wait. The maximization of benefits and the persistence and stability of maximum benefits are the business goals of every healthy enterprise.

Providing high product quality at competitive prices is an effective method, which requires cost-effective use of the resources owned by various businesses. The cost-effectiveness of valve testing means that, at the lowest cost and expense, it is possible to test not only a variety of valve types using a variety of standards, but ideally also valves of the same valve type but from different manufacturers. Only 100% inspection can ensure the reliable quality of every valve.


Test items

Ball valve, gate valve,valve and other valves DN15-DN50 DN50-DN100

Technical Details
Device model CMX-LL
Dimensions  Length (according to the size of the product)
Shape material PV plate material welding, shape anti-spray paint
Operating Voltage: 380V (standard) 50HZ, single-phase DC24V
Working Air Pressure:0.6-0.8Mpa
Working Water Pressure: 0.1-0.35 Mpa as per order
Pump: as per the flow rate
test station: single station
Tooling materials: SS

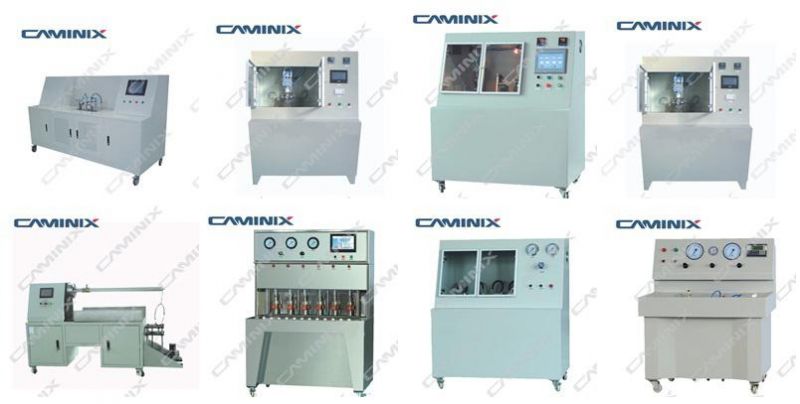

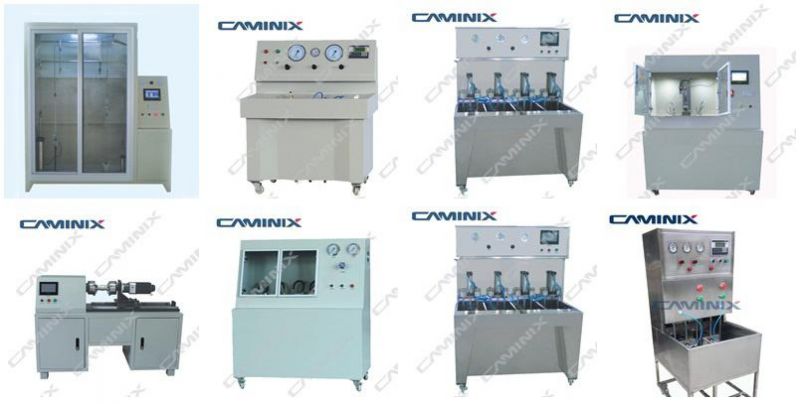

We also have other types of faucet testing machines . Please contact us for more infromation.
We can also customize the machine for you too if you send us the detailed request.
