• Model NO.：YT-ABST
• Indication Accuracy：0.1 Second
• Print：Built-in Thermal Printer
• Communication Interface：RS232
• Dimension：370(L)*330(W)*390(H) mm
• Net Weight：29kg
• Transport Package：Wooden Box
• Trademark：YANTE
• Origin：Hangzhou China
• HS Code：9024800000

Basic Info.

Model NO. YT-ABST Indication Accuracy 0.1 Second Print Built-in Thermal Printer Communication Interface RS232 Dimension 370(L)*330(W)*390(H) mm Net Weight 29kg Transport Package Wooden Box Trademark YANTE Origin Hangzhou China HS Code 9024800000

Product Description

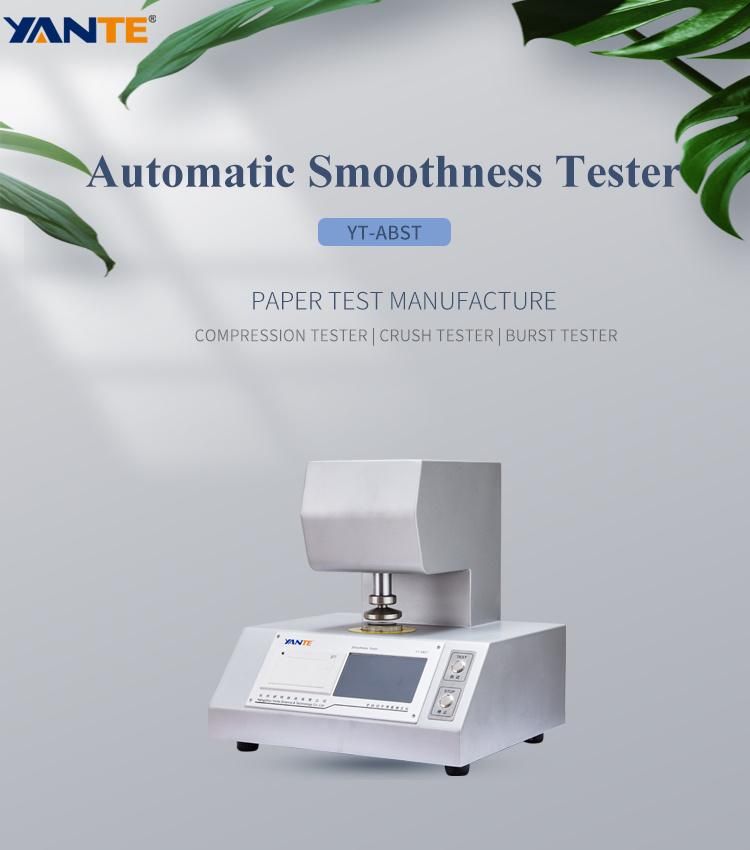

 YT-ABST

Automatic Smoothness Tester

The Auomatic Smoothness Tester is an intelligent paper and cardboard smoothness performance testing instrument developed based on the working principle of Bekk smoothness tester. It is an ideal testing equipment for papermaking, packaging, printing, commodity inspection, scientific research and other departments.



Paper, cardboard and other thin materials



1. One-key test, easy and convenient.
2. Remove weights and use stepping motor with force sensor to complete the automatic pressurization step.
3. ARM processor improves the response speed of the instrument, and calculates data more accurately and quickly
4. Standard RS232 interface, with computer software for communication (Purchased separately)

GB/T 456,JJG62,ISO 5627

No.	Parameter item	Technical index
1	Power Supply	AC220V±10% 50Hz (AC110V±10% 60Hz customized)
2	Working Environment	Temperature(10~35)ºC, Humidity≤ 85%
3	Display	480X272 dot matrix 5 inch color touch screen
4	Measuring Area	10±0.05 cm²
5	Measuring Range	(1-99999)s,divided into three gears(1-15)s,(15-300)s,(300-99999)s
6	Pressure	100±2kPa
7	Timing error	≤1s(Timing 1000s)
8	Print	Thermal printer
9	Communication Interface	RS232
10	Dimension	370×330×390 mm
11	Net Weight	29kg around
