Test Instrument

1400r Per Minute Digital Centrifugal Dryer for Diapers Testing Machine

Hangzhou Yante Science and Technology Co., Ltd.
  • Warranty:1 Year
  • Power Supply:AC 220V
  • Maximum Capacity:20000 Ml
  • Speed Range:900 ~ 1400 Rpm
  • Maximum Centrifugal Force:350 G
  • Inner Diameter:320 mm

Base Info

  • Model NO.:YT-LX1400
  • Speed Accuracy:10 Rpm , Min
  • Dehydration Time:1-99min You Can Preset Time
  • Dimension:430(L)*580(W)*620(H)mm
  • Net Weight:60kg
  • Transport Package:Wooden Box
  • Trademark:YANTE
  • Origin:Hangzhou China
  • HS Code:9024800000

Description

Basic Info.

Model NO. YT-LX1400 Speed Accuracy 10 Rpm / Min Dehydration Time 1-99min You Can Preset Time Dimension 430(L)*580(W)*620(H)mm Net Weight 60kg Transport Package Wooden Box Trademark YANTE Origin Hangzhou China HS Code 9024800000

Product Description

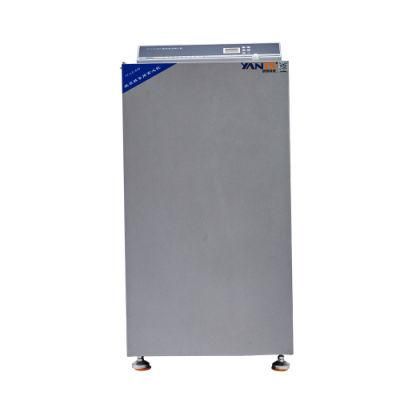

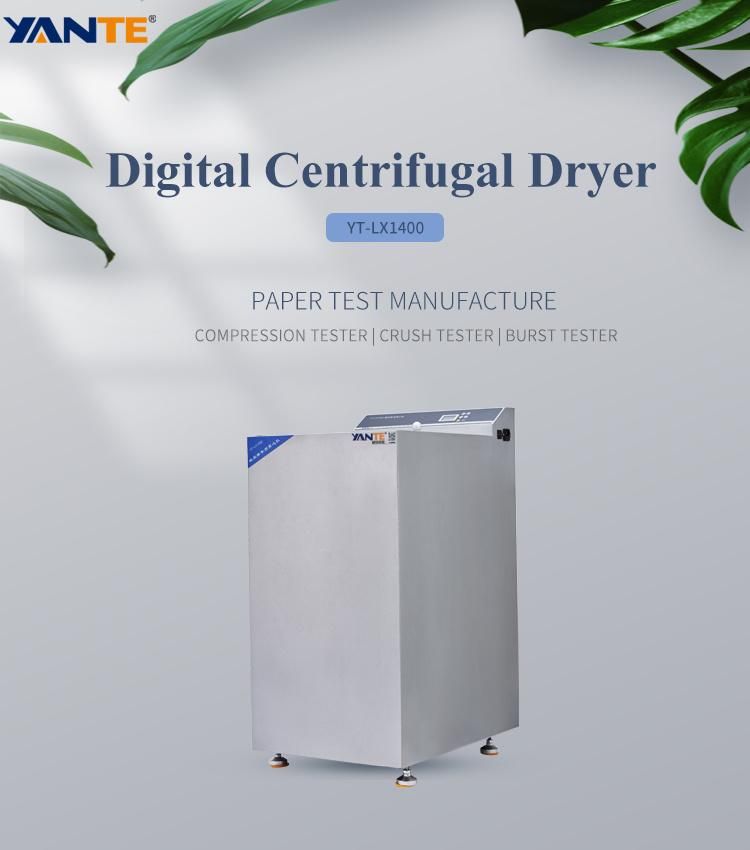

1400r Per Minute Digital Centrifugal Dryer for Diapers Testing Machine
Digital Centrifugal Dryer is mainly used for spin drying and dehydration of diapers. It is a professional dehydrator used in the diaper industry. It is also widely used in papermaking, textile, printing and dyeing industries and is an indispensable auxiliary device for its production sites and laboratories.


Application Range
Diapers, diapers, sanitary napkins, etc.
1400r Per Minute Digital Centrifugal Dryer for Diapers Testing Machine


Product Features
Low vibration, low noise, high dehydration efficiency
ARM processor, 128×64 graphic dot matrix liquid crystal display, Chinese display and easy operation
Real-time display of speed and centrifugal force
Adopting closed-loop AC motor speed control technology, convenient speed control and stable speed
With brake function, it can stop quickly, increase the accuracy of the experiment, and improve the efficiency of the experiment



Product Function
Diapers, diaper water retention test


Technical Parameters


No.Parameter itemTechnical index
1Power SupplyAC(220±10%)V, 50Hz
2Working EnvironmentTemperature(10~35)ºC, Humidity≤ 85%
3Maximum capacity20000ml
4Range of rotation(900~1400)rpm
5Maximum centrifugal force350g
6Inner cylinder diameter320mm
7Speed accuracy±10 RPM / min
8Time setting range (1~99)min
9Dimension450×600×920 mm
10Net Weight60kg Around
