• Model NO.：HM-YDQ
• Unload Voltage %：<=6
• Wavefore Error %：<3
• Product Name：Hipot Testing Transformer
• Standard：IEC
• Certificate：CE, ISO, SGS
• Model Name：High Voltage Test Set
• Transport Package：Wooden Box with Foam Inside
• Specification：300*400*220
• Trademark：hmdq
• Origin：Hubei, China(Mainland)
• HS Code：9030332000
• Production Capacity：500sets,Month

Basic Info.

Model NO. HM-YDQ Unload Voltage % <=6 Wavefore Error % <3 Product Name Hipot Testing Transformer Standard IEC Certificate CE, ISO, SGS Model Name High Voltage Test Set Transport Package Wooden Box with Foam Inside Specification 300*400*220 Trademark hmdq Origin Hubei, China(Mainland) HS Code 9030332000 Production Capacity 500sets/Month

Product Description

AC DC Automatic Hipot Tester Equipment High Voltage Hv Test Set Dielectric Strength Testing Transformer machine

I. Summary

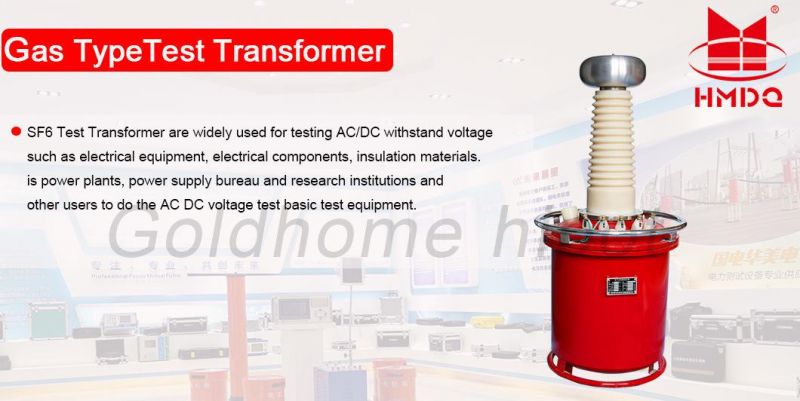

SF6 Gas Type High Voltage Test Device are widely used for testing AC/DC withstand voltage such as electrical equipment, electrical components, insulation materials. This series of test transformer has the advantages of small size, light weight, compact structure, strong universality etc.

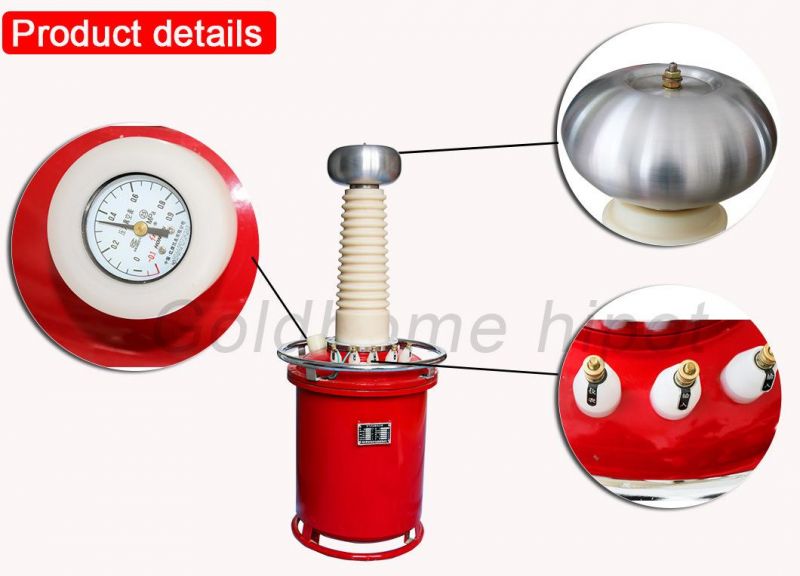

II. Advantage1.HV bushing was first time made
2.Between the bushing and the gas tank is completely isolated, and all connection parts adopted imported "O" type sealing ring seal, so we completely solve the common problems of transformer leakage.
3.Sleeping core type design, effectively improve seismic resistance.
4.All products're passed through 1.1 times induction withstand voltage testing.
5.Pure SF6 insulating medium.
6. HV & LV cables are made by high strength polyester, oxygen free copper enameled wires.
7.The core was adopted with new WISCO,two silicon cold rolled silicon steel strip .

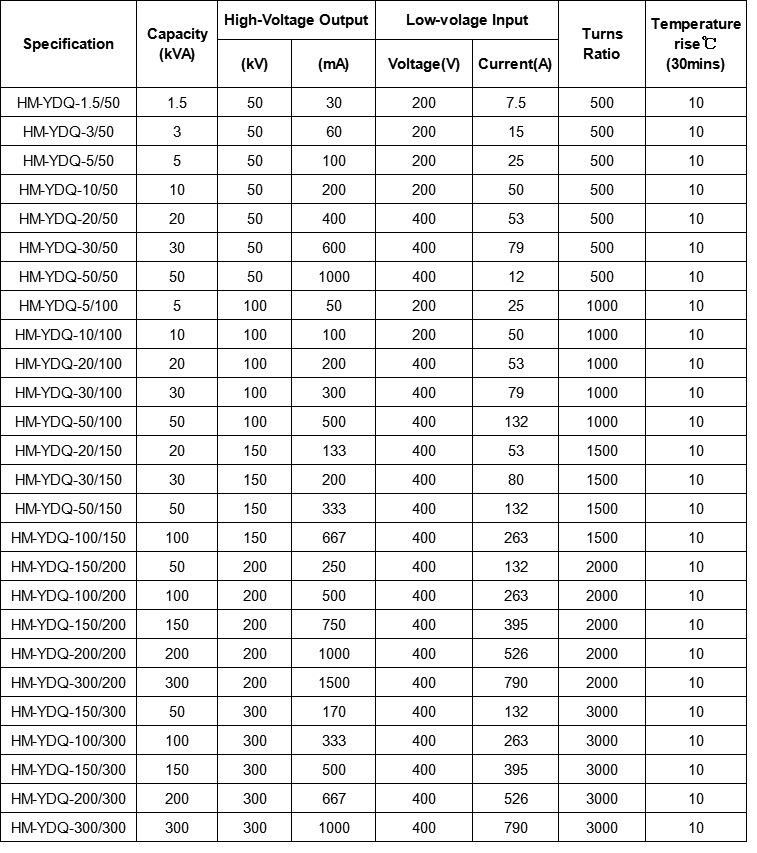

III. Product Parameter of SF6 Gas Type High Voltage Test Device
