• Model NO.：GD-0754
• Warranty Period：1 Year
• Transport Package：Packed in Container
• Specification：Refer to the specifications
• Trademark：GOLD
• Origin：Chongqing, China
• HS Code：9031809090
• Production Capacity：10000 Sets,Month

Basic Info.

Model NO. GD-0754 Warranty Period 1 Year Transport Package Packed in Container Specification Refer to the specifications Trademark GOLD Origin Chongqing, China HS Code 9031809090 Production Capacity 10000 Sets/Month

Product Description

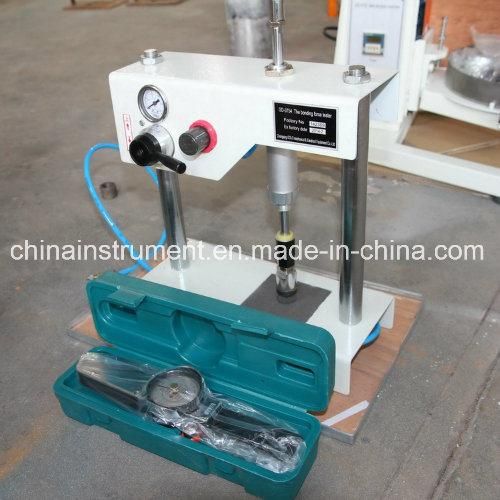

GD-0754 ASTM D3910 Emulsified Asphalt Slurry Seal Bond Force Tester, Cohesion Tester



Introduction:

1. GD-0754 ASTM D3910 Emulsified Asphalt Slurry Seal Bond Force Tester, Cohesion Tester is designed and made as per T0754 "Emulsified Asphalt Slurry Seal Mixture Set and Cure Time Test" in the Industry Standard JTJ052 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering. It is used to determine cohesion between emulsion and aggregate, so that to decide when the highway can be used after slurry seal construction.
2. GD-0754 ASTM D3910 Emulsified Asphalt Slurry Seal Bond Force Tester, Cohesion Tester is a key instrument used in slurry seal mixture ratio design.
3. GD-0754 ASTM D3910 Emulsified Asphalt Slurry Seal Bond Force Tester, Cohesion Tester is portable. It can be used in laboratory or at field. It has been widely used in construction companies and scientific research institutes to determine cohesion between emulsified asphalt and aggregates.

Operation condition:

1. GD-0754 ASTM D3910 Emulsified Asphalt Slurry Seal Bond Force Tester, Cohesion Tester should be placed on a stable workbench;
2. Power supply: AC220V±10%, 50 Hz;
3. GD-0754 ASTM D3910 Emulsified Asphalt Slurry Seal Bond Force Tester, Cohesion Tester should be finely grounded;


Parameters:

1. Diameter of rubber gasket: φ 28.6 mm;
2. Thickness of rubber gasket: 6.4 mm;
3. Hardness of rubber gasket: 60;
4. Maximum pressure: 1 MPa;
5. Round test mold: φ60mmX6mm; φ60mmX10mm;
6. Spanner: 0-5N•m;


Packing List:

No.	Name	Unit	Quantity	Remark
1	Main unit	Piece	1
2	Round test mold (Thickness 6 mm, 10 mm)	Piece	3 for each
3	Spanner (0 -5 N ·m)	Piece	1
4	Spanner sheath	Piece	1
5	Connection tube	Piece	1
6	Reducing joint	Piece	1
7	Power supply wire (AC 250 V 6 A)	Piece	1
8	Fuse 3 A (Ф5 × 20)	Piece	2
