• Model NO.：GDYJ-502A
• Data Updating Function：Yes
• Data Storage：100 Groups
• Power Supply：220V, 50Hz
• Warranty Period：1 Year
• Transport Package：Packed in Container
• Specification：70*40*55cm, 55kg
• Trademark：GOLD
• Origin：Chongqing, China
• HS Code：9031809090
• Production Capacity：10000 Sets,Month

Basic Info.

Model NO. GDYJ-502A Data Updating Function Yes Data Storage 100 Groups Power Supply 220V, 50Hz Warranty Period 1 Year Transport Package Packed in Container Specification 70*40*55cm, 55kg Trademark GOLD Origin Chongqing, China HS Code 9031809090 Production Capacity 10000 Sets/Month

Product Description

GDYJ-502A ASTM D877 Dielectric Oil Dielectric Strength Tester, 80kV Insulating Oil Dielectric Strength Tester


Introduction:

1. GDYJ-502A ASTM D877 Dielectric Oil Dielectric Strength Tester, 80kV Insulating Oil Dielectric Strength Tester is improved on basis of GDYJ-502, GDYJ-502A it has temperature detection function.
2. All the selection can be done by touch pad with color LCD.
3. With 8 Kinds of test mode as optional;

Specifications:

No.	Item Name	ASTM D877 Dielectric Oil Dielectric Strength Tester, 80kV Insulating Oil Dielectric Strength Tester
1	Output voltage	AC 0V~80KV
2	Rate of voltage rise	0.5kv/s±5%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%
3	Max test times setting for user-defined mode	9
4	Stir time setting for user-defined mode	0~999s
5	Waiting time setting for user-defined mode	0~999s
6	Test error	3%RDG+0.3%FS
7	Display	256´128 LCD
8	Maximum storage capacity	100 groups of test data
9	Power supply	AC220V±10%, 50Hz/60Hz
10	Working environment	0-50ºC, ≤80%RH
11	Size	550 mm*500mm*580mm
12	Weight	38kg

  Functions:

1. Breakdown test of user-defined;
2. Proof test;
3. IEC156/IS6792/BS5874;
4. ASTM D1816 standard test;
5. ASTM D877 standard test;
6. 5 minutes standard test;
7. Manual test;
8. Temperature measurement;
9. Calibration interface for customers;
10. Unloading data to PC and making word report automatically;
11. Result print;

Packing List:

No.	Name	Quantity
1	GDYJ-502 ASTM D877 Dielectric Oil Dielectric Strength Tester, 80kV Insulating Oil Dielectric Strength Tester	1 set
2	Power line	1 pc
3	Grounding line	1 pc
4	Test vessel	1 pc
5	Electrodes Mushroom, Flat and Spherical type	3 pairs
6	Feeler gauge 1mm,2mm,2.5mm,4mm	4 pcs
7	Insulation cover	1 pair
8	Stirrer	1 pair
9	Insulation glue	1 pc
10	High voltage column	1 pair
11	USB-RS232 connection line	1 pc
12	Thermal print paper	2 rolls
13	Fuse	5 pcs
14	Instruction manual	1 pc
15	disk	1 pc
16	Test report	1 pc
17	Pass certificate	1 pc

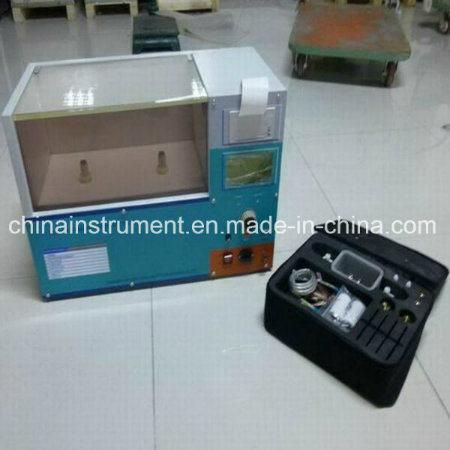

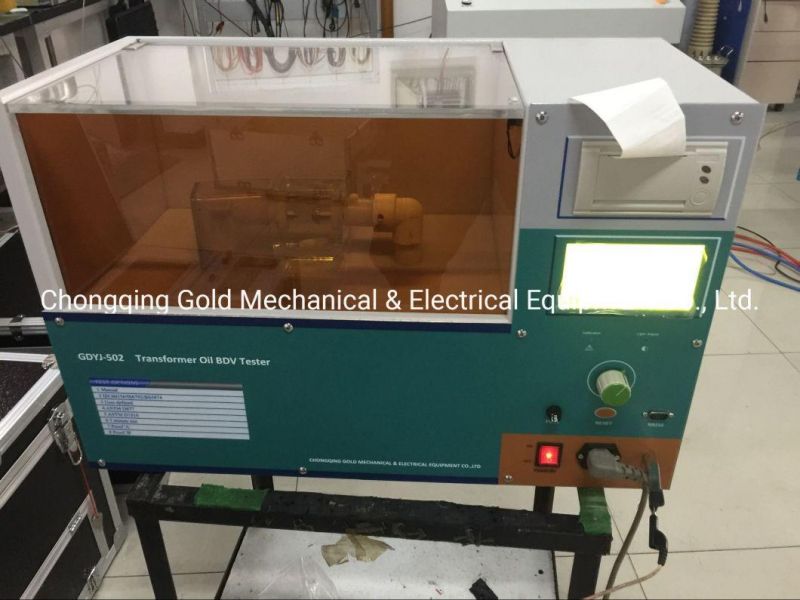

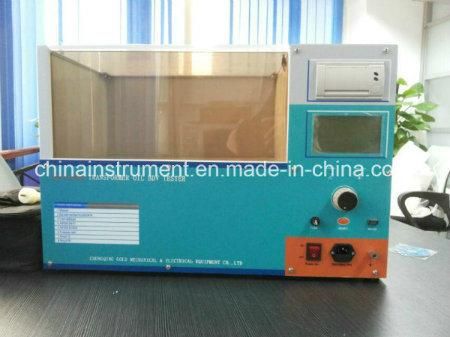

Real Pictures:



Our Service:
Presell Service:


After-sale Service:
